JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.210A AT TRANSMISSION ASSYFIG.214A AT OIL PUMPFIG.220A AT PLANETARY GEARFIG.222A AT OUTPUT SHAFTFIG.228A AT FORWARD CLUTCHFIG.230A AT 2ND BRAKEFIG.234A AT 1ST/REVERSE BRAKEFIG.240A AT TRANSMISSION CASEFIG.244A AT VALVEFIG.246A AT PARKING LOCKFIG.248A AT OIL HOSEFIG.260A GEAR SHIFT CONTROLFIG.267A PROPELLER SHAFTFIG.272A FRONT DIFFERENTIAL GEARFIG.282A REAR DIFFERENTIAL GEARFIG.290A TRANSFER ASSYFIG.291A TRANSFER GEARFIG.295A TRANSFER GEAR SHIFT CONTROLFIG.298A TRANSFER CASE

FIG.220A AT PLANETARY GEAR

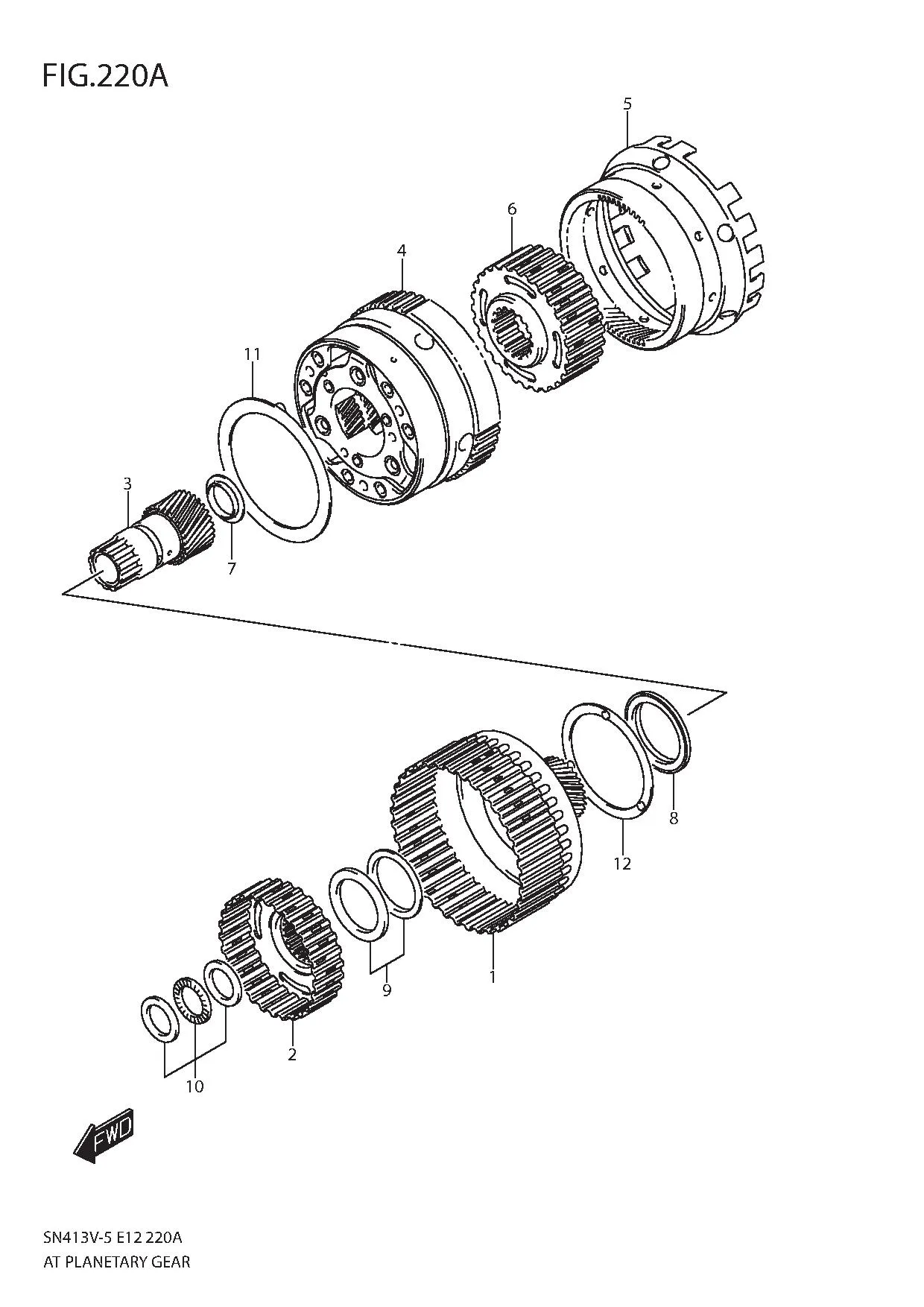

FIG.220A AT PLANETARY GEAR
No No. Part Description Qty Price Per Pcs Remarks
1 24910-66H11-000 GEAR, FRONT PLANETARY SUN 1 Rp2.739.000
2 24920-66H30-000 HUB, FORWARD CLUTCH 1 Rp874.000
3 24930-66H11-000 GEAR, REAR PLANETARY SUN 1 Rp909.000
4 24940-66H11-000 GEAR ASSY, PLANETARY 1 Rp11.272.500
5 24950-66H10-000 GEAR, PLANETARY RING 1 Rp1.909.000
6 24960-66H11-000 HUB, DIRECT CLUTCH 1 Rp999.500
7 24966-79C10-000 RACE, THRUST BEARING NO.5 1 Rp44.500
8 24967-79C10-000 BEARING, THRUST NEEDLE NO.4 1 Rp191.500
9 24971-79CT0-000 BEARING SET, THRUST 1 Rp236.500
10 24974-79CT0-000 BEARING SET, INTERMEDIATE SHAFT 1 Rp195.000
11 24976-66H11-000 WASHER, PLANETARY CARRIER 1 Rp62.000
12 24977-77R10-000
SUB: 24977-79C10-000		 WASHER, CLUTCH DRUM THRUST 1 Rp41.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
