JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.210A AT TRANSMISSION ASSYFIG.214A AT OIL PUMPFIG.220A AT PLANETARY GEARFIG.222A AT OUTPUT SHAFTFIG.228A AT FORWARD CLUTCHFIG.230A AT 2ND BRAKEFIG.234A AT 1ST/REVERSE BRAKEFIG.240A AT TRANSMISSION CASEFIG.244A AT VALVEFIG.246A AT PARKING LOCKFIG.248A AT OIL HOSEFIG.260A GEAR SHIFT CONTROLFIG.267A PROPELLER SHAFTFIG.272A FRONT DIFFERENTIAL GEARFIG.282A REAR DIFFERENTIAL GEARFIG.290A TRANSFER ASSYFIG.291A TRANSFER GEARFIG.295A TRANSFER GEAR SHIFT CONTROLFIG.298A TRANSFER CASE

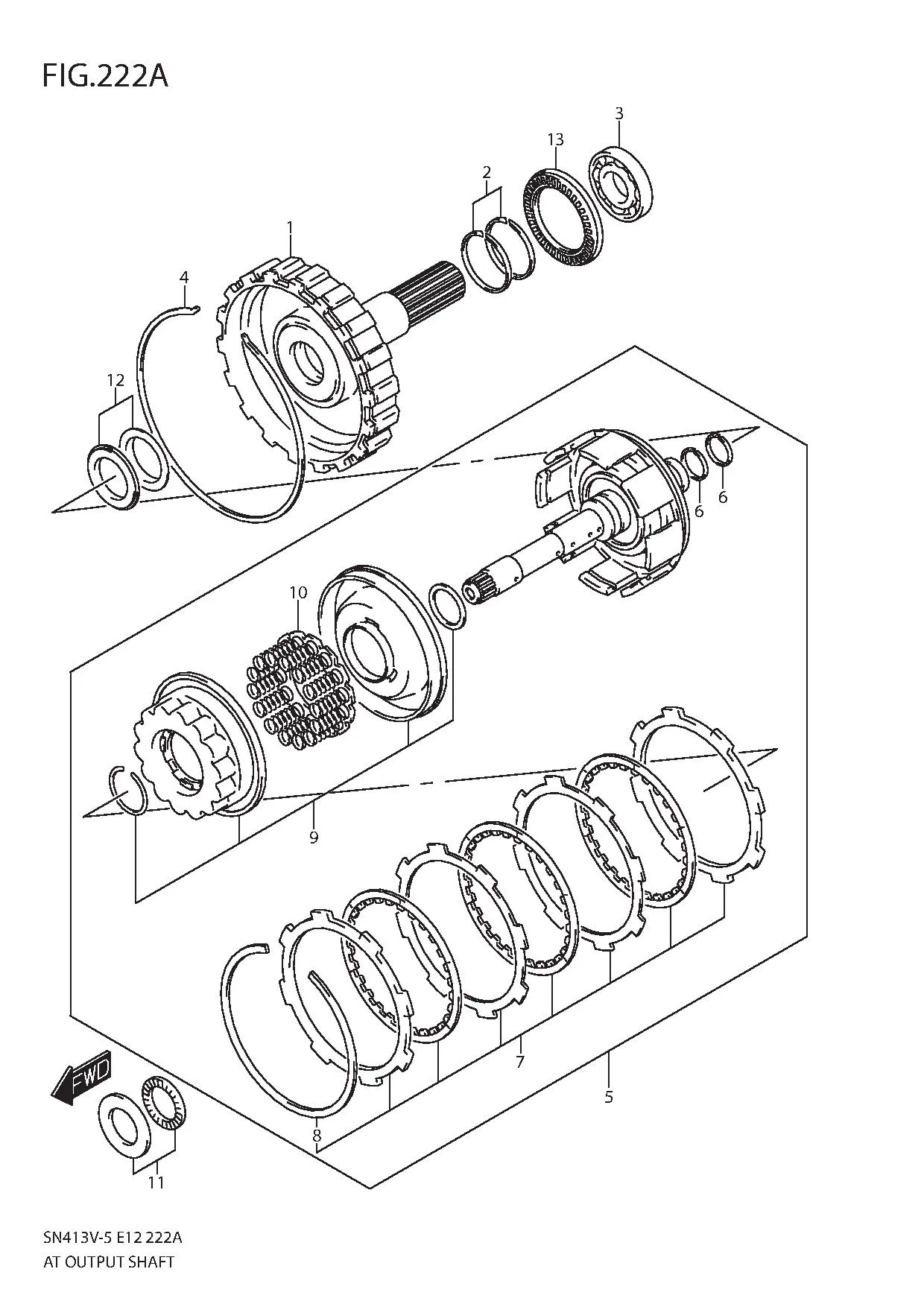

FIG.222A AT OUTPUT SHAFT

FIG.222A AT OUTPUT SHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 24120-76J11-000 SHAFT, OUTPUT 1 Rp4.878.000
2 24122-66H10-000 RING, PLANETARY OUTPUT SHAFT OIL SEAL 2 Rp90.500
3 24182-66H10-000 BEARING, OUTPUT SHAFT 1 Rp559.500
4 24129-66H30-000 CIRCLIP, PLANETARY RING GEAR 1 Rp140.000
5 26600-77RT0-000
SUB: 26600-76J11-000		 CLUTCH ASSY, DIRECT 1 Rp6.079.500
6 24161-79C10-000 •RING, INTERMEDIATE SHAFT OIL SEAL 2 Rp48.500
7 26621-76JT1-000 •DISC SET, DIRECT CLUTCH 1 Rp3.399.500
8 26619-66H10-000 ••CIRCLIP, DIRECT CLUTCH PLATE 1 Rp60.000
9 26622-66HT0-000 •PISTON SET, DIRECT CLUTCH 1 Rp932.000
10 26660-81A10-000 •SEAT ASSY, REAR CLUTCH RETURN SPRING 1 Rp213.500
11 24967-66HT0-000 BEARING SET, THRUST NO.6 1 Rp287.500
12 24971-66HT0-000 BEARING SET, THRUST NO.7 1 Rp269.500
13 24973-66HT0-000 BEARING SET, THRUST NO.8 1 Rp344.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
