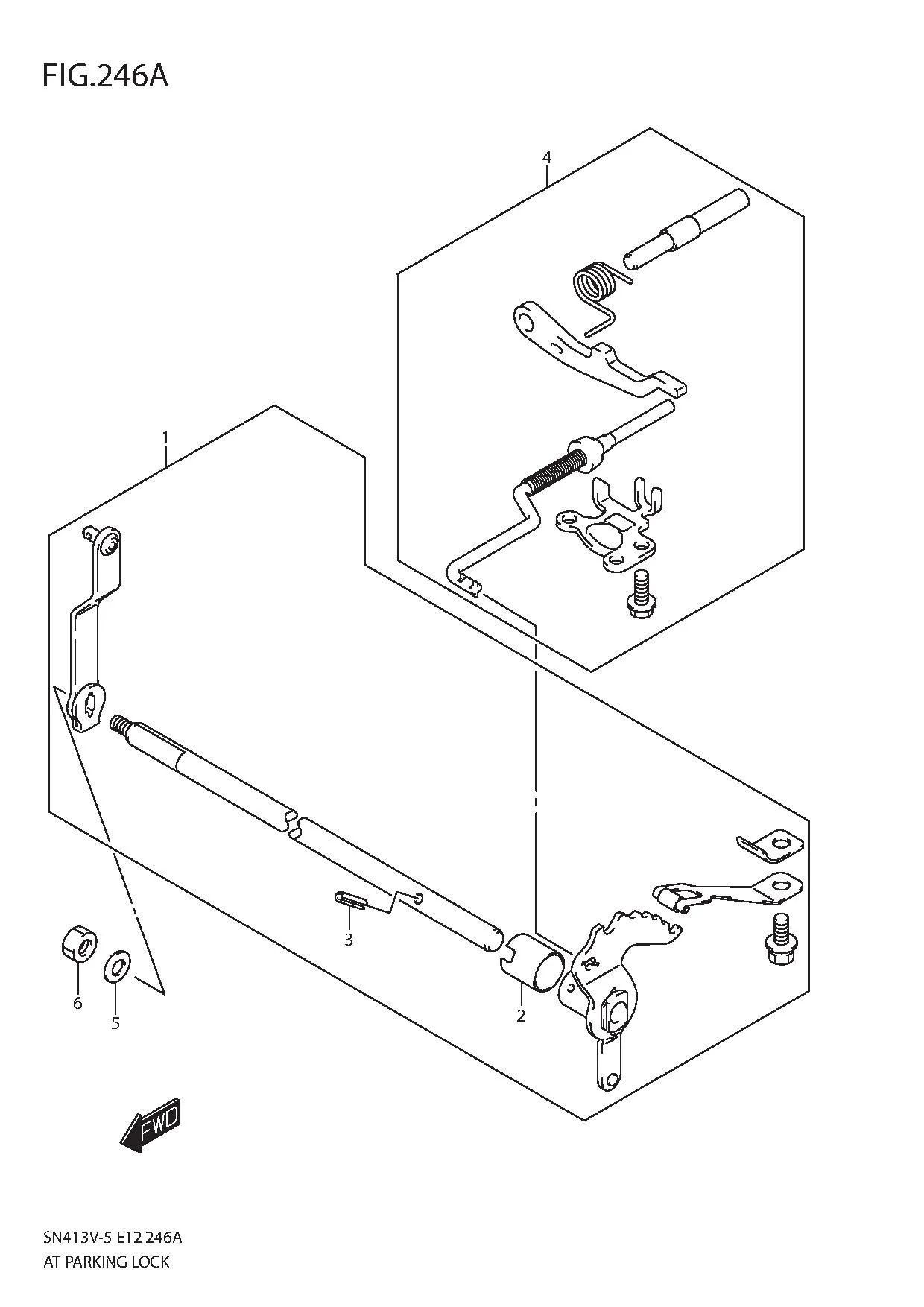

FIG.246A AT PARKING LOCK

FIG.246A AT PARKING LOCK
No No. Part Description Qty Price Per Pcs Remarks
1 25941-76JT0-000 SHAFT SET, MANUAL SELECT 1 Rp1.467.000
2 25912-57B00-000 •SPACER, MANUAL DETENT LEVER 1 Rp161.000
3 29898-57B00-000 •PIN, MANUAL DETENT LEVER 1 Rp87.000
4 25920-66HT0-000 PAWL SET, PARKING LOCK 1 Rp961.000
5 25952-78A10-000 WASHER, MANUAL DETENT LEVER 1 Rp26.500
6 25996-60G10-000 NUT, MANUAL SELECT LEVER 1 Rp48.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
