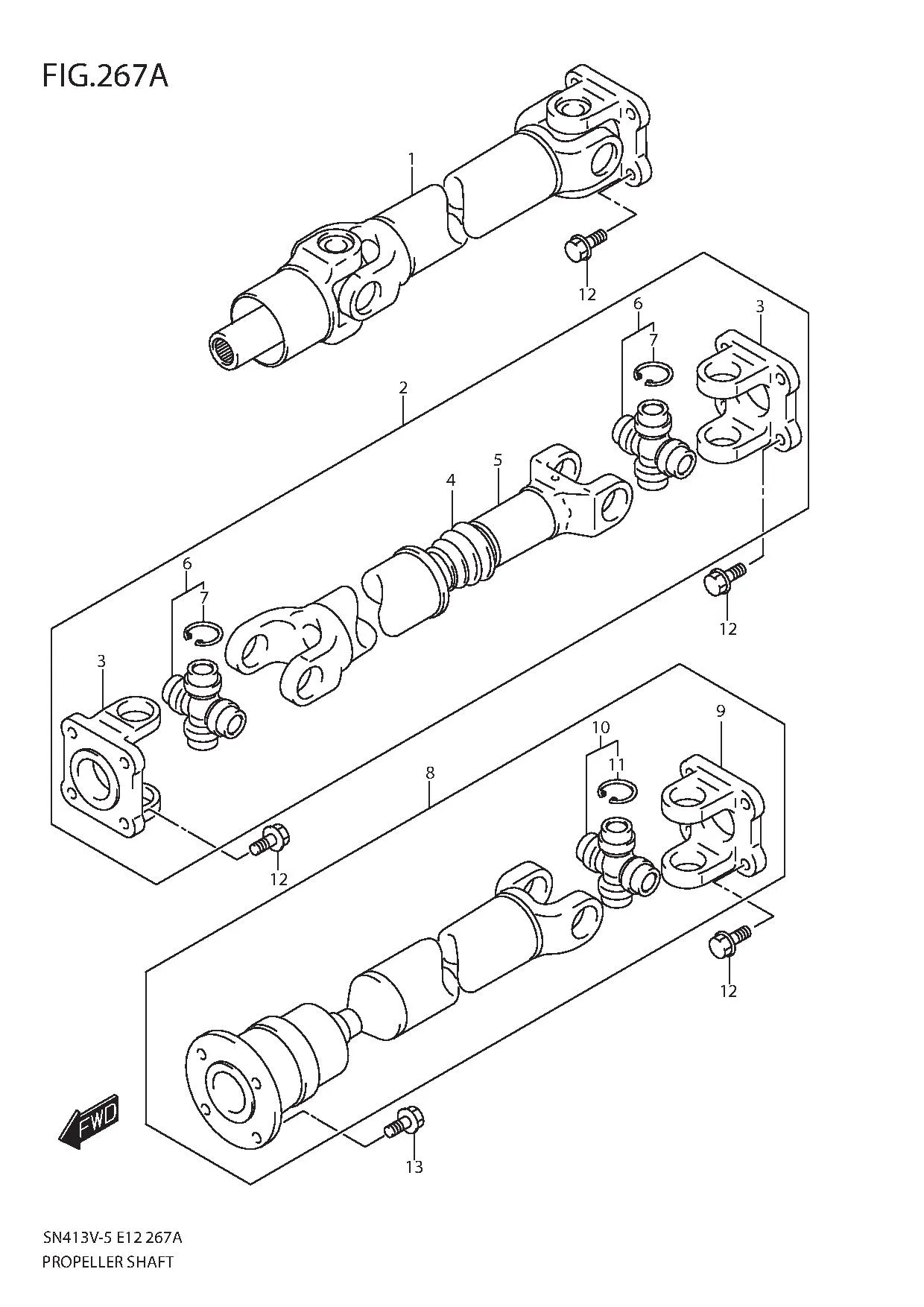

FIG.267A PROPELLER SHAFT

FIG.267A PROPELLER SHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 27101-76J02-000 SHAFT ASSY, PROPELLER NO.1 1 Rp4.806.500
2 27102-81A60-000 SHAFT ASSY, PROPELLER NO.2 1 Rp5.794.500
3 27131-56B00-000 •YOKE, CROSS JOINT FLANGE 2 Rp728.500
4 27153-77R00-000
SUB: 27153-83001-000		 •BOOT, PROPELLER SHAFT 1 Rp117.000
5 27180-83010-000 •YOKE, SLIDING 1 Rp966.000
6 27200-83813-000
SUB: 27200-83812-000		 •JOINT SET, UNIVERSAL 2 Rp636.500
7 51118-36213-000 ••STOP RING 8 Rp27.500
8 27103-84A00-000 SHAFT ASSY, PROPELLER NO.3 1 Rp6.998.500
9 27131-56B00-000 •YOKE, CROSS JOINT FLANGE 1 Rp728.500
10 27200-83813-000
SUB: 27200-83812-000		 •JOINT SET, UNIVERSAL 1 Rp636.500
11 51118-36213-000 ••STOP RING 4 Rp27.500
12 09112-10002-000 BOLT (10X25) 16 Rp30.500
13 09117-08079-000 BOLT (8X20) 4 Rp27.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
