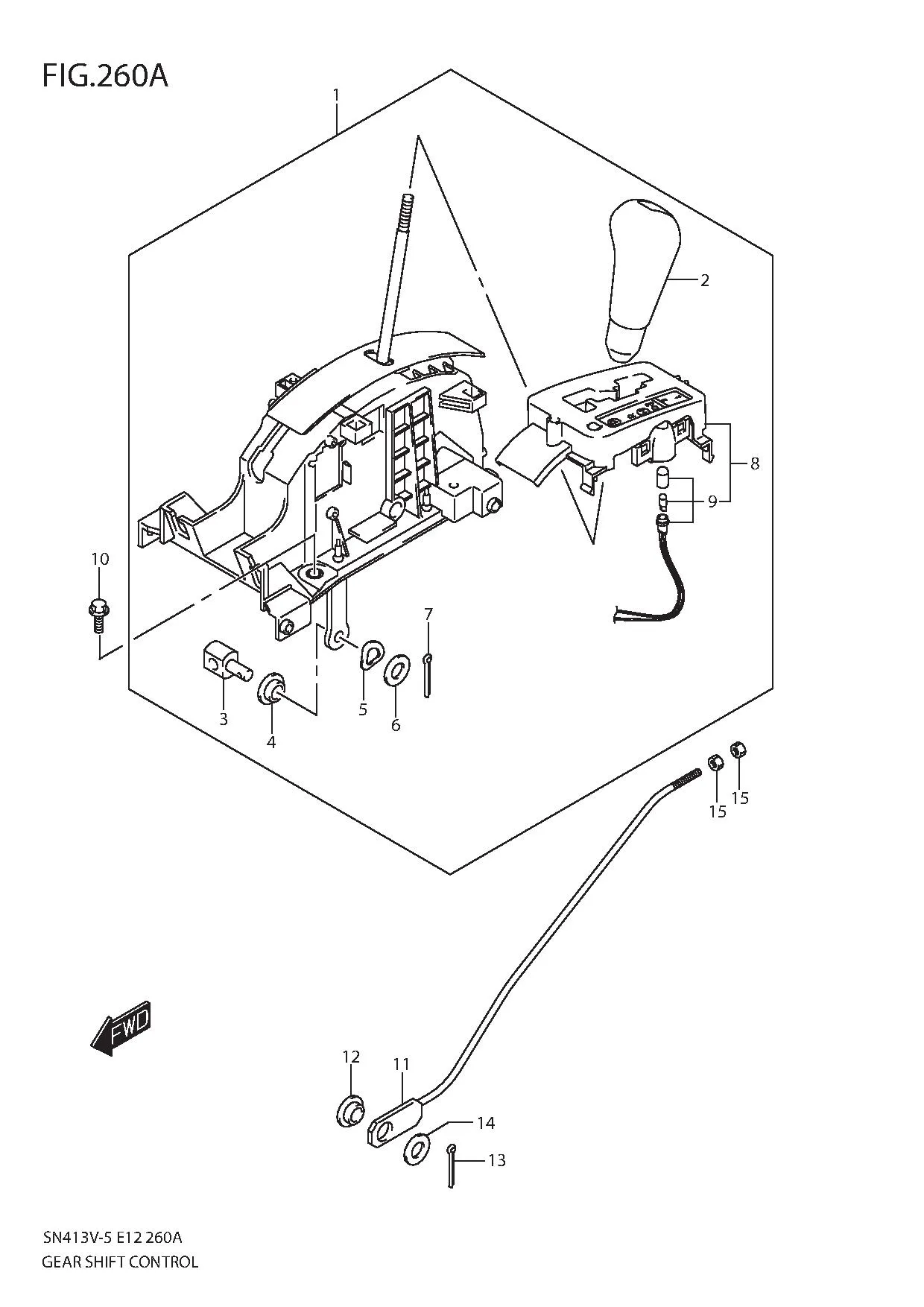

FIG.260A GEAR SHIFT CONTROL

FIG.260A GEAR SHIFT CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 28100-76JL2-ARG LEVER ASSY, SELECT 1 Rp4.351.000
2 28160-62J31-FCL
SUB: 28160-62J30-FCL		 •KNOB ASSY, SELECT LEVER 1 Rp412.000
3 28291-76J10-000 •JOINT, GEAR SELECT 1 Rp99.000
4 09305-08011-000 •BUSH 1 Rp15.000
5 09164-08002-000 •WASHER 1 Rp11.500
6 08322M0108A-000 •WASHER 1 Rp5.500
7 04111-2515A-000
SUB: 04111B2515AN000		 •PIN 1 Rp8.500
8 28150-76J70-ZCP •INDICTOR ASSY, SELECT (GRAY) 1 Rp1.217.000
9 28159-76J10-000 ••LAMP ASSY, INDICATOR 1 Rp175.000
10 DISCONTINUE
SUB: 09118-08165-000		 BOLT (8X25) 4 -
11 28260-76J11-000 ROD, SELECT 1 Rp180.500
12 09305-08011-000 BUSH 1 Rp15.000
13 09385-08007-000
SUB: 09385-08004-000		 CLIP 1 Rp16.500
14 08322M0108A-000 WASHER 1 Rp5.500
15 DISCONTINUE
SUB: 09140-06024-000		 NUT 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
