JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.210A AT TRANSMISSION ASSYFIG.214A AT OIL PUMPFIG.220A AT PLANETARY GEARFIG.222A AT OUTPUT SHAFTFIG.228A AT FORWARD CLUTCHFIG.230A AT 2ND BRAKEFIG.234A AT 1ST/REVERSE BRAKEFIG.240A AT TRANSMISSION CASEFIG.244A AT VALVEFIG.246A AT PARKING LOCKFIG.248A AT OIL HOSEFIG.260A GEAR SHIFT CONTROLFIG.267A PROPELLER SHAFTFIG.272A FRONT DIFFERENTIAL GEARFIG.282A REAR DIFFERENTIAL GEARFIG.290A TRANSFER ASSYFIG.291A TRANSFER GEARFIG.295A TRANSFER GEAR SHIFT CONTROLFIG.298A TRANSFER CASE

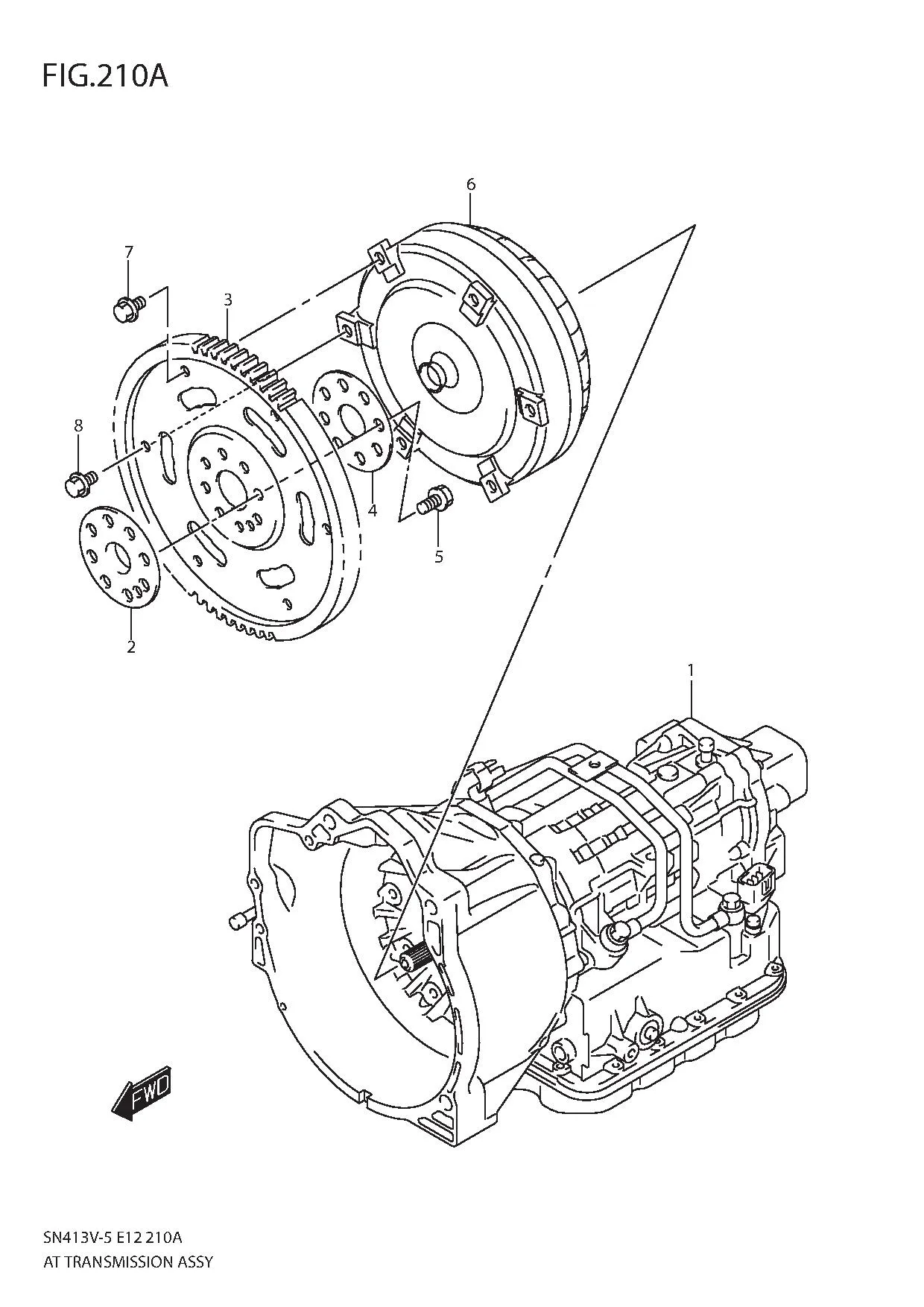

FIG.210A AT TRANSMISSION ASSY

FIG.210A AT TRANSMISSION ASSY
No No. Part Description Qty Price Per Pcs Remarks
1 20002-76J34-000 TRANSMISSION ASSY, AUTOMATIC 1 Rp77.959.000
2 22611-76J10-000 FLANGE, T/C DRIVE PLATE 1 Rp735.000
3 22620-76J10-000 PLATE, T/C DRIVE 1 Rp2.687.500
4 DISCONTINUE
SUB: 22631-69G10-000		 PLATE, T/C DRIVE REAR 1 -
5 09103-10440-000 BOLT (10X18.5) 8 Rp33.000
6 22710-76J30-000 CONVERTER, TORQUE 1 Rp16.007.500
7 09103-08507-000 BOLT (8X9.5) 5 Rp34.000
8 09103-08508-000 BOLT (8X9.5) 1 Rp35.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
