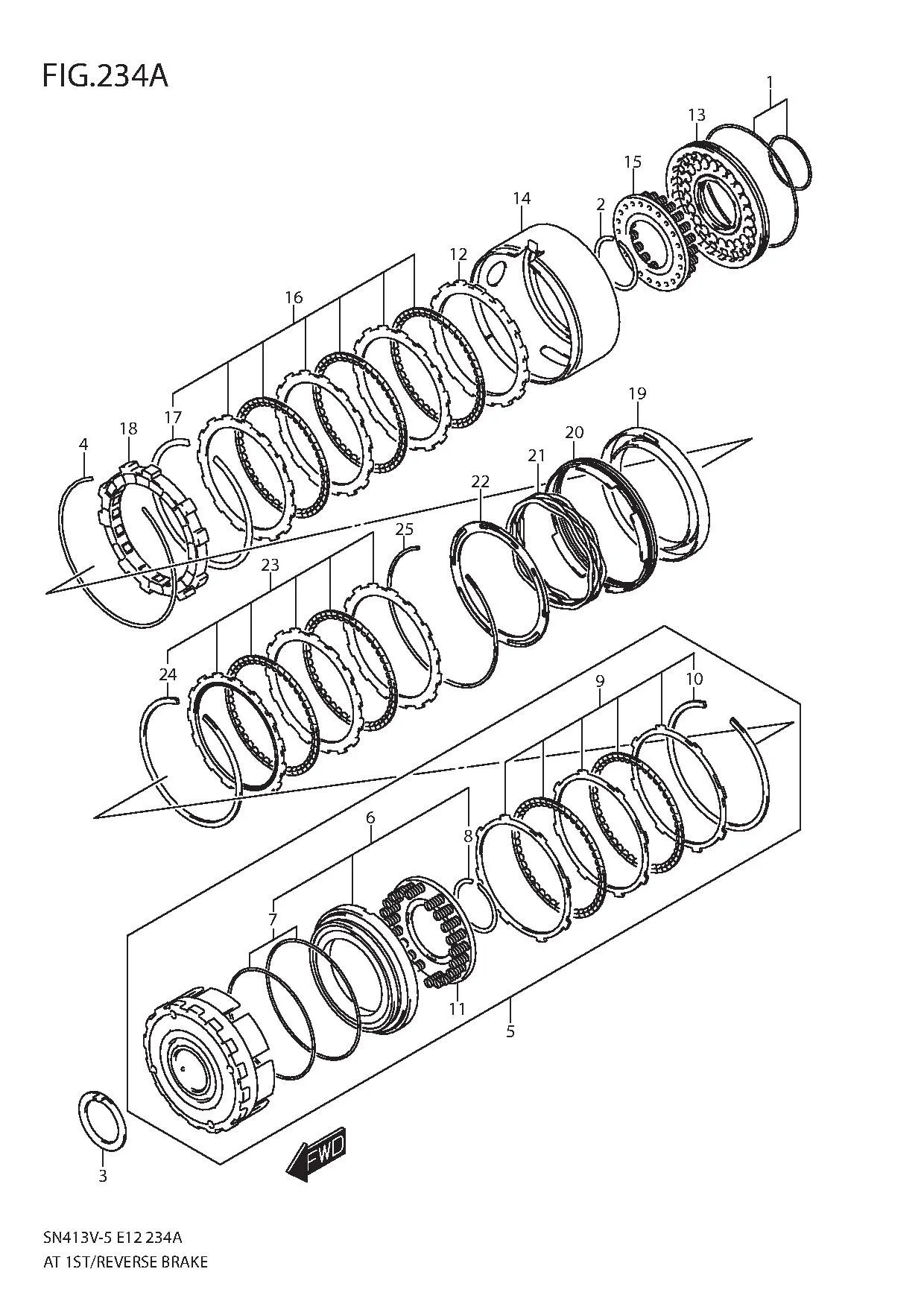

FIG.234A AT 1ST/REVERSE BRAKE

FIG.234A AT 1ST/REVERSE BRAKE
No No. Part Description Qty Price Per Pcs Remarks
1 26829-66HT0-000 O RING SET,1ST & REV BK PISTON 1 Rp121.000
2 26617-60G10-000 RING, FORWARD CLUTCH SNAP 1 Rp54.500
3 26637-66H10-000 WASHER, REV CLUTCH DRUM THRUST 1 Rp76.500
4 26779-66H10-000 CIRCLIP, ONE WAY CLUTCH 1 Rp83.000
5 26800-76J11-000 CLUTCH ASSY, REVERSE 1 Rp5.553.000
6 26862-66HT0-000 •PISTON SET 1 Rp772.000
7 26618-53JT0-000 ••O RING SET 1 Rp147.000
8 26648-75F10-000 ••RING 1 Rp53.000
9 26866-76JT0-000 •DISC SET 1 Rp1.963.000
10 26649-75F10-000 ••RING 1 Rp84.500
11 26863-66H10-000 •SPRING, RETURN 1 Rp227.000
12 26813-66H10-000 PLATE, BK BACKING 1 Rp398.000
13 26822-66H10-000 PISTON,1ST & REV BRAKE 1 Rp337.000
14 26832-76J11-000 TUBE,1ST & REV BRAKE 1 Rp478.500
15 26833-66H10-000 SPRING,1ST & REV BRAKE RETURN 1 Rp178.500
16 26836-76JT0-000 DISC SET, REV BRAKE 1 Rp1.881.000
17 26839-66H10-000 •CIRCLIP 1 Rp84.500
18 26851-66H10-000 CLUTCH, ONE WAY 1 Rp2.106.000
19 26771-66H10-000 DRUM, O/D BRAKE 1 Rp390.500
20 26772-66H10-000 PISTON, O/D BRAKE 1 Rp681.500
21 26773-66H10-000 SPRING, O/D BRAKE PLATE 1 Rp260.000
22 26775-66H10-000 SEAT, O/D BRAKE RETURN SPRING 1 Rp228.000
23 26776-77RT0-000
SUB: 26776-66HT0-000		 DISC SET, O/D BRAKE 1 Rp1.601.500
24 26779-66H30-000 •CIRCLIP 1 Rp63.000
25 26779-66H10-000 CIRCLIP, ONE WAY CLUTCH 1 Rp83.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
