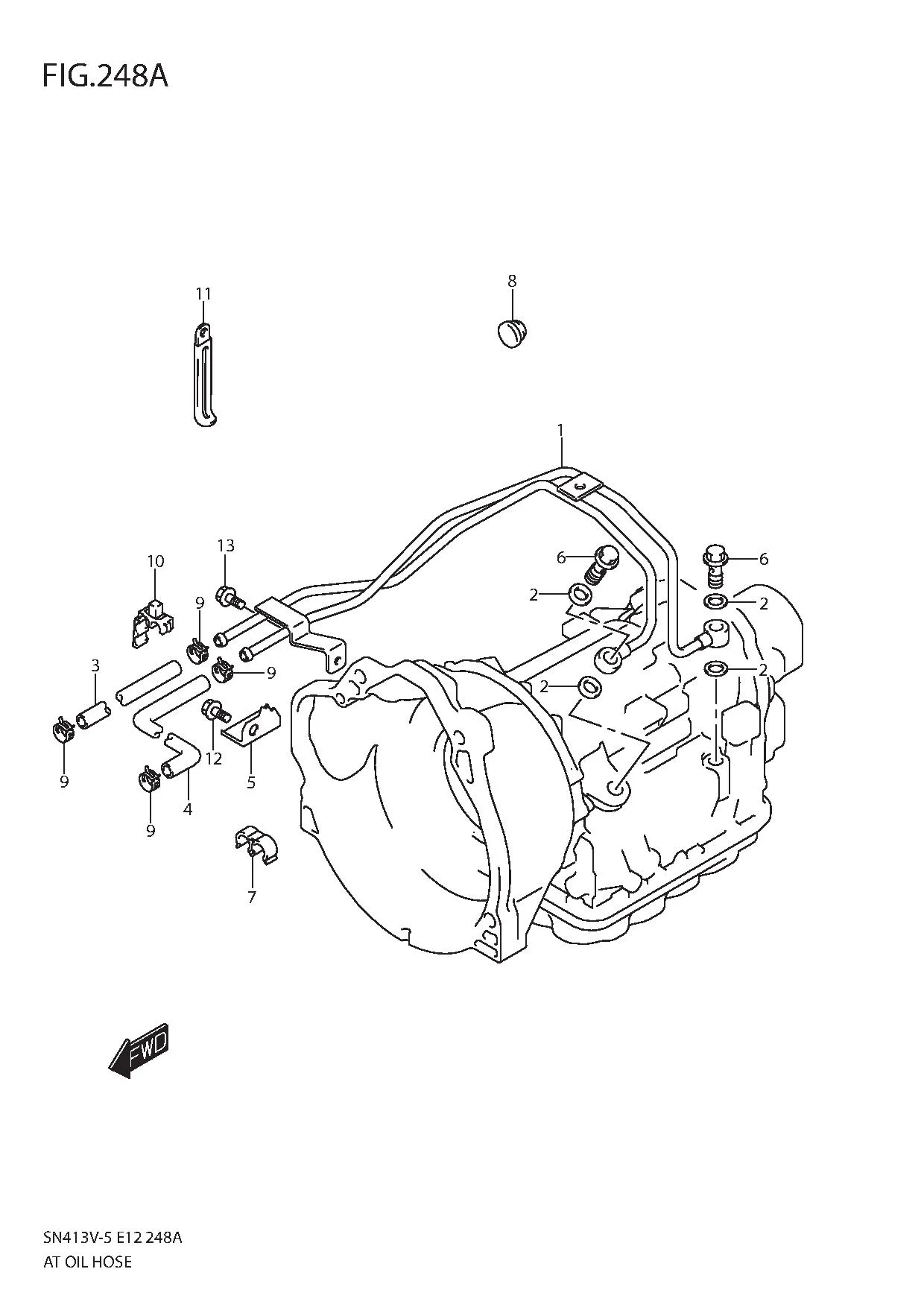

FIG.248A AT OIL HOSE

FIG.248A AT OIL HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 22910-76J30-000 PIPE, OIL 1 Rp904.500
2 22913-59J10-000 GASKET, OIL PIPE 4 Rp21.500
3 22931-81A30-000 HOSE, OIL NO.1 1 Rp537.000
4 22932-81A50-000 HOSE, OIL NO.2 1 Rp679.500
5 22934-81A10-000 BRACKET, OIL HOSE CLAMP 1 Rp75.500
6 22935-79J10-000 BOLT, OIL PIPE UNION 2 Rp74.000
7 22938-81A30-000 CLAMP, OIL HOSE NO.2 1 Rp33.000
8 09250-35005-000 CAP (OD:43.5) 1 Rp27.000
9 DISCONTINUE
SUB: 09401-15408-000		 CLIP 4 -
10 09403-14313-000 CLAMP 2 Rp26.500
11 DISCONTINUE
SUB: 09404-08419-000		 CLAMP (L:97) 1 -
12 01550-1020A-000 BOLT 1 Rp21.000
13 02162-0610A-000 SCREW 1 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
