JIMNY 2017

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.210A AT TRANSMISSION ASSYFIG.214A AT OIL PUMPFIG.220A AT PLANETARY GEARFIG.222A AT OUTPUT SHAFTFIG.228A AT FORWARD CLUTCHFIG.230A AT 2ND BRAKEFIG.234A AT 1ST/REVERSE BRAKEFIG.240A AT TRANSMISSION CASEFIG.244A AT VALVEFIG.246A AT PARKING LOCKFIG.248A AT OIL HOSEFIG.260A GEAR SHIFT CONTROLFIG.267A PROPELLER SHAFTFIG.272A FRONT DIFFERENTIAL GEARFIG.282A REAR DIFFERENTIAL GEARFIG.290A TRANSFER ASSYFIG.291A TRANSFER GEARFIG.295A TRANSFER GEAR SHIFT CONTROLFIG.298A TRANSFER CASE

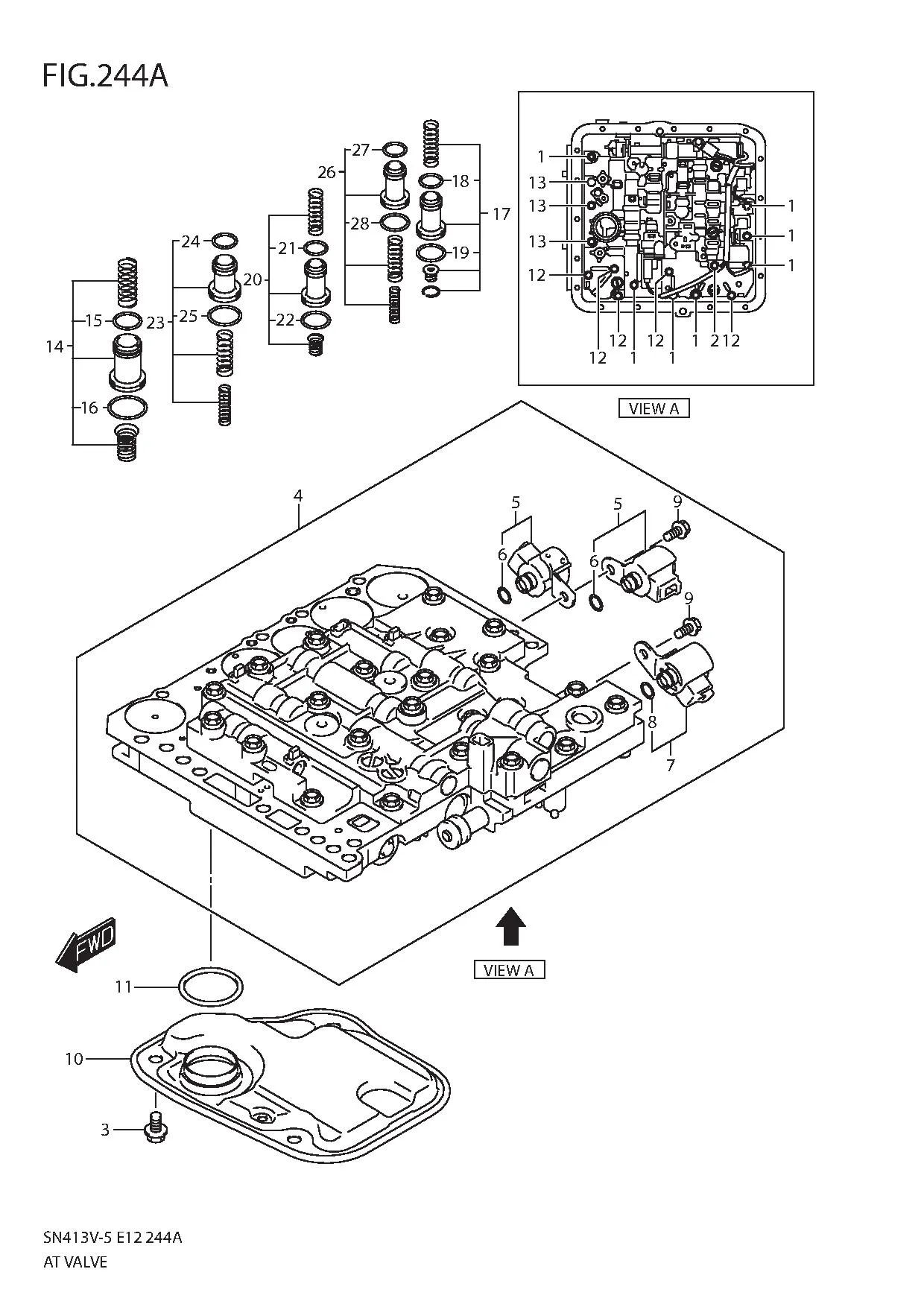

FIG.244A AT VALVE

FIG.244A AT VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 26443-60G10-000 BOLT, VALVE BODY NO.2 7 Rp46.500
2 26443-66H10-000 BOLT, VALVE BODY NO.4 1 Rp56.000
3 26449-65G10-000 BOLT, STRAINER 3 Rp27.500
4 26500-76J32-000 BODY ASSY, CONTROL VALVE 1 Rp21.404.500
5 26581-66H10-000 •SOLENOID, CONTROL NO.1 3 Rp646.500
6 29728-57B00-000 ••O RING, NO.1 SOLENOID 3 Rp70.000
7 26581-66H30-000 •SOLENOID, CONTROL NO.2 1 Rp504.000
8 29728-57B00-000 ••O RING, NO.2 SOLENOID 1 Rp70.000
9 29982-57B00-000 •BOLT, SOLENOID 3 Rp73.500
10 26570-76J10-000 STRAINER, TRANSMISSION OIL 1 Rp756.000
11 26545-54J10-000 O RING, STRAINER 1 Rp65.500
12 29971-57B00-000 BOLT, VALVE BODY NO.1 5 Rp69.500
13 29971-65D10-000 BOLT, VALVE BODY NO.3 3 Rp73.000
14 26541-66HT0-000 PISTON SET, C-1 ACCUMULATOR 1 Rp203.000
15 26544-79C10-000 •O RING, C-1 ACCUMULATOR NO.1 1 Rp30.000
16 26545-79C10-000 •O RING, C-1 ACCUMULATOR NO.2 1 Rp34.000
17 26542-66HT0-000 PISTON SET, C-2 ACCUMULATOR 1 Rp234.500
18 26544-79C10-000 •O RING, C-2 ACCUMULATOR NO.1 1 Rp30.000
19 26545-79C10-000 •O RING, C-2 ACCUMULATOR NO.2 1 Rp34.000
20 26543-66HT0-000 PISTON SET, C-3 ACCUMULATOR 1 Rp203.000
21 26544-79C10-000 •O RING, C-3 ACCUMULATOR NO.1 1 Rp30.000
22 26684-79C10-000 •O RING, C-3 ACCUMULATOR NO.2 1 Rp38.000
23 26544-76JT0-000 PISTON SET, B-1 ACCUMULATOR 1 Rp234.500
24 26546-79C10-000 •O RING, B-1 ACCUMULATOR NO.1 1 Rp32.000
25 26545-79C10-000 •O RING, B-1 ACCUMULATOR NO.2 1 Rp34.000
26 26545-66HT0-000 PISTON SET, B-2 ACCUMULATOR 1 Rp234.500
27 26544-79C10-000 •O RING, B-2 ACCUMULATOR NO.1 1 Rp30.000
28 26545-79C10-000 •O RING, B-2 ACCUMULATOR NO.2 1 Rp34.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
