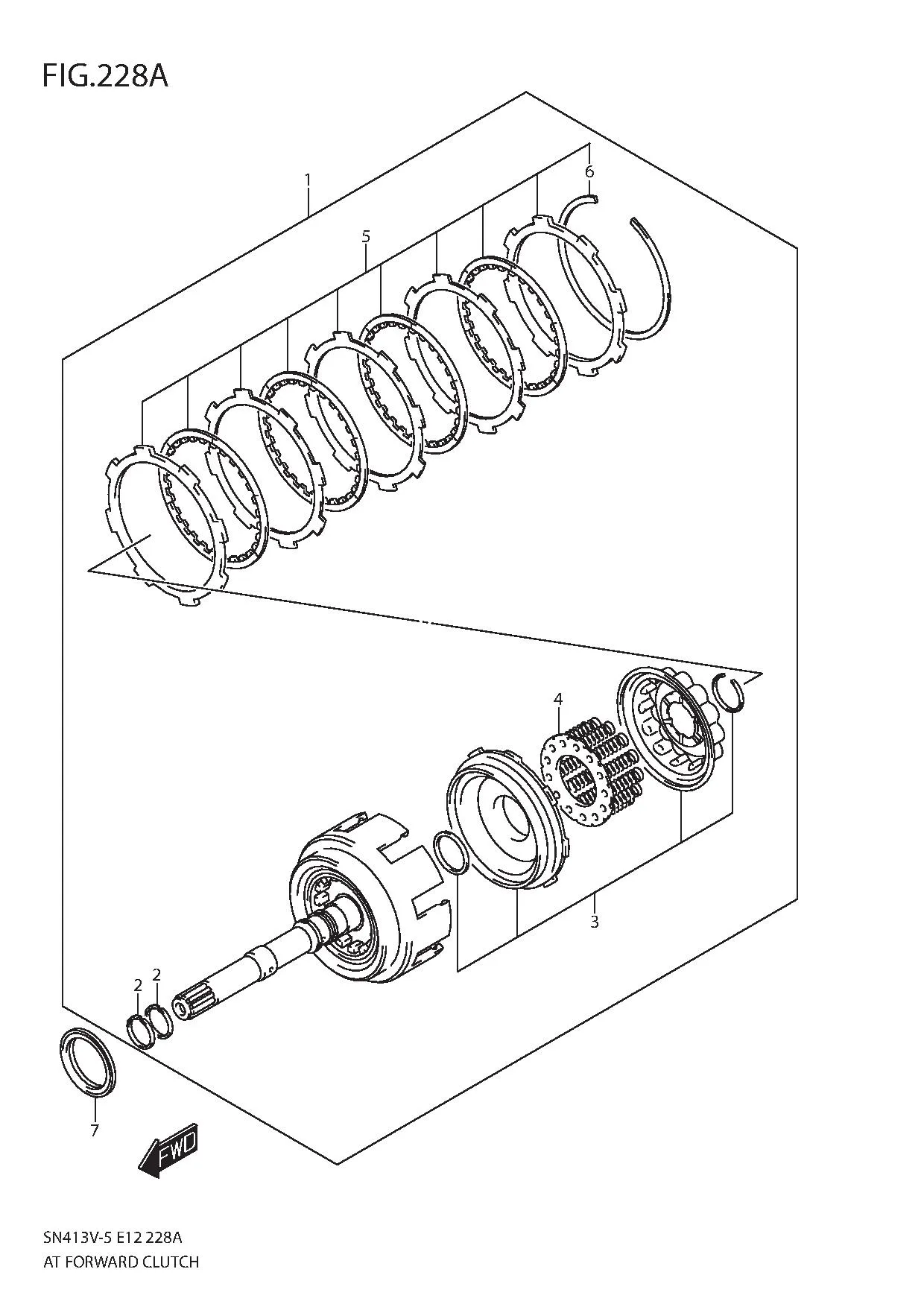

FIG.228A AT FORWARD CLUTCH

FIG.228A AT FORWARD CLUTCH
No No. Part Description Qty Price Per Pcs Remarks
1 24100-78R10-000
SUB: 24100-76J11-000		 CLUTCH ASSY, FORWARD 1 Rp6.395.000
2 24161-79C10-000 •RING, INPUT SHAFT OIL SEAL 2 Rp48.500
3 26612-66HT0-000 •PISTON SET, FORWARD CLUTCH 1 Rp902.000
4 26613-66H10-000 •SPRING, FWD CLUTCH RETURN 1 Rp198.500
5 26611-76JT1-000 •DISC SET, FORWARD CLUTCH 1 Rp3.349.500
6 26619-66H10-000 ••CIRCLIP, FWD CLUTCH PLATE 1 Rp60.000
7 24962-66H10-000 BEARING, THRUST NEEDLE NO.1 1 Rp301.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
