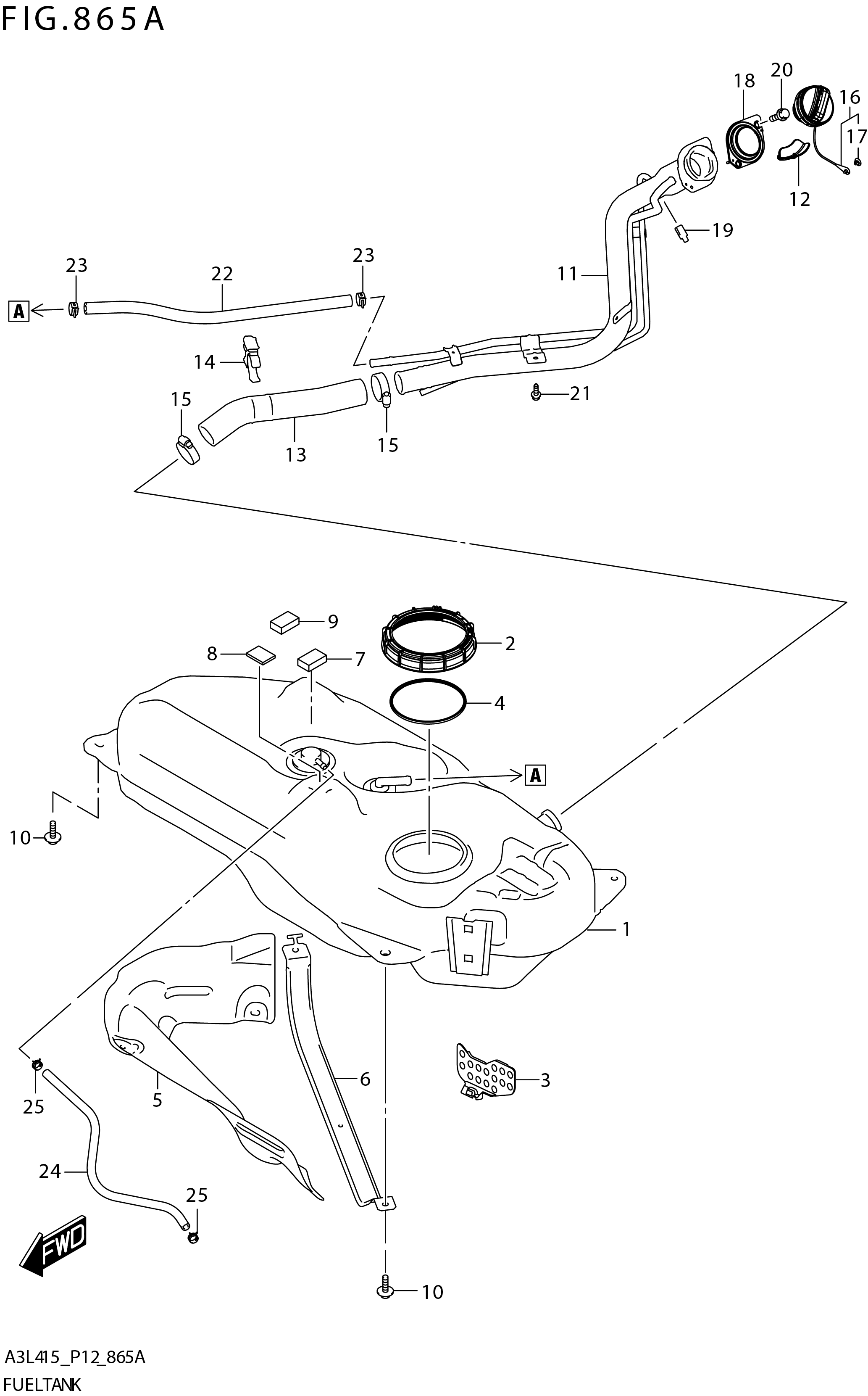

FIG. 865A FUEL TANK

No	No. Part	Description	Qty	Price Per Pcs
1	89101-74U01-000 SUB: 89101-74U00-000	TANK,FUEL	1	Rp4.569.000
2	89191M66R00-000	NUT,FUEL PUMP LOCK	1	Rp75.500
3	89185-68P10-000	PLATE,FUEL TANK BAFFLE	1	-
4	89192-58M00-000	O-RING,FUEL PUMP	1	Rp387.000
5	89311M68P00-000	INSULATOR,HEAT	1	Rp343.500
6	89363M68P00-000	BELT,FUEL TANK SUPPORT	1	Rp91.500
7	89385M66R00-000	PAD,FUEL TANK	1	Rp73.000
8	89385-76M00-000	PAD,FUEL TANK	1	Rp359.000
9	89387-57R00-000	PAD,FUEL TANK	1	Rp97.000
10	89199-79RV1-000	BOLT,FUEL TANK FIXER	4	Rp56.000
11	89210-74U00-000	NECK,FUEL FILLER	1	Rp906.500
12	89232-57L00-000	COVER,FUEL FILLER NECK	1	Rp40.500
13	89241-74U00-000	HOSE,FUEL TANK FILLER	1	Rp87.500
14	89242-81P00-000	CLAMP,FILLER & BREATHER HOSE	1	Rp48.500
15	89243-81P00-000	CLAMP,FUEL FILLER HOSE	2	Rp57.500
16	89260-77K01-000	CAP ASSY,FUEL FILLER	1	Rp379.500
17	89267-77K00-000	.CLIP,CAP TETHER	1	Rp36.500
18	89285-58J10-000	PACKING,FUEL FILLER	1	Rp54.500
19	89481-52S00-000	FILTER,AIR SUCTION	1	Rp7.000
20	09116-05023-000	BOLT (5X20)	2	Rp18.500
21	DISCONTINUE SUB: 09116-06205-000	BOLT (6X16)	1	-
22	09355-11003-440	HOSE,FUEL TANK BREATHER	1	Rp62.500
23	09401M16L01-000	CLIP (ID:16.5)	2	Rp9.000
24	09355-56L02-520	HOSE,FUEL EVAP	1	Rp40.500
25	09401-11004-000	CLIP	2	Rp20.500
