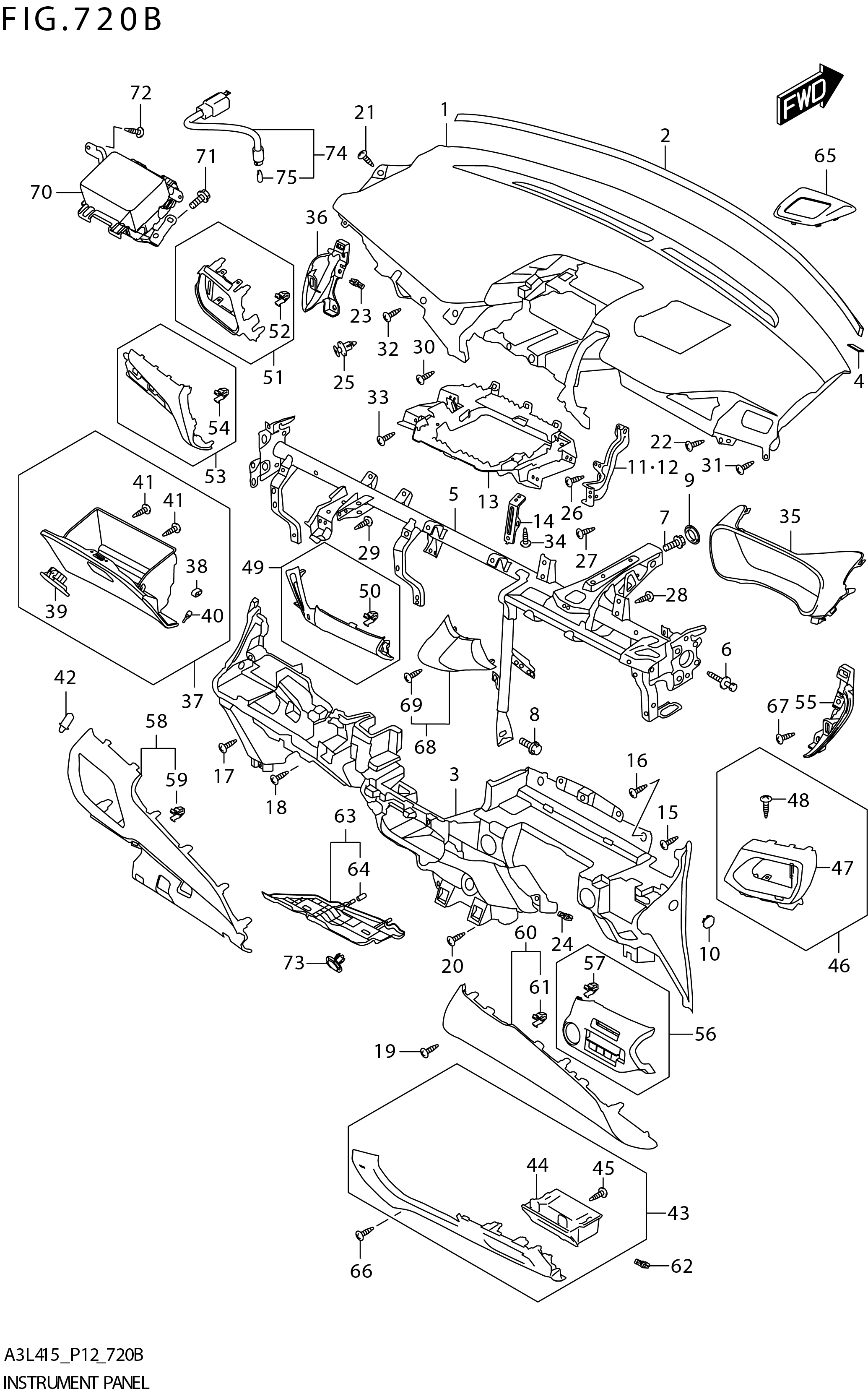

FIG. 720B INSTRUMENT PANEL (W_AEBMCR)

No	No. Part	Description	Qty	Price Per Pcs
1	73110-74U10-5PK	PANEL,INSTRUMENT MAIN UPR (BLACK)	1	Rp688.500
2	73114M79R10-000	SILENCER,I/P TOP	1	Rp58.000
3	73121-55T00-5PK	PANEL,INSTRUMENT MAIN LOWER (BLACK)	1	Rp332.500
4	73123-82M00-000	FELT,I/P TOP	5	Rp19.500
5	73200-74U10-000	MEMBER,STEERING SUPPORT	1	Rp1.876.000
6	73291-50G20-000	BOLT,STRG SPRT MBR SIDE	4	Rp42.500
7	73291-52R00-000	BOLT,WITH WASHER	1	Rp19.500
8	73291-52R00-000	BOLT,WITH WASHER	1	Rp19.500
9	09250-35005-000	CAP (OD:43.5)	1	Rp27.000
10	73871-73H00-5PK	CAP,I/P SIDE (BLACK)	3	Rp43.500
11	73113-74U00-000	STAY,AUDIO SUPPORT,R	1	Rp59.500
12	73114-74U00-000	STAY,AUDIO SUPPORT,L	1	Rp59.500
13	73132-55T00-000	BASE,HEAD UP DISPLAY HOLE	1	Rp115.500
14	73133M55T00-000	REINF,I/P UPPER	2	Rp16.500
15	09132-05049-000	SCREW (5X12)	2	Rp21.000
16	09132-05049-000	SCREW (5X12)	2	Rp21.000
17	09132-05049-000	SCREW (5X12)	2	Rp21.000
18	09132-05049-000	SCREW (5X12)	2	Rp21.000
19	09132-05049-000	SCREW (5X12)	1	Rp21.000
20	09132-05049-000	SCREW (5X12)	2	Rp21.000
21	09138M06054-000	BOLT	2	Rp5.000
22	09138M06054-000	BOLT	1	Rp5.000
23	09148-05045-000	NUT (M5)	2	Rp4.000
24	09148-05045-000	NUT (M5)	2	Rp4.000
25	09409-08351-000	CLIP	4	Rp21.000
26	02162-0612A-000	SCREW (6X12)	2	Rp11.000
27	03541-0516A-000	SCREW	6	Rp3.500
28	02162-0616A-000	SCREW (6X16)	2	Rp3.000
29	03541-0516A-000	SCREW	1	Rp3.500
30	03541-0516A-000	SCREW	2	Rp3.500
31	03541-0516A-000	SCREW	2	Rp3.500
32	03541-0516A-000	SCREW	1	Rp3.500
33	03541-0516A-000	SCREW	4	Rp3.500
34	03541-0516A-000	SCREW	2	Rp3.500
35	73311-74T00-5PK	PANEL,INSTRUMENT CLUSTER (BLACK)	1	Rp79.500
36	73864-74T00-5PK	BASE,I/P SIDE LH (BLACK)	1	Rp19.500
37	73410-55T00-5PK	BOX,GLOVE (BLACK)	1	-
38	73413M65D00-000	.CUSHION,GLOVE BOX	2	Rp6.500
39	73430-75J00-5PK	.LOCK,GLOVE BOX (BLACK)	1	-
40	73461M53M00-000	.CUSHION, GLOVE BOX SIDE	2	Rp7.000
41	03541-0412A-000	.SCREW (4X12)	2	Rp3.500
42	73461-77R00-000	CUSHION,GLOVE BOX	1	Rp33.500
43	73810-55T00-5PK	COVER,STRG COLUMN HOLE (BLACK)	1	Rp80.000
44	73812-55T00-5PK	.POCKET,STRG COLUMN HOLE COVER(BLACK)	1	Rp15.500
45	03541-0516A-000	.SCREW	3	Rp3.500
46	73830-74T10-E5C	GARNISH,I/P DRVR (BLACK/SILVER)	1	Rp281.000
47	73833-74T10-QZH	.ORNAMENT,I/P DRVR UPPER (SILVER)	1	Rp129.500
48	03541-0410A-000	.SCREW	4	Rp11.000
49	73869-74T10-0CE	ORNAMENT,I/P CTR LOWER (BLACK)	1	Rp287.500
50	09409-08352-000	.CLIP	6	Rp19.000
51	73865-74T10-QEK	GARNISH,I/P ASST (BLACK)	1	Rp144.500
52	09409-08351-000	.CLIP	3	Rp21.000
53	73867-74T10-QWP	ORNAMENT,I/P ASST (SILVER)	1	Rp414.000
54	09409-08352-000	.CLIP	9	Rp19.000
55	73832-74T00-5PK	BASE, I/P SIDE RH (BLACK)	1	Rp19.500
56	73835-74T10-QWR	BEZEL,I/P SWITCH (BORDEAUX)	1	Rp54.000
57	09409-08351-000	.CLIP	2	Rp21.000
58	73861-74T10-QZH	ORNAMENT,I/P ASST UPPER (SILVER)	1	Rp441.500
59	09409-08352-000	.CLIP	9	Rp19.000
60	73862-74T00-QWR	GARNISH,I/P CTR LOWER (BORDEAUX)	1	Rp116.000
61	09409-08352-000	.CLIP	9	Rp19.000
62	09148-05045-000	NUT (M5)	2	Rp4.000
63	73890-55T00-000	COVER,I/P UNDER ASST	1	Rp73.000
64	73132-57L00-000	.CAP,I/P PIN	2	Rp38.000
65	73131-74U00-5PK	COVER,HEAD UP DISPLAY HOLE (BLACK)	1	Rp68.000
66	03541-0516A-000	SCREW	2	Rp3.500
67	03541-0516A-000	SCREW	4	Rp3.500
68	73870-74T00-E5D	ORNAMENT,I/P DRVR (SILVER/BORDEAUX	1	Rp191.500
69	03541-0410A-000	.SCREW	3	Rp11.000
70	73910M55T00-000	MODULE ASSY,PASSENGER AIR BAG	1	Rp2.341.500
71	01551-0816C-000	BOLT (8X16)	2	Rp13.500
72	03541-0516A-000	SCREW	2	Rp3.500
73	09409-07340-000	CLIP (6.8X11.5)	2	Rp17.500
74	DISCONTINUE SUB: 36550-60E00-000	LAMP ASSY,ILLUM	1	-
75	DISCONTINUE SUB: 09471-12091-000	.BULB (12V1.4W G30)	1	-
