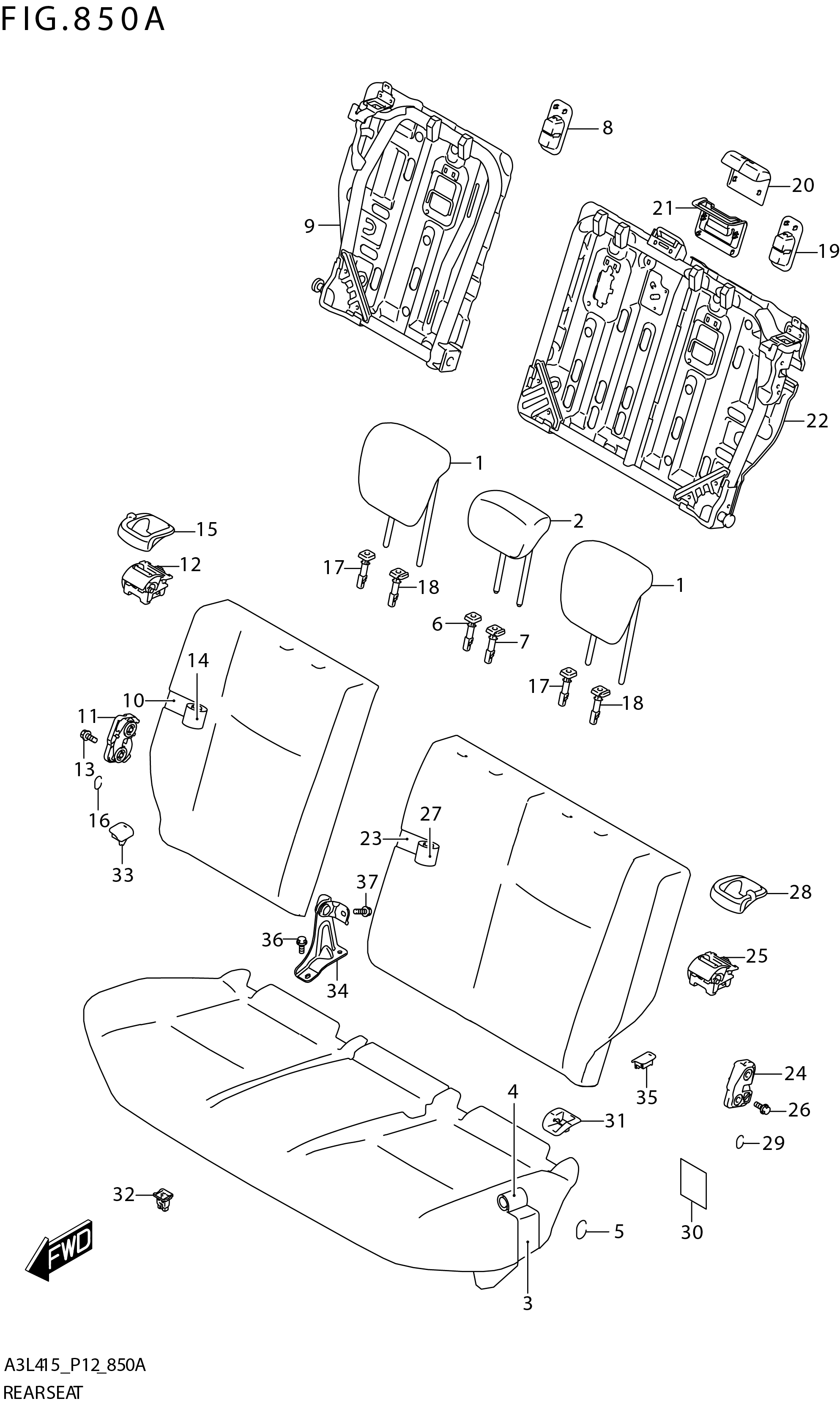

FIG. 850A REAR SEAT (N_AEBR)

No	No. Part	Description	Qty	Price Per Pcs
1	86401-74U10-FJQ	HEADRESTRAINT ASSY,RR	2	Rp642.000
2	86401-69T90-FJQ	HEADRESTRAINT ASSY,RR CTR	1	Rp459.000
3	87160-74U00-000	PAD,RR CUSH	1	Rp1.246.500
4	87180-55T00-FFN	TRIM,RR CUSH	1	Rp659.000
5	09387-19001-000	RING (OD:22.6)	63	Rp9.000
6	85341-58RA1-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp10.000
7	85840-73R10-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp11.000
8	87225-73R10-5PK	COVER,TETHER ANCHOR (BLACK)	1	Rp12.500
9	87310-74U10-000	FRAME,RR BACK,R	1	Rp836.000
10	87360-74UG0-000	PAD,RR BACK,R	1	Rp277.000
11	87480-62J10-000	LOCK ASSY,RR BACK,R	1	Rp1.092.000
12	87481-68PB0-5PK	KNOB,RR BACK LOCK,R (BLACK)	1	Rp74.500
13	01550-0835A-000	BOLT (8X35)	2	Rp3.500
14	87380-55TG0-FFN	TRIM,RR BACK,R	1	Rp440.500
15	87482-69T00-5PK	BEZEL,RR BACK LOCK,R (BLACK)	1	Rp14.000
16	09387-19001-000	RING (OD:22.6)	14	Rp9.000
17	85341-58RA1-P4Z	GUIDE,HEADRESTRAINT (GRAY)	2	Rp10.000
18	85840-73R10-P4Z	GUIDE,HEADRESTRAINT (GRAY)	2	Rp11.000
19	87225-73R10-5PK	COVER,TETHER ANCHOR (BLACK)	1	Rp12.500
20	87227-68PA0-5PK	COVER,SHOULDER ANCHOR (BLACK)	1	Rp23.000
21	87321-55T00-000	COVER,SHOULDER ANCHOR INNER	1	Rp25.000
22	87810-74U20-000	FRAME,RR BACK,L	1	Rp918.500
23	87860-74UG0-000	PAD,RR BACK,L	1	Rp412.000
24	87980-62J10-000	LOCK ASSY,RR BACK,L	1	Rp1.092.000
25	87981-68PB0-5PK	KNOB,RR BACK LOCK,L (BLACK)	1	Rp74.500
26	01550-0835A-000	BOLT (8X35)	2	Rp3.500
27	87880-55TG0-FFN	TRIM,RR BACK,L	1	Rp1.122.000
28	87982-69T00-5PK	BEZEL,RR BACK LOCK,L (BLACK)	1	Rp14.000
29	09387-19001-000	RING (OD:22.6)	12	Rp9.000
30	77151-82000-000	FILM	2	Rp7.000
31	87228-68P00-5PK	BEZEL,LWR ANCHOR (BLACK)	4	-
32	87460-76G11-000	HOOK,RR,SEAT CUSH	2	Rp39.000
33	87491-68P02-5PK	COVER,RR SEAT HINGE,R (BLACK)	1	Rp13.500
34	87950M55R00-000	HINGE,RR CENTER	1	Rp154.000
35	87991-68P02-5PK	COVER,RR SEAT HINGE,L (BLACK)	1	Rp13.500
36	01551-1025A-000	BOLT (10X25)	2	Rp29.000
37	01551-1025A-000	BOLT (10X25)	2	Rp29.000
