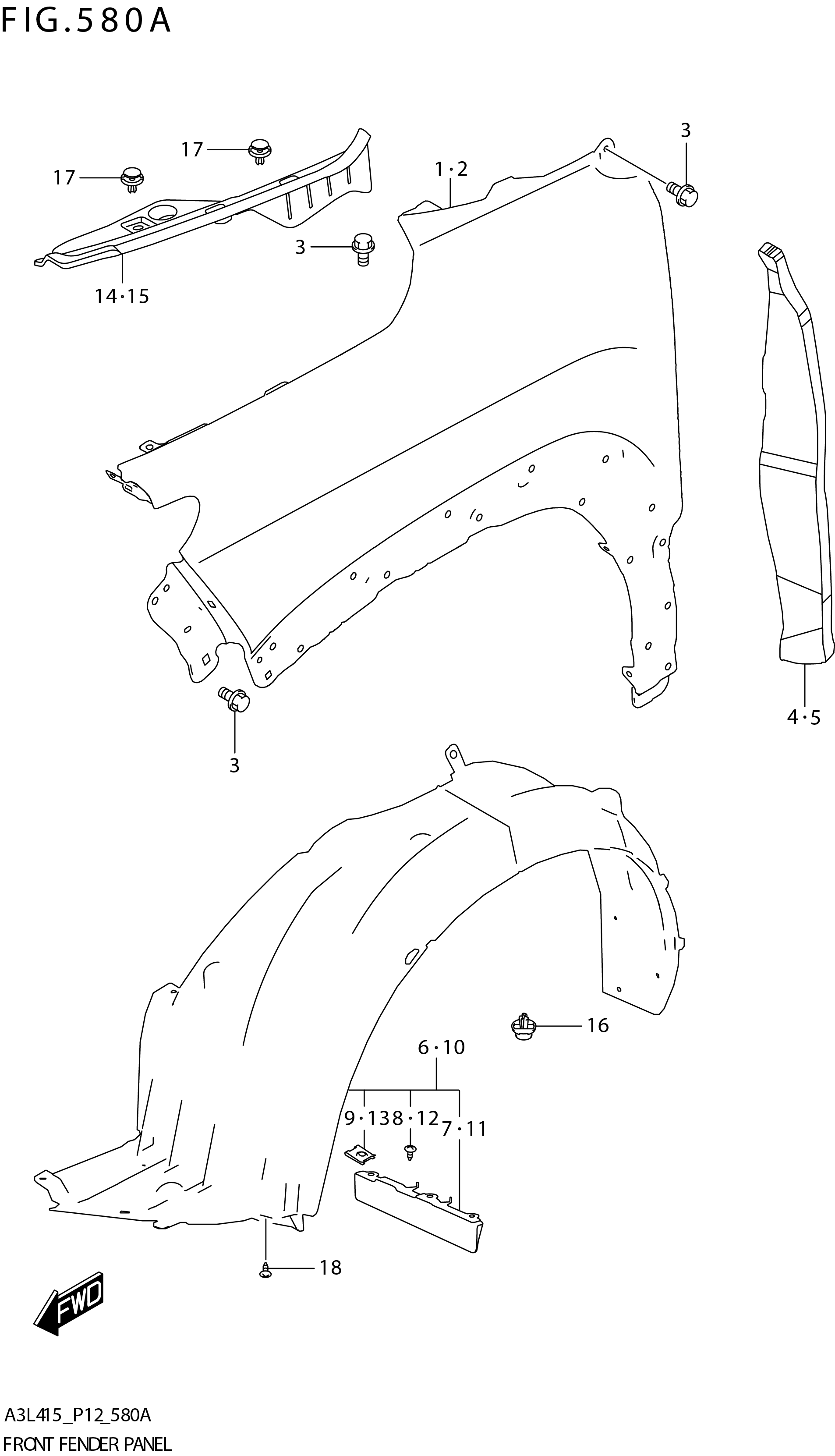

FIG. 580A FRONT FENDER PANEL

FIG. 580A FRONT FENDER PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	57610-74U00-000	PANEL,FRONT FENDER,R	1	Rp368.000
2	57710-74U00-000	PANEL,FRONT FENDER,L	1	Rp447.000
3	01550-0612A-000	BOLT (6X12)	20	Rp3.500
4	72351M74T00-000	PAD,FR FENDER,R	1	Rp104.000
5	72352M74T00-000	PAD,FR FENDER,L	1	Rp104.000
6	72320-74U00-000	LINING,FRONT FENDER,R	1	Rp533.500
7	72323-74T00-000	.STRAKE,FRONT FENDER,R	1	Rp41.000
8	09132-05053-000	.SCREW (5X16)	3	Rp14.000
9	09148-05075-000	.NUT	1	Rp14.000
10	72340-74U00-000	LINING,FRONT FENDER,L	1	Rp533.500
11	72324-74T00-000	.STRAKE,FRONT FENDER,L	1	Rp41.000
12	09132-05053-000	.SCREW (5X16)	3	Rp14.000
13	09148-05075-000	.NUT	1	Rp14.000
14	72471-74T00-000	COVER,FR FENDER UPPER,R	1	Rp32.000
15	72472-74T00-000	COVER,FR FENDER UPPER,L	1	Rp32.000
16	09409-07340-000	CLIP (6.8X11.5)	20	Rp17.500
17	09409-08010-000	CLIP	8	Rp5.500
18	09136-05068-000	SCREW (5X20)	2	Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
