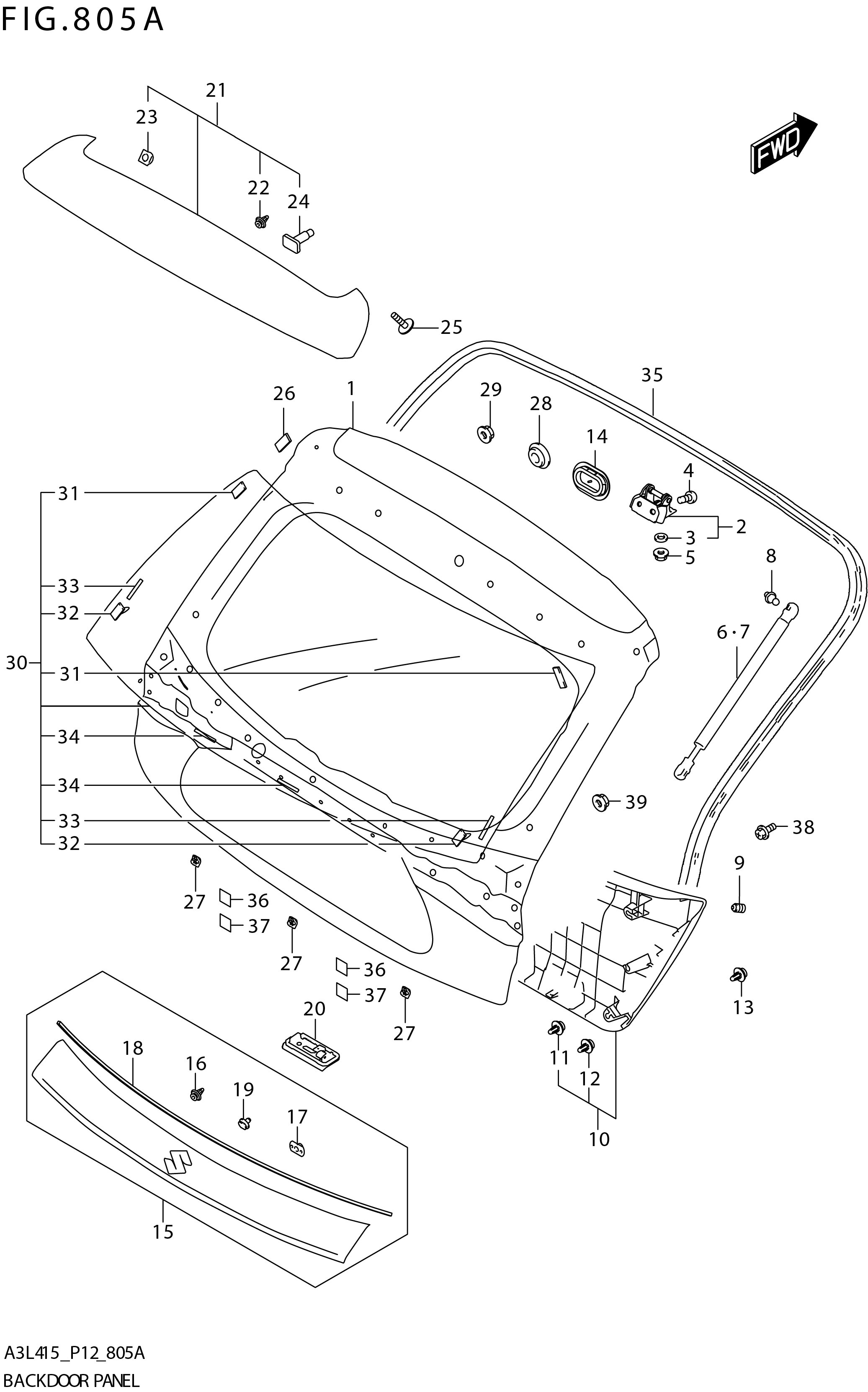

FIG. 805A BACK DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	69100-74U00-000	PANEL ASSY,BACK DOOR	1	Rp2.026.500
2	69510M68P01-000	HINGE,BACK DR	2	Rp62.500
3	69571M76G00-000	.PACKING,BACK DR HNG	2	Rp6.500
4	09111-06086-000	BOLT (6X12)	4	Rp16.000
5	08361-2508A-000	NUT	2	Rp16.500
6	81850-74U00-000	BALANCER,BACK DOOR,R	1	Rp540.500
7	81860-74U00-000	BALANCER,BACK DOOR,L	1	Rp540.500
8	81871M68P01-000	BALLSTUD,BK DR BALANCER	4	Rp31.000
9	82683-59S00-000	CUSHION,BACK DOOR SIDE	4	Rp42.500
10	83770-74U00-5PK	TRIM,BACK DOOR (BLACK)	1	Rp288.000
11	09409-10313-000	.CLIP	1	Rp14.000
12	09409-10327-000	.CLIP	11	Rp5.000
13	09409-07340-000	CLIP (6.8X11.5)	1	Rp17.500
14	36994M68K00-000	CAP,FR DR HOLE	3	Rp10.500
15-1	83940-74U00-ZQZ	GARNISH,BACK DOOR (WHITE)	1	Rp634.000
15-8	83940-74U00-WCD	GARNISH,BACK DOOR (BLUE)BODY COLOR:FD1	1	Rp632.500
15-7	83940-74U00-ZZY	GARNISH,BACK DOOR (ORANGE)BODY COLOR:EC38	1	Rp642.000
15-6	83940-74U00-WBY	GARNISH,BACK DOOR (IVORY)	1	Rp628.500
15-5	83940-74U00-WBD	GARNISH,BACK DOOR (RED)	1	Rp653.000
15-4	83940-74U00-ZBD	GARNISH,BACK DOOR (BLACK)	1	Rp625.000
15-3	83940-74U00-ZYZ	GARNISH,BACK DOOR (GRAY)	1	Rp622.500
15-2	83940-74U00-Z2S	GARNISH,BACK DOOR (SILVER)	1	Rp625.500
16	09409-08343-000	.CLIP	5	Rp7.000
17	09146M06003-000	.NUT	2	Rp7.500
18	83944-74U00-000	.PROTECTOR,BACK DOOR GARNISH	1	Rp97.000
19	83947-73R00-000	.BOLT,BACK DR GARNISH	2	Rp27.500
20-1	83970-74U00-000	HOLDER,BACK DOOR SWITCH	1	Rp20.000
20-2	83970-74U10-000	HOLDER,BACK DOOR SWITCH	1	Rp20.000
21-1	83980-74U00-ZQZ	SPOILER ASSY,BACK DOOR (WHITE)	1	Rp1.338.000
21-2	83980-74U00-Z2S	SPOILER ASSY,BACK DOOR (SILVER)	1	Rp1.338.000
21-3	83980-74U00-ZYZ	SPOILER ASSY,BACK DOOR (GRAY)	1	Rp1.338.000
21-4	83980-74U00-ZBD	SPOILER ASSY,BACK DOOR (BLACK)	1	Rp1.338.000
21-5	83980-74U00-WBD	SPOILER ASSY,BACK DOOR (RED)	1	Rp1.338.000
21-6	83980-74U00-WBY	SPOILER ASSY,BACK DOOR (IVORY)	1	Rp1.338.000
22	71812-78F00-000	.CLIP	4	Rp9.000
23	775A2-74U00-000	.NUT,BACK DOOR SPOILER	2	Rp11.000
24	83947-74U00-000	.BOLT,BACK DOOR GARNISH	2	Rp14.000
25	72435-74P00-000	SCREW (6X16)	2	Rp18.500
26	84515-65D00-000	FEMALE,GLASS FASTENER NO.2	2	Rp45.500
27	83994-73R00-000	CAP,BACK DR DRAIN HOLE	3	Rp5.500
28	09250M20031-000	CAP (OD:25.8)	1	Rp4.500
29	08316-1006A-000	NUT (6X12)	2	Rp2.000
30	84570-74U10-000	GLASS,BACK DOOR WINDOW	1	Rp721.000
31	84513-76F00-000	.MALE,GLASS FASTENER NO.2	2	Rp38.500
32	84575-74U00-000	.CLIP,GLASS FASTENER	2	Rp31.500
33	84617-60M00-000	.SPACER	4	Rp19.000
34	84572-71L00-000	.SPACER,GLASS	4	Rp18.500
35	84681-74U00-000	WEATHERSTRIP,BACK DOOR OPNG	1	Rp237.000
36	77151-82000-000	FILM	2	Rp7.000
37	44281-29C00-000	CUSHION	2	Rp6.000
38	72435-74P00-000	SCREW (6X16)	2	Rp18.500
39	08316-1006A-000	NUT (6X12)	2	Rp2.000
