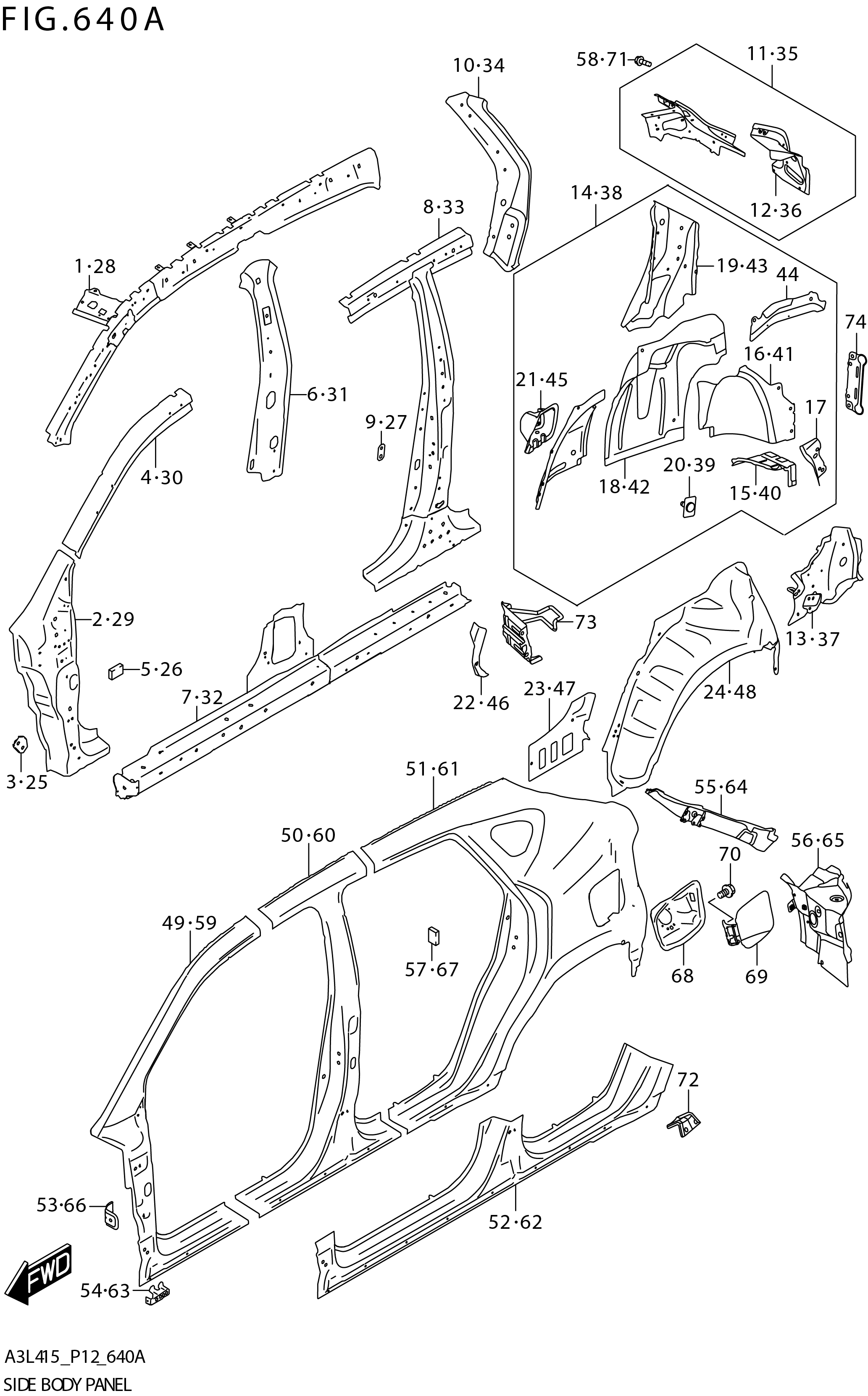

FIG. 640A SIDE BODY PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	63110-74U00-000	PANEL,FR PILLAR INNER,R	1	Rp873.500
2	63140-74U00-000	REINF,FRONT DOOR HINGE,R	1	Rp1.312.000
3	63144M76M00-000	RETAINER,FR DR HINGE LWR	2	Rp9.500
4	63151M68P10-000	REINF,FR PILLAR UPR,R	1	Rp482.500
5	83921-82C00-000	PAD	5	Rp51.000
6	63210-74U00-000	PANEL,CTR PILLAR INNER,R	1	Rp361.000
7	63220-74U00-000	STRENGTH,SIDE SILL,R	1	Rp1.601.500
8	63230-74U00-000	REINF,CTR PILLAR,R	1	Rp1.567.000
9	63243-74P00-000	RETAINER,RR DR HINGE	2	Rp6.000
10	63310-74U00-000	REINF,QTR INNER FR,R	1	Rp223.500
11	63320-74U00-000	EXTENSION,QTR INNER,R	1	Rp691.000
12	63313-74T00-000	.PANEL,RR LAMP HOUSE INNER,R	1	Rp192.000
13	63340-74U00-000	PANEL,QTR INNER REAR,R	1	Rp195.500
14	63410-74U00-000	PANEL,WHEEL HOUSE INNER,R	1	Rp819.000
15	63412-74U00-000	.EXTENSION,WHEEL HOUSE INNER,R	1	Rp42.500
16	63413-74U00-000	.PANEL,WHEEL HOUSE INNER RR,R	1	Rp77.500
17	63416-74T00-000	.BASE,JACK BRACKET	1	Rp16.500
18	63420-74U00-000	.REINF,RR SHOCK ABSORBER,R	1	Rp541.500
19	63431M55T00-000	.REINF,REAR PILLAR INNER,R	1	Rp327.000
20	63432M55T00-000	.PATCH,SEAT BELT RETRACTOR	1	Rp23.000
21	63450M55T00-000	.BRACKET,RR SEAT HINGE,R	1	Rp142.000
22	63414-74U00-000	REINF,RR WHEEL HOUSE FR,R	1	-
23	63422M68P00-000	REINF,SIDE SILL RR,R	1	Rp44.500
24	63480-74U00-000	PANEL,WHEEL HOUSE OUTER,R	1	Rp449.500
25	63144M76M00-000	RETAINER,FR DR HINGE LWR	2	Rp9.500
26	83921-82C00-000	PAD	5	Rp51.000
27	63243-74P00-000	RETAINER,RR DR HINGE	2	Rp6.000
28	63510-74U00-000	PANEL,FR PILLAR INNER,L	1	Rp964.500
29	63540-74U00-000	REINF,FRONT DOOR HINGE,L	1	Rp1.311.500
30	63551M68P10-000	REINF,FR PILLAR UPR,L	1	Rp482.500
31	63610-74U00-000	PANEL,CTR PILLAR INNER,L	1	Rp361.000
32	63620-74U00-000	STRENGTH,SIDE SILL,L	1	Rp1.557.500
33	63630-74U00-000	REINF,CTR PILLAR,L	1	Rp1.567.000
34	63710-74U00-000	REINF,QTR INNER FR,L	1	Rp223.500
35	63720-74U00-000	EXTENSION,QTR INNER,L SIDE BODY PANEL	1	Rp691.000
36	63713-74T00-000	.PANEL,RR LAMP HOUSE INNER,L	1	Rp192.000
37	63740-74U00-000	PANEL,QTR INNER REAR,L	1	Rp216.500
38	63810-74U00-000	PANEL,WHEEL HOUSE INNER,L	1	Rp819.000
39	63432M55T00-000	.PATCH,SEAT BELT RETRACTOR	1	Rp23.000
40	63812-74U00-000	.EXTENSION,WHEEL HOUSE INNER,L	1	Rp42.500
41	63813-74U00-000	.PANEL,WHEEL HOUSE INNER RR,L	1	Rp77.500
42	63820-74U00-000	.REINF,RR SHOCK ABSORBER,L	1	Rp553.000
43	63831M55T00-000	.REINF,REAR PILLAR INNER,L	1	Rp327.000
44	63833-74T00-000	.REINF,WHEEL HOUSE INNER,L	1	Rp25.500
45	63850M55T00-000	.BRACKET,RR SEAT HINGE,L	1	Rp139.000
46	63814-74U00-000	REINF,RR WHEEL HOUSE FR,L	1	Rp103.500
47	63822M68P00-000	REINF,SIDE SILL RR,L	1	Rp52.500
48	63880-74U00-000	PANEL,WHEEL HOUSE OUTER,L	1	Rp467.500
49	64111-74U00-P11	PANEL,A-PILLAR,R	1	Rp2.728.500
50	64111-74U00-P21	PANEL,B-PILLAR,R	1	Rp2.773.000
51	64111-74U00-P31	PANEL,QUARTER,R	1	Rp2.775.500
52	64111-74U00-P41	PANEL,SIDE SILL,R	1	Rp2.744.000
53	64112-74U00-000	BRACKET,FR FENDER	2	Rp7.500
54	64113-74T00-000	BRACKET,FR FENDER LWR,R	1	Rp16.500
55	64120-74U00-000	EXTENSION,SIDE BODY OTR,R	1	Rp461.000
56	64130-74U00-000	PANEL,RR LAMP HOUSE OTR,R	1	Rp235.500
57	83921-82C00-000	PAD	3	Rp51.000
58	01550-0612A-000	BOLT (6X12)	1	Rp3.500
59	64511-74U00-P11	PANEL,A-PILLAR,L	1	Rp2.728.500
60	64511-74U00-P21	PANEL,B-PILLAR,L	1	Rp2.773.000
61	64511-74U00-P31	PANEL,QUARTER,L	1	Rp2.775.500
62	64511-74U00-P41	PANEL,SIDE SILL,L	1	Rp2.744.000
63	64513-74T00-000	BRACKET,FR FENDER LWR,L	1	Rp16.500
64	64520-74U00-000	EXTENSION,SIDE BODY OTR,L	1	Rp461.000
65	64530-74U00-000	PANEL,RR LAMP HOUSE OTR,L	1	Rp235.500
66	64112-74U00-000	BRACKET,FR FENDER	2	Rp7.500
67	83921-82C00-000	PAD	3	Rp51.000
68	64571-74U00-000	BOX,FUEL FILLER	1	Rp103.000
69	64850-74U00-000	DOOR,FUEL FILLER	1	Rp198.000
70	01550-0612A-000	BOLT (6X12) SIDE BODY PANEL	2	Rp3.500
71	01550-0612A-000	BOLT (6X12)	1	Rp3.500
72	64114-74T00-000	BRACKET,RR FENDER LINING	2	Rp5.000
73	63470-74T00-000	BRACKET KIT, JACK	1	Rp91.500
74	64151-72U00-000	BRACKET,BLIND SPOT SENSOR	2	Rp22.000
