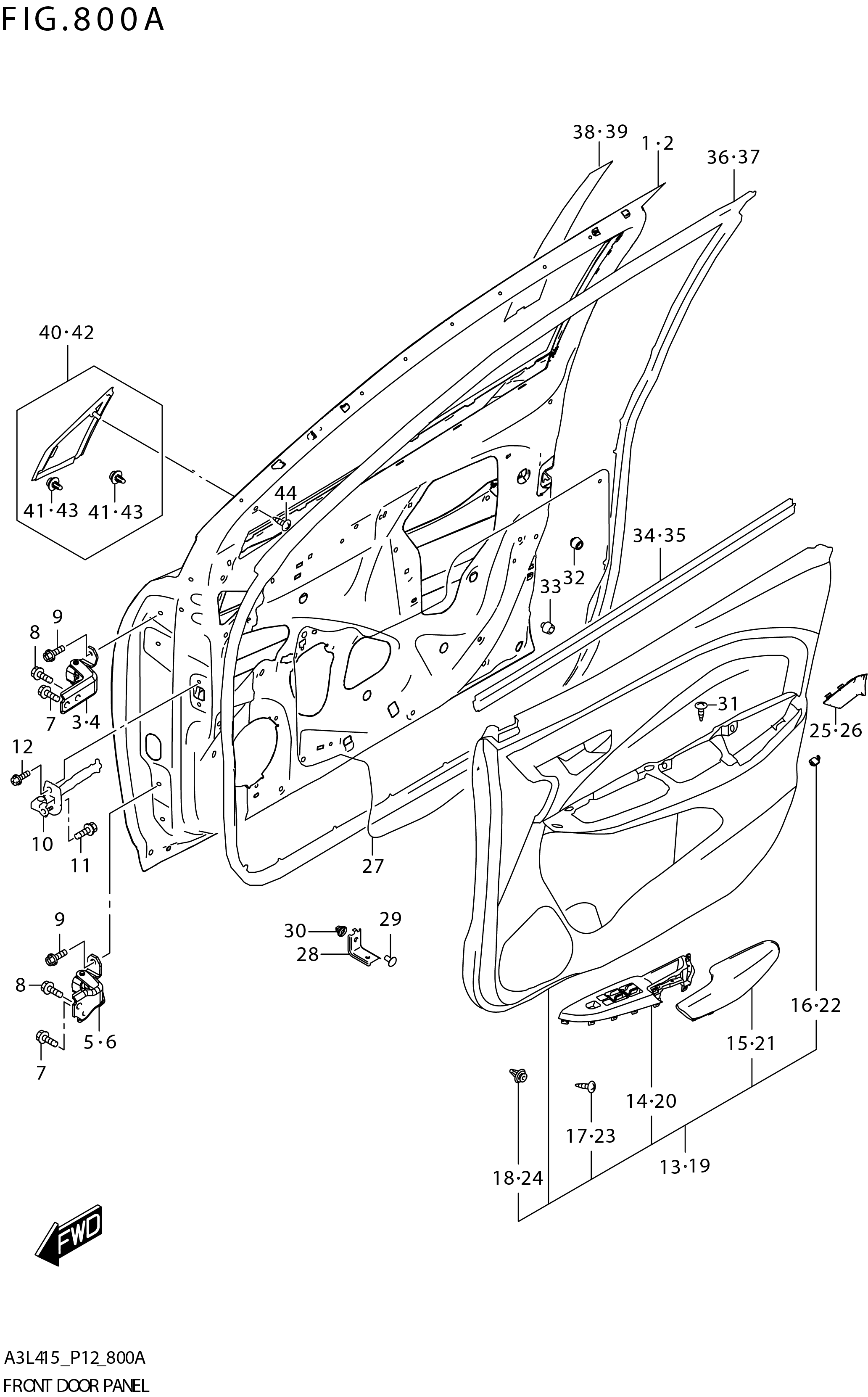

FIG. 800A FRONT DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	68001-74U00-000	PANEL ASSY,FRONT DOOR,R	1	Rp3.148.500
2	68002-74U00-000	PANEL ASSY,FRONT DOOR,L	1	Rp3.148.500
3	69310M68L00-000	HINGE,FR DR UPR,R	1	Rp82.500
4	69320M68L00-000	HINGE,FR DR UPR,L	1	Rp82.500
5	69330M68L00-000	HINGE,FR DR LWR,R	1	Rp74.000
6	69340M68L00-000	HINGE,FR DR LWR,L	1	Rp74.000
7	09113-08001-000	BOLT (8X20)	4	Rp18.500
8	01551-0820A-000	BOLT	4	Rp17.500
9	09103-08546-000	BOLT (8X24)	8	Rp26.500
10	81810-57L01-000	STOP,FRONT DOOR OPEN	2	Rp420.000
11	09112-08015-000	BOLT (8X25)	2	Rp32.000
12	82131-50M00-000	BOLT	4	Rp18.000
13-1	83710-74U00-FF9	TRIM,FRONT DOOR,R	1	Rp1.220.500
13-2	83710-74U10-FKH	TRIM,FRONT DOOR,R	1	Rp1.369.000
14-1	83715-74U10-5PK	.BEZEL,P/W SWITCH MAIN,R (BLACK)	1	Rp69.500
14-2	83715-74U30-QEK	.BEZEL,P/W SWITCH MAIN,R (BLACK)	1	Rp221.000
15-1	83718-74U00-WRU	.ARMREST,FR DR TRIM,R (BORDEAUX)	1	Rp241.500
15-2	83718-74U10-FKV	.ARMREST,FRONT DOOR TRIM,R	1	Rp249.000
16	83752-80J00-5PK	.CAP,SIDE DR INS CASE (BLACK)	1	Rp74.000
17	03541-0410A-000	.SCREW	31	Rp11.000
18	09409-10327-000	.CLIP	9	Rp5.000
19-1	83720-74U00-FF9	TRIM,FRONT DOOR,L	1	Rp1.220.500
19-2	83720-74U10-FKH	TRIM,FRONT DOOR,L	1	Rp1.369.000
20-1	83725-74U00-5PK	.BEZEL,P/W SWITCH SUB,L (BLACK)	1	Rp69.500
20-2	83725-74U20-QEK	.BEZEL,P/W SWITCH SUB,L (BLACK)	1	Rp221.000
21-1	83728-74U00-WRU	.ARMREST,FR DR TRIM,L (BORDEAUX)	1	Rp241.500
21-2	83728-74U10-FKV	.ARMREST,FRONT DOOR TRIM,L	1	Rp249.000
22	83752-80J00-5PK	.CAP,SIDE DR INS CASE (BLACK)	1	Rp74.000
23	03541-0410A-000	.SCREW	31	Rp11.000
24	09409-10327-000	.CLIP	9	Rp5.000
25	83755-74L00-5PK	CAP,INSIDE HDL BEZEL,R (BLACK)	1	Rp24.000
26	83756-74L00-5PK	CAP,INSIDE HDL BEZEL,L (BLACK)	1	Rp24.000
27	83911M55T00-000	COVER,FRONT DOOR SEALING	2	Rp24.000
28	83751-67P00-000	BRACKET,DR TRIM	2	Rp11.500
29	03141M0612A-000	SCREW	2	Rp4.500
30	71851M70F00-000	NUT (M6)	2	Rp4.000
31	09132-05058-000	SCREW (5X12)	2	Rp14.000
32	82711-65J00-000	CUSHION	2	Rp34.000
33	82711-51K00-000	STOPPER,DR	2	Rp39.000
34	83851-74U00-000	WEATHERSTRIP,FR DOOR INNER,R	1	Rp117.500
35	83861-74U00-000	WEATHERSTRIP,FR DOOR INNER,L	1	Rp117.500
36	84641-74U00-000	WEATHERSTRIP,FRONT DOOR OPNG,R	1	Rp177.000
37	84651-74U00-000	WEATHERSTRIP,FRONT DOOR OPNG,L	1	Rp177.000
38	83923-74U00-0CB	TAPE,FR DR OUTER RR,R (BLACK)5,EYP,EC38,FD1	1	Rp51.500
39	83924-74U00-0CB	TAPE,FR DR OUTER RR,L (BLACK)5,EYP,EC38,FD1	1	Rp51.500
40	83950-74U00-000	GARNISH,FR DR FR OUTER,R	1	Rp65.500
41	09409-10327-000	.CLIP	1	Rp5.000
42	83960-74U00-000	GARNISH,FR DR FR OUTER,L	1	Rp65.500
43	09409-10327-000	.CLIP	1	Rp5.000
44	03541-0512A-000	SCREW	2	Rp3.500
