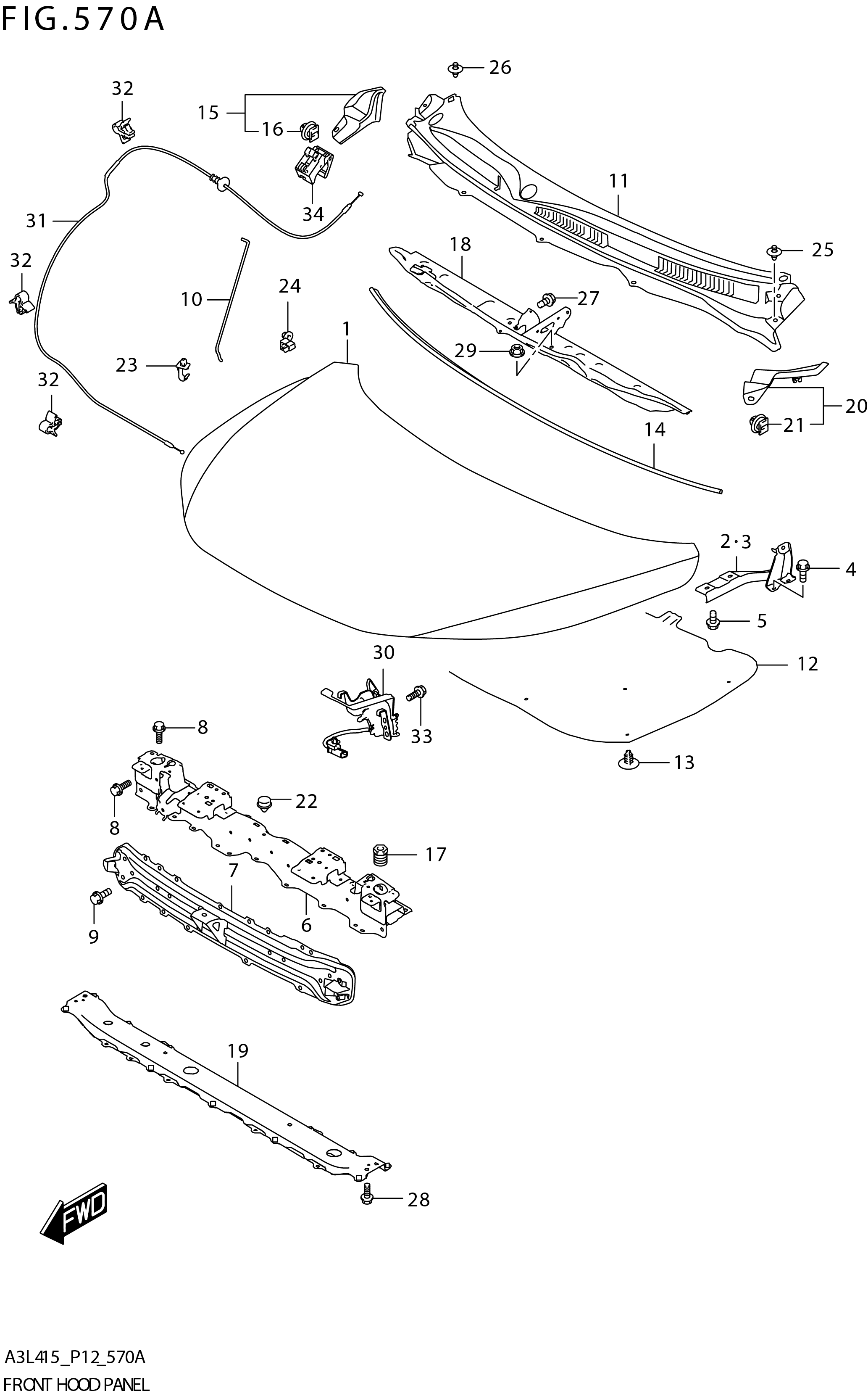

FIG. 570A FRONT HOOD PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	57300-74U00-000	PANEL,FRONT HOOD	1	Rp2.078.500
2	57410-74U00-000	HINGE,FRONT HOOD,R	1	Rp143.000
3	57420-74U00-000	HINGE,FRONT HOOD,L	1	Rp143.000
4	01550-0820A-000	BOLT (8X20)	4	Rp5.500
5	01550-0820A-000	BOLT (8X20)	4	Rp5.500
6	58220-74U00-000	MEMBER,FRONT BUMPER UPR	1	Rp958.000
7	58270-74U00-000	MEMBER,FRONT BUMPER	1	Rp1.066.000
8	01550-0820A-000	BOLT (8X20)	10	Rp5.500
9	01550-0820A-000	BOLT (8X20)	8	Rp5.500
10	72311-74U00-000	STAY,FRONT HOOD	1	Rp53.500
11	72330-74T00-5PK	GARNISH,COWL TOP CTR (BLACK)	1	-
12	72440-74U00-000	SILENCER,FRONT HOOD	1	Rp331.500
13	09409-07340-000	CLIP (6.8X11.5)	11	Rp17.500
14	72362M55T00-000	SEAL,HOOD REAR	1	Rp67.000
15	72371-74U00-5PK	GARNISH,COWL TOP SIDE,R (BLACK)	1	Rp28.000
16	09409-06342-000	.CLIP	1	Rp19.500
17	72372-63J00-000	CUSHION,FR HOOD SIDE	2	Rp8.000
18	72380-74U00-000	PANEL,FR COWL UPPER	1	Rp467.000
19	72390M68P00-000	CROSSMEMBER,FR LWR	1	Rp641.500
20	72372-74U00-5PK	GARNISH,COWL TOP SIDE,L (BLACK)	1	Rp28.000
21	09409-06342-000	.CLIP	1	Rp19.500
22	09321-10023-000	CUSHION (HD:10)	2	Rp6.000
23	72312-74U00-000	HOLDER,FRONT HOOD STAY	1	Rp4.000
24	09209-14001-000	LINKAGE	1	Rp21.000
25	09409M07L02-5PK	CLIP	5	Rp7.500
26	09409M07L02-5PK	CLIP	2	Rp7.500
27	02162-0612A-000	SCREW (6X12)	1	Rp11.000
28	02162-0616A-000	SCREW (6X16)	4	Rp3.000
29	08316-1006A-000	NUT (6X12)	4	Rp2.000
30	82110-74U00-000	LATCH,HOOD	1	Rp378.500
31	82160-74U00-000	CABLE,HOOD LATCH RELEASE	1	Rp57.500
32	09403M04401-000	CLAMP (D:4.8)	4	Rp4.500
33	02162-0616A-000	SCREW (6X16) FRONT HOOD PANEL	3	Rp3.000
34	82150-74U00-000	LEVER,HOOD LATCH RELEASE	1	Rp39.500
