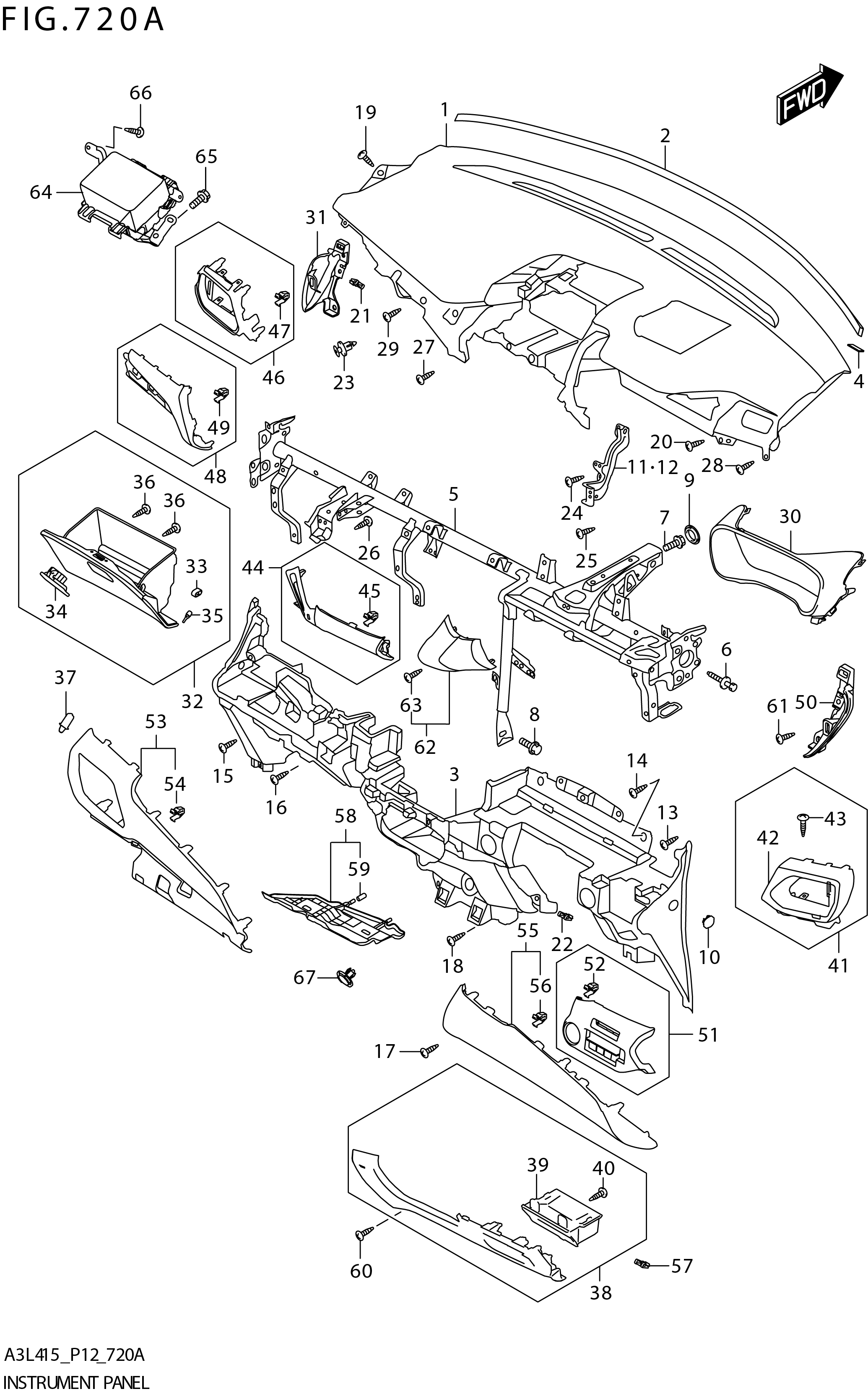

FIG. 720A INSTRUMENT PANEL (N_AEBR)

No	No. Part	Description	Qty	Price Per Pcs
1	73110-74U00-5PK	PANEL,INSTRUMENT MAIN UPR (BLACK)	1	Rp896.000
2	73114M79R10-000	SILENCER,I/P TOP	1	Rp58.000
3	73121-55T00-5PK	PANEL,INSTRUMENT MAIN LOWER (BLACK)	1	Rp332.500
4	73123-82M00-000	FELT,I/P TOP	5	Rp19.500
5	73200-74U00-000	MEMBER,STEERING SUPPORT	1	Rp1.871.000
6	73291-50G20-000	BOLT,STRG SPRT MBR SIDE	4	Rp42.500
7	73291-52R00-000	BOLT,WITH WASHER	1	Rp19.500
8	73291-52R00-000	BOLT,WITH WASHER	1	Rp19.500
9	09250-35005-000	CAP (OD:43.5)	1	Rp27.000
10	73871-73H00-5PK	CAP,I/P SIDE (BLACK)	3	Rp43.500
11	73113-74U00-000	STAY,AUDIO SUPPORT,R	1	Rp59.500
12	73114-74U00-000	STAY,AUDIO SUPPORT,L	1	Rp59.500
13	09132-05049-000	SCREW (5X12)	2	Rp21.000
14	09132-05049-000	SCREW (5X12)	2	Rp21.000
15	09132-05049-000	SCREW (5X12)	2	Rp21.000
16	09132-05049-000	SCREW (5X12)	2	Rp21.000
17	09132-05049-000	SCREW (5X12)	1	Rp21.000
18	09132-05049-000	SCREW (5X12)	2	Rp21.000
19	09138M06054-000	BOLT	2	Rp5.000
20	09138M06054-000	BOLT	1	Rp5.000
21	09148-05045-000	NUT (M5)	2	Rp4.000
22	09148-05045-000	NUT (M5)	2	Rp4.000
23	09409-08351-000	CLIP	4	Rp21.000
24	02162-0612A-000	SCREW (6X12)	2	Rp11.000
25	03541-0516A-000	SCREW	6	Rp3.500
26	03541-0516A-000	SCREW	1	Rp3.500
27	03541-0516A-000	SCREW	2	Rp3.500
28	03541-0516A-000	SCREW	2	Rp3.500
29	03541-0516A-000	SCREW	1	Rp3.500
30	73311-74T00-5PK	PANEL,INSTRUMENT CLUSTER (BLACK)	1	Rp79.500
31	73864-74T00-5PK	BASE,I/P SIDE LH (BLACK)	1	Rp19.500
32	73410-74U00-5PK	BOX,GLOVE (BLACK)	1	Rp336.000
33	73413M65D00-000	.CUSHION,GLOVE BOX	2	Rp6.500
34	73430-63J02-5PK	.LOCK,GLOVE BOX (BLACK)	1	Rp187.000
35	73461M53M00-000	.CUSHION, GLOVE BOX SIDE	2	Rp7.000
36	03541-0412A-000	.SCREW (4X12)	2	Rp3.500
37	73461-77R00-000	CUSHION,GLOVE BOX	1	Rp33.500
38	73810-55T00-5PK	COVER,STRG COLUMN HOLE (BLACK)	1	Rp80.000
39	73812-55T00-5PK	.POCKET,STRG COLUMN HOLE COVER(BLACK)	1	Rp15.500
40	03541-0516A-000	.SCREW	3	Rp3.500
41	73830-74T00-E5F	GARNISH,I/P DRVR (SILVER/BLACK)	1	Rp171.000
42	73833-74T10-QZH	.ORNAMENT,I/P DRVR UPPER (SILVER)	1	Rp129.500
43	03541-0410A-000	.SCREW	4	Rp11.000
44	73869-74T00-5PK	ORNAMENT,I/P CTR LOWER (BLACK)	1	Rp64.500
45	09409-08352-000	.CLIP	6	Rp19.000
46	73865-74T00-5PK	GARNISH,I/P ASST (BLACK)	1	Rp37.000
47	09409-08351-000	.CLIP	3	Rp21.000
48	73867-74T10-QWP	ORNAMENT,I/P ASST (SILVER)	1	Rp414.000
49	09409-08352-000	.CLIP	9	Rp19.000
50	73832-74T00-5PK	BASE, I/P SIDE RH (BLACK)	1	Rp19.500
51-2	73835-74T10-QWR	BEZEL,I/P SWITCH (BORDEAUX)	1	Rp54.000
51-1	73835-74T00-QWR	BEZEL,I/P SWITCH (BORDEAUX)	1	Rp54.000
52	09409-08351-000	.CLIP	2	Rp21.000
53	73861-74T10-QZH	ORNAMENT,I/P ASST UPPER (SILVER)	1	Rp441.500
54	09409-08352-000	.CLIP	9	Rp19.000
55	73862-74T00-QWR	GARNISH,I/P CTR LOWER (BORDEAUX)	1	Rp116.000
56	09409-08352-000	.CLIP	9	Rp19.000
57	09148-05045-000	NUT (M5)	2	Rp4.000
58	73890-55T00-000	COVER,I/P UNDER ASST	1	Rp73.000
59	73132-57L00-000	.CAP,I/P PIN	2	Rp38.000
60	03541-0516A-000	SCREW	2	Rp3.500
61	03541-0516A-000	SCREW	4	Rp3.500
62	73870-74T00-E5D	ORNAMENT,I/P DRVR (SILVER/BORDEAUX)	1	Rp191.500
63	03541-0410A-000	.SCREW	3	Rp11.000
64	73910M55T00-000	MODULE ASSY,PASSENGER AIR BAG	1	Rp2.341.500
65	01551-0816C-000	BOLT (8X16)	2	Rp13.500
66	03541-0516A-000	SCREW	2	Rp3.500
67	09409-07340-000	CLIP (6.8X11.5)	2	Rp17.500
