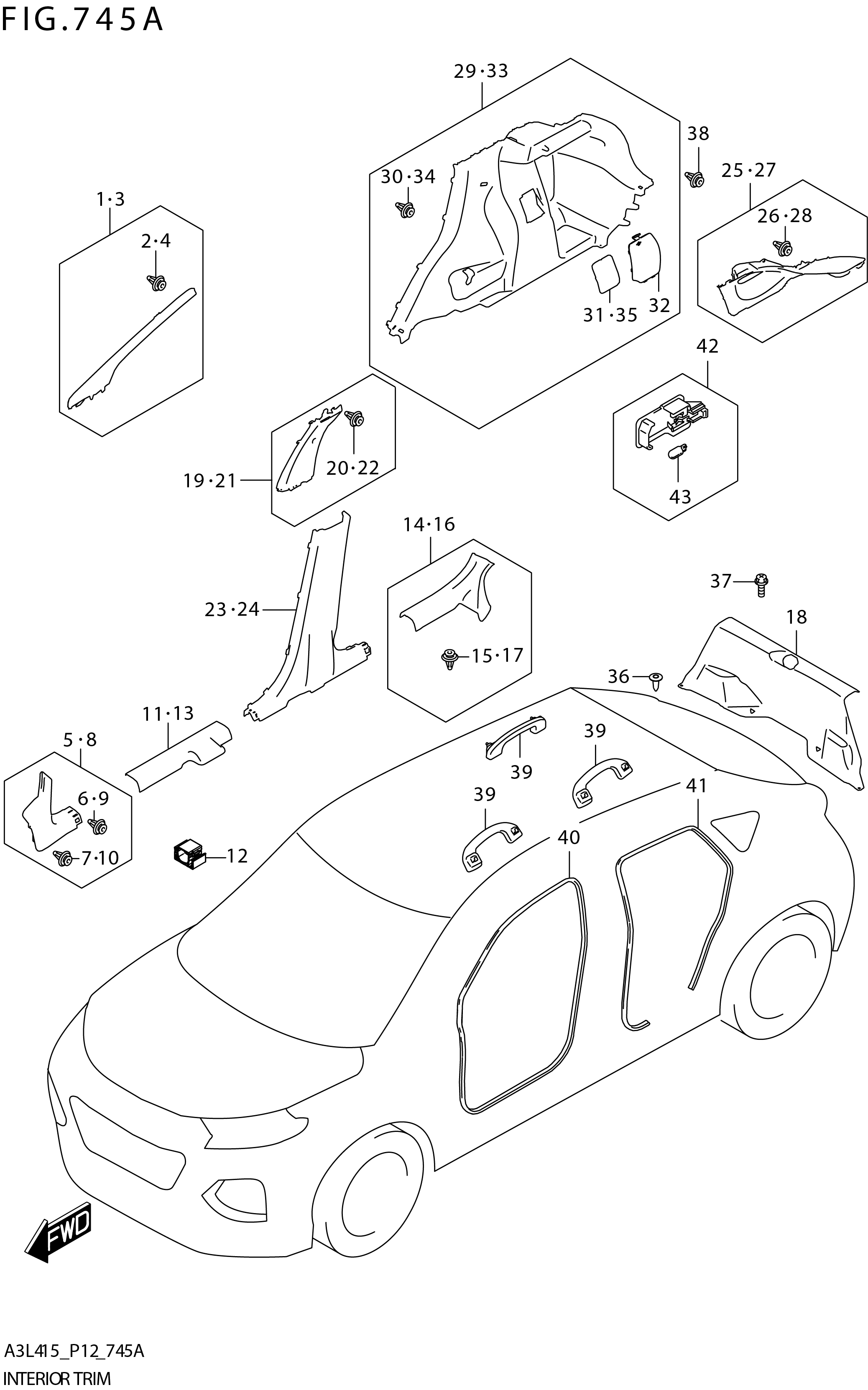

FIG. 745A INTERIOR TRIM

No	No. Part	Description	Qty	Price Per Pcs
1	76110-74U00-6GS	TRIM,FRONT PILLAR,R (GRAY)	1	Rp59.500
2	09409-10313-000	.CLIP	3	Rp14.000
3	76120-74U00-6GS	TRIM,FRONT PILLAR,L (GRAY)	1	Rp58.000
4	09409-10313-000	.CLIP	3	Rp14.000
5	76130-74U00-5PK	TRIM,DASH SIDE,R (BLACK)	1	Rp52.000
6	09409-08349-000	.CLIP	1	Rp4.500
7	09409-10312-000	.CLIP	1	Rp10.000
8	76140-74U00-5PK	TRIM,DASH SIDE,L (BLACK)	1	Rp52.000
9	09409-08349-000	.CLIP	1	Rp4.500
10	09409-10312-000	.CLIP	1	Rp10.000
11	76151-74U00-5PK	SCUFF,SIDE SILL FRONT,R (BLACK)	1	Rp30.500
12	76158-71L00-000	CLAMP,SIDE SILL SCUFF	10	Rp34.500
13	76161-74U00-5PK	SCUFF,SIDE SILL FRONT,L (BLACK)	1	Rp30.500
14	76170-74U00-5PK	SCUFF,SIDE SILL REAR,R (BLACK)	1	Rp47.000
15	09409-10312-000	.CLIP	1	Rp10.000
16	76180-74U00-5PK	SCUFF,SIDE SILL REAR,L (BLACK)	1	Rp47.000
17	09409-10312-000	.CLIP	1	Rp10.000
18	76191-74U00-5PK	TRIM,TAIL END (BLACK)	1	Rp129.000
19	76210-74U00-6GS	TRIM,CTR PILLAR UPPER,R (GRAY)	1	Rp69.500
20	09409-10312-000	.CLIP	1	Rp10.000
21	76220-74U00-6GS	TRIM,CTR PILLAR UPPER,L (GRAY)	1	Rp69.500
22	09409-10312-000	.CLIP	1	Rp10.000
23	76231-74U00-5PK	TRIM,CTR PILLAR LOWER,R (BLACK)	1	Rp118.500
24	76241-74U00-5PK	TRIM,CTR PILLAR LOWER,L (BLACK)	1	Rp119.500
25	76250-74U00-6GS	TRIM,QUARTER UPPER,R (GRAY)	1	Rp225.000
26	09409-10312-000	.CLIP	6	Rp10.000
27	76260-74U00-6GS	TRIM,QUARTER UPPER,L (GRAY)	1	Rp225.000
28	09409-10312-000	.CLIP	6	Rp10.000
29	76270-74U00-5PK	TRIM,QUARTER LOWER,R (BLACK)	1	Rp602.500
30	09409-10312-000	.CLIP	4	Rp10.000
31	76272-74U00-5PK	.CAP,QUARTER LOWER TRIM (BLACK)	1	Rp11.500
32	76275-74U00-5PK	.LID,JACK (BLACK)	1	Rp72.500
33	76280-74U00-5PK	TRIM,QUARTER LOWER,L (BLACK)	1	Rp602.500
34	09409-10312-000	.CLIP	4	Rp10.000
35	76272-74U00-5PK	.CAP,QUARTER LOWER TRIM (BLACK)	1	Rp11.500
36	75115-52R00-000	SEAL,FL CARPET CLIP	2	Rp43.000
37	02162-0612A-000	SCREW (6X12)	2	Rp11.000
38	09409-06341-000	CLIP	2	Rp4.000
39	76410M79M20-6GS	GRIP,ASSISTANT (GRAY)	3	Rp82.500
40	76291-74U00-000	TRIM,FRONT DOOR OPENING	2	Rp234.500
41	76295-74U00-000	TRIM,REAR DOOR OPENING	2	Rp186.000
42	36210M75JA0-000	LAMP ASSY,LUGGAGE ROOM	1	Rp62.500
43	09471-12216-000	.BULB (12V5W)	1	Rp15.000
