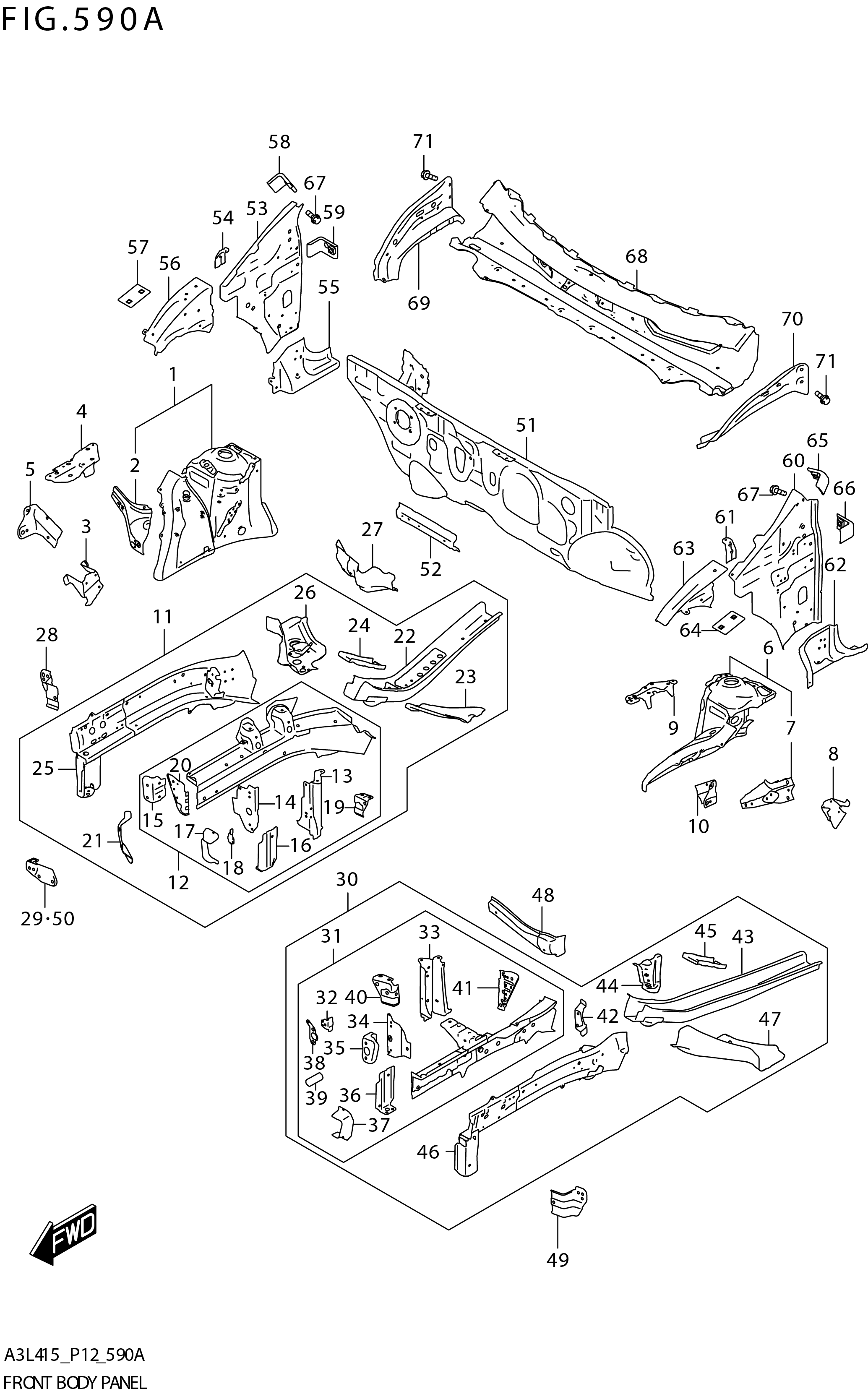

FIG. 590A FRONT BODY PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	58310-74U00-000	PANEL,FENDER APRON,R	1	Rp1.020.000
2	58315-74T00-000	.EXTENSION,FR FENDER LWR BRKT,R	1	Rp145.500
3	58316-74T00-000	EXTENSION,FR FENDER UPR BRKT,R	1	Rp44.000
4	58317-74T00-000	BRACKET,FRONT FENDER UPR FR,R	1	Rp41.000
5	58322-74T00-000	BRACKET,FRONT FENDER LWR,R	1	Rp36.500
6	58410-74U00-000	PANEL,FENDER APRON,L	1	Rp1.006.500
7	58415-74T00-000	.EXTENSION,FR FENDER LWR BRKT,L	1	Rp148.500
8	58416-74T00-000	EXTENSION,FR FENDER UPR BRKT,L	1	Rp39.500
9	58417-74T00-000	BRACKET,FRONT FENDER UPR FR,L	1	Rp41.000
10	58422-74T00-000	BRACKET,FRONT FENDER LWR,L	1	Rp36.500
11	58600-74U00-000	MEMBER,FRONT SIDE,R	1	Rp5.374.000
12	58610-74U00-000	.MEMBER,APRON SIDE,R	1	Rp1.995.500
13	58614-74T00-000	..BRACE,LAMP SUPPORT,R	1	Rp107.000
14	58615-74T00-000	..PLATE,APRON SIDE MEMBER FR,RH	1	Rp116.000
15	58616-68P00-000	..EXTENSION,APRON SIDE MBR INS,R	1	Rp74.500
16	58618-68P00-000	..BRACE,RADIATOR SUPPORT INNER,R	1	Rp42.500
17	58619-68P00-000	..EXTENSION,APRON SIDE MBR OUT, R	1	Rp61.000
18	58665-68P00-000	..BRACKET,FR BUMPER MEMBER	1	Rp18.000
19	58669-74T00-000	..REINF,LAMP SUPPORT BRACE,RH	1	Rp40.500
20	58668-74T00-000	..PANEL,LAMP SUPPORT,R	1	Rp79.000
21	58662-74T00-000	.BRACKET, FR BUMPER MBR RR RH	1	Rp40.500
22	58620-68P10-000	.MEMBER,DASH LWR,R	1	Rp1.451.000
23	58625-68P00-000	.EXTENSION,DASH LWR INNER,R	1	Rp96.500
24	58628-68P10-000	.REINF,APRON SIDE MEMBER RR,R	1	Rp61.500
25	58630-74U00-000	.MEMBER,APRON SIDE OUTER,R	1	Rp1.296.000
26	58640-68P00-000	.EXTENSION,DASH LWR OTR,R	1	Rp402.000
27	58650M68P00-000	CROSSMEMBER,DASH UPR,R	1	Rp65.000
28	58671-74T00-000	BRACKET,HEAD LAMP LOWER,R	1	Rp40.500
29	58672-74T00-000	BRACKET,HEAD LAMP CTR,R FRONT BODY PANEL	1	Rp17.000
30	58700-74U00-000	MEMBER,FRONT SIDE,L	1	Rp5.374.000
31	58710-74U00-000	.MEMBER,APRON SIDE,L	1	Rp1.995.500
32	58665-68P00-000	..BRACKET,FR BUMPER MEMBER	1	Rp18.000
33	58714-74T00-000	..BRACE,LAMP SUPPORT,L	1	Rp107.000
34	58715-74T00-000	..PLATE,APRON SIDE MEMBER FR,L H	1	Rp116.000
35	58716-68P00-000	..EXTENSION,APRON SIDE MBR,L	1	Rp74.500
36	58718-68P00-000	..BRACE,RDTR SUPPORT INNER,L	1	Rp42.500
37	58719-74T00-000	..EXTENSION,APRON SIDE MBR,OUT,L	1	Rp61.000
38	58762-68P00-000	..REINF,TOWING HOOK NUT FR	1	Rp21.000
39	58763-68P00-000	..NUT,TOWING HOOK	1	Rp148.000
40	58769-74T00-000	..REINF,LAMP SUPPORT BRACE,LH	1	Rp40.500
41	58768-74T00-000	..PANEL,LAMP SUPPORT,L	1	Rp79.000
42	58762-74T00-000	.BRACKET, FR BUMPER MBR RR LH	1	Rp40.500
43	58720-68P10-000	.MEMBER,DASH LWR,L	1	Rp1.451.000
44	58725-68P00-000	.EXTENSION,DASH LWR INNER,L	1	Rp96.500
45	58728-68P10-000	.REINF,APRON SIDE MEMBER RR,L	1	Rp65.500
46	58730-74U00-000	.MEMBER,APRON SIDE OUTER,L	1	Rp1.296.000
47	58740-68P00-000	.EXTENSION,DASH LWR OTR,L	1	Rp402.500
48	58750M68P00-000	CROSSMEMBER,DASH UPR,L	1	Rp65.000
49	58771-74T00-000	BRACKET,HEAD LAMP LOWER,L	1	Rp40.500
50	58772-74T00-000	BRACKET,HEAD LAMP CTR MTG,L	1	Rp17.000
51-1	59100-74U00-000	PANEL,DASH	1	Rp2.250.000
51-2	59100-74U20-000	PANEL,DASH	1	Rp2.208.000
52	59221-68P10-000	CROSSMEMBER,DASH UPR CTR	1	Rp97.500
53	59231-74U00-000	PANEL,DASH SIDE,R	1	Rp601.500
54	59233-55T00-000	BRACKET,FRONT FENDER	1	Rp12.500
55	59234M55T00-000	PANEL,DASH SIDE LOWER,R	1	Rp165.500
56	59232-55T00-000	PANEL,DASH SIDE FRONT,R	1	Rp339.500
57	59235-55T00-000	PATCH,FRONT HOOD HINGE	1	Rp11.000
58	62133-63J00-000	BRACKET,I/P UPR	1	Rp43.000
59	64113M63J00-000	BRACKET,FR FNDR	1	Rp7.500
60	59281-74U00-000	PANEL,DASH SIDE,L	1	Rp600.000
61	59233-55T00-000	BRACKET,FRONT FENDER FRONT BODY PANEL	1	Rp12.500
62	59284M55T00-000	PANEL,DASH SIDE LOWER,L	1	Rp165.500
63	59282-55T00-000	PANEL,DASH SIDE FRONT,L	1	Rp339.500
64	59235-55T00-000	PATCH,FRONT HOOD HINGE	1	Rp11.000
65	62133-63J00-000	BRACKET,I/P UPR	1	Rp43.000
66	64113M63J00-000	BRACKET,FR FNDR	1	Rp7.500
67	01550-0612A-000	BOLT (6X12)	2	Rp3.500
68	59000-74U00-000	PANEL,COWL BOX	1	Rp1.038.500
69	59411M55T00-000	MEMBER,COWL SIDE OUTER,R	1	Rp242.500
70	59461M55T00-000	MEMBER,COWL SIDE OUTER,L	1	Rp242.500
71	01550-0820A-000	BOLT (8X20)	6	Rp5.500
