FRONX

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG. 570A FRONT HOOD PANEL FIG. 580A FRONT FENDER PANEL FIG. 590A FRONT BODY PANEL FIG. 600A FLOOR PANEL FIG. 640A SIDE BODY PANEL FIG. 660A ROOF PANEL (N_AEBR)FIG. 660B ROOF PANEL (W_AEBMCR)FIG. 706A BATTERY TRAY FIG. 717A FRONT BUMPER (N_AEBR)FIG. 717B FRONT BUMPER (W_AEBMCR)FIG. 718A REAR BUMPER FIG. 720A INSTRUMENT PANEL (N_AEBR)FIG. 720B INSTRUMENT PANEL (W_AEBMCR)FIG. 730A VENTILATOR FIG. 732A HEATERUNIT FIG. 735A HEATERBLOWER FIG. 736A HEATERDOOR FIG. 737A EVAPORATOR UNIT FIG. 740A CONSOLE BOX (GL)FIG. 740B CONSOLE BOX (GLX:N_AEBR)FIG. 740C CONSOLE BOX (GLX:W_AEBMCR)FIG. 741A FLOOR CARPET (GL)FIG. 741B FLOOR CARPET (GLX) FIG. 745A INTERIOR TRIM FIG. 750A COVER/CAP (GL)FIG. 750B COVER/CAP (GLX)FIG. 755A FUEL LID OPENER FIG. 758A ROOF SIDE AIR BAG FIG. 760A ROOF LINING (N_AEBR)FIG. 760B ROOF LINING (W_AEBMCR)FIG. 772A MOLDING (GL:5MT)FIG. 772B MOLDING (GLX:5MT)FIG. 772C MOLDING (GL:4AT)FIG. 772D MOLDING (GLX:6AT)FIG. 774A SPLASHGUARD FIG. 780A EMBLEM FIG. 780B EMBLEM FIG. 790A WINDSHIELD (N_AEBR)FIG. 790B WINDSHIELD (W_AEBMCR)FIG. 800A FRONT DOOR PANEL FIG. 801A REAR DOOR PANEL FIG. 805A BACK DOOR PANEL FIG. 810A FRONT DOOR REGULATOR FIG. 811A REAR DOOR REGULATOR FIG. 820A FRONT DOOR LOCK (GL)FIG. 820B FRONT DOOR LOCK (GLX)FIG. 821A REAR DOOR LOCK FIG. 824A BACK DOOR LOCK FIG. 835A MIRROR BR FIG. 835B MIRROR BMCR FIG. 840A SEAT BELT FIG. 848A FRONT LH SEAT (N_AEBR)FIG. 848B FRONT LH SEAT (W_AEBMCR)FIG. 849A FRONT RH SEAT (N_AEBR)FIG. 849B FRONT RH SEAT (W_AEBMCR)FIG. 850A REAR SEAT (N_AEBR)FIG. 850B REAR SEAT (W_AEBMCR)FIG. 860A PARCELSHELF FIG. 865A FUEL TANK FIG. 893A TOOL FIG. 952A AIR CONDITIONER (GL)FIG. 952B AIR CONDITIONER (GLX)FIG. 990A COMPRESSOR (GL)FIG. 990B COMPRESSOR (GLX)

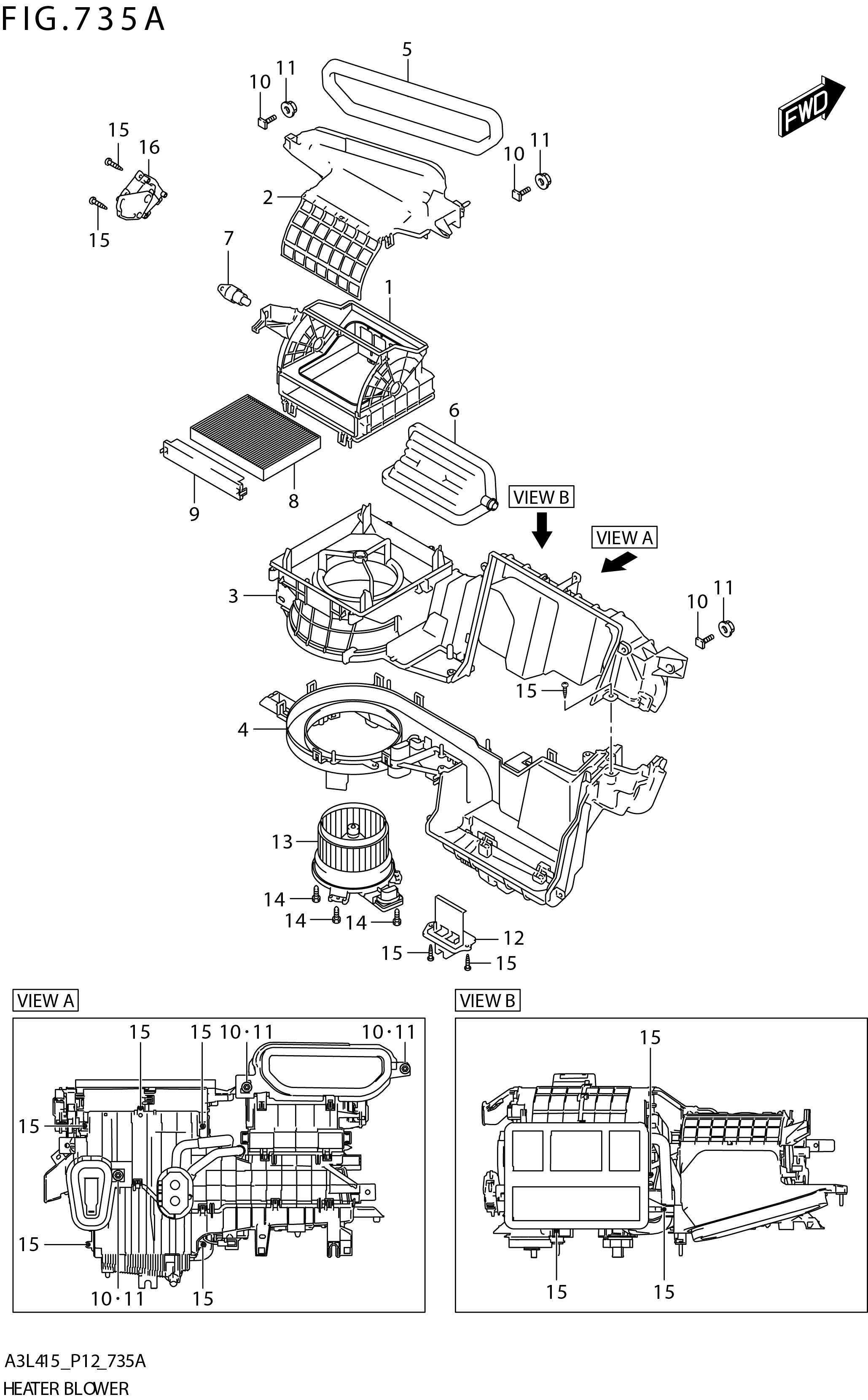

FIG. 735A HEATERBLOWER

FIG. 735A HEATERBLOWER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	74113-73RE0-000	CASE,BLOWER	1	Rp134.000
2	74213-74U30-000	CASE,BLOWER INTAKE	1	Rp149.500
3	74211-74U30-000	CASE,BLOWER UPPER	1	Rp292.500
4	74212-73RG0-000	CASE,BLOWER	1	Rp280.500
5	74119-74U30-000	PACKING	1	Rp63.500
6	74173-73RL0-000	DOOR S/ASSY	1	Rp91.000
7	74281-73RL0-000	LEVER	1	Rp11.500
8	95850-73R00-000	FILTER,AIR	1	Rp131.500
9	95861-73R00-000	HOLDER,FILTER	1	Rp26.500
10	74115-85D10-000	BOLT	3	Rp15.000
11	74119-78F10-000	BUSH	3	Rp8.000
12	95626-74U30-000	POWER TRANSISTOR ASSY,BLOWER	1	-
13	74150-73RG0-000	MOTOR ASSY,W/FAN	1	Rp969.000
14	94135-82000-000	SCREW	3	Rp53.500
15	03112-0416A-000	SCREW	13	Rp23.500
16	95655-73RL0-000	SERVO & ACCESSORY ASSY,R/F	1	Rp268.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
