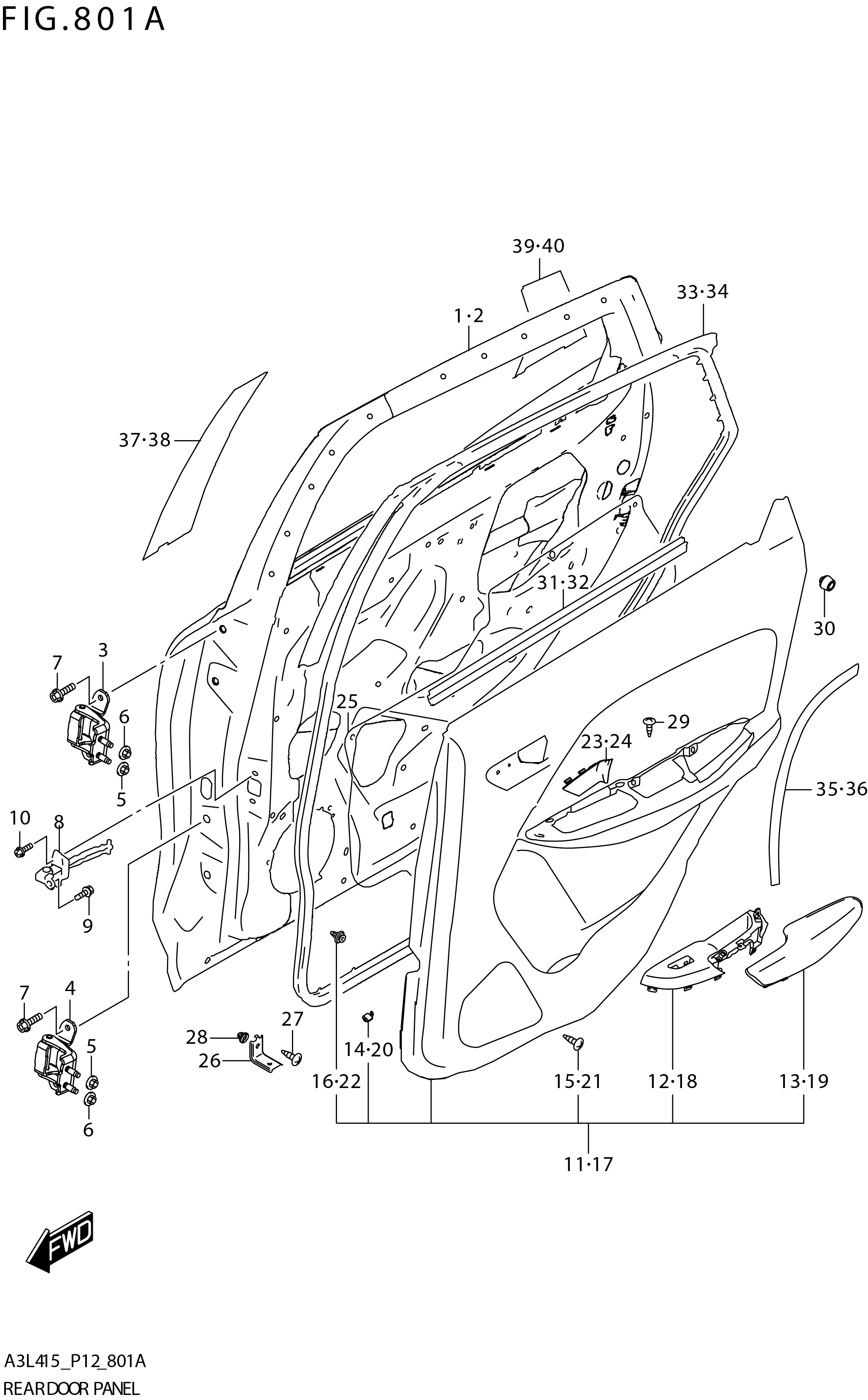

FIG. 801A REAR DOOR PANEL

No	No. Part	Description	Qty	Price Per Pcs
1	68003-74U00-000	PANEL ASSY,REAR DOOR,R	1	Rp2.761.500
2	68004-74U00-000	PANEL ASSY,REAR DOOR,L	1	Rp2.761.500
3	69410-68L00-000	HINGE,RR DR UPR,R	2	Rp75.500
4	69420-68L00-000	HINGE,RR DR UPR,L	2	Rp77.000
5	08361-2508A-000	NUT	4	Rp16.500
6	09159M08151-000	NUT (M8)	4	Rp11.500
7	09103-08546-000	BOLT (8X24)	8	Rp26.500
8	81830M75L01-000	STOP, REAR DOOR OPEN	2	Rp89.500
9	09112-08015-000	BOLT (8X25)	2	Rp32.000
10	82131-50M00-000	BOLT	4	Rp18.000
11-1	83730-74U00-FKF	TRIM,REAR DOOR,R	1	Rp914.500
11-2	83730-74U10-FKJ	TRIM,REAR DOOR,R	1	Rp1.049.500
12-2	83735-74U10-QEK	.BEZEL,P/W SWITCH REAR,R (BLACK)	1	Rp196.000
12-1	83735-74U00-5PK	.BEZEL,P/W SWITCH REAR,R (BLACK)	1	Rp63.000
13-1	83738-74U00-WRU	.ARMREST,RR DR TRIM,R (BORDEAUX)	1	Rp185.500
13-2	83738-74U10-FKV	.ARMREST,REAR DOOR TRIM,R	1	Rp188.000
14	83752-80J00-5PK	.CAP,SIDE DR INS CASE (BLACK)	1	Rp74.000
15	03541-0410A-000	.SCREW	24	Rp11.000
16	09409-10327-000	.CLIP	11	Rp5.000
17-1	83740-74U00-FKF	TRIM,REAR DOOR,L	1	Rp914.500
17-2	83740-74U10-FKJ	TRIM,REAR DOOR,L	1	Rp1.049.500
18-1	83745-74U00-5PK	.BEZEL,P/W SWITCH REAR,L (BLACK)	1	Rp63.000
18-2	83745-74U10-QEK	.BEZEL,P/W SWITCH REAR,L (BLACK)	1	Rp196.000
19-1	83748-74U00-WRU	.ARMREST,RR DR TRIM,L (BORDEAUX)	1	Rp185.500
19-2	83748-74U10-FKV	.ARMREST,REAR DOOR TRIM,L	1	Rp188.000
20	83752-80J00-5PK	.CAP,SIDE DR INS CASE (BLACK)	1	Rp74.000
21	03541-0410A-000	.SCREW	24	Rp11.000
22	09409-10327-000	.CLIP	11	Rp5.000
23	83755-74L00-5PK	CAP,INSIDE HDL BEZEL,R (BLACK)	1	Rp24.000
24	83756-74L00-5PK	CAP,INSIDE HDL BEZEL,L (BLACK)	1	Rp24.000
25	83913M55T00-000	COVER,REAR DOOR SEALING	2	Rp21.500
26	83751-67P00-000	BRACKET,DR TRIM	2	Rp11.500
27	03141M0612A-000	SCREW	2	Rp4.500
28	71851M70F00-000	NUT (M6)	2	Rp4.000
29	09132-05058-000	SCREW (5X12)	2	Rp14.000
30	82711-65J00-000	CUSHION	2	Rp34.000
31	83871-74U00-000	WEATHERSTRIP,RR DOOR INNER,R	1	Rp121.500
32	83881-74U00-000	WEATHERSTRIP,RR DOOR INNER,L	1	Rp121.500
33	84661-74U00-000	WEATHERSTRIP,REAR DOOR OPNG,R	1	Rp198.000
34	84671-74U00-000	WEATHERSTRIP,REAR DOOR OPNG,L	1	Rp198.000
35	84662-74U00-000	WEATHERSTRIP,REAR DOOR DUST,R	1	Rp85.000
36	84672-74U00-000	WEATHERSTRIP,REAR DOOR DUST,L	1	Rp85.000
37	83931-74U00-0CB	TAPE,RR DR OUTER FR,R (BLACK)5,EYP,EC38,FD1	1	Rp50.500
38	83932-74U00-0CB	TAPE,RR DR OUTER FR,L (BLACK)5,EYP,EC38,FD1	1	Rp50.500
39	83933-74U00-0CB	TAPE,RR DR OUTER RR,R (BLACK)5,EYP,EC38,FD1	1	Rp58.000
40	83934-74U00-0CB	TAPE,RR DR OUTER RR,L (BLACK)5,EYP,EC38,FD1	1	Rp58.000
