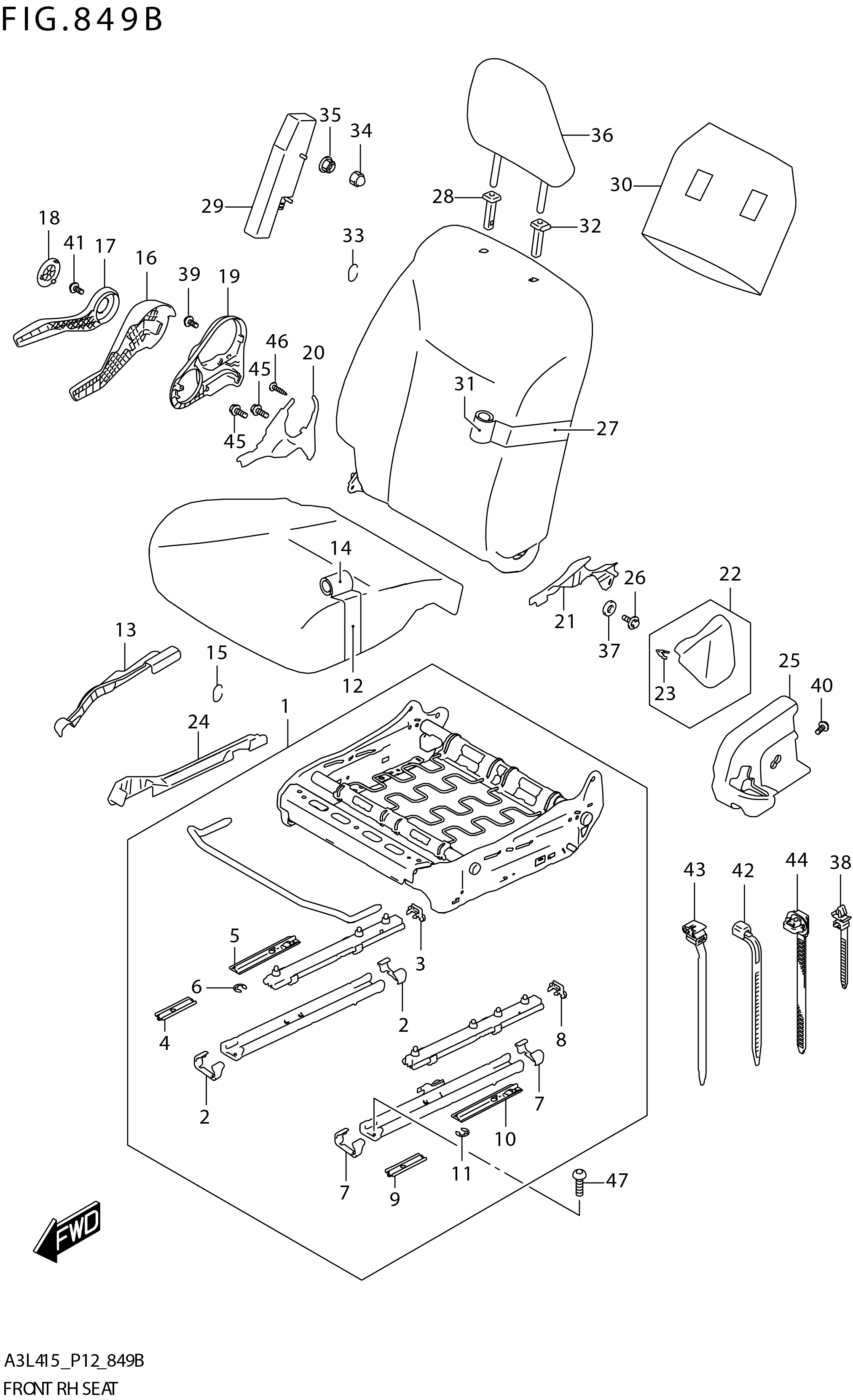

FIG. 849B FRONT RH SEAT (W_AEBMCR)

No	No. Part	Description	Qty	Price Per Pcs
1	85103-74U60-000	FRAME ASSY,FR CUSH,R	1	Rp3.883.000
2	86652M74P50-000	.CAP,FR ADJ LWR	2	Rp5.500
3	86653M74P50-000	.CAP,FR ADJ UPR	1	Rp5.500
4	86656-74P50-000	.PROTECTOR,FR ADJ FR	1	Rp8.500
5	86657-68P00-000	.PROTECTOR,FR ADJUSTER REAR	1	Rp10.000
6	86658-68P00-000	.RING,FR ADJUSTER REAR	2	Rp6.500
7	86652M74P50-000	.CAP,FR ADJ LWR	2	Rp5.500
8	86653M74P50-000	.CAP,FR ADJ UPR	1	Rp5.500
9	86656-74P50-000	.PROTECTOR,FR ADJ FR	1	Rp8.500
10	86657-68P00-000	.PROTECTOR,FR ADJUSTER REAR	1	Rp10.000
11	86658-68P00-000	.RING,FR ADJUSTER REAR	2	Rp6.500
12	85160-74U10-000	PAD,FR CUSH	1	Rp328.000
13	85226-81R21-000	SUPPORT,FR CUSH PAD LOWER,R	1	Rp18.000
14	85180-74U20-FKU	TRIM,FR CUSH,R	1	Rp846.500
15	09387-19001-000	RING (OD:22.6)	14	Rp9.000
16	85211-76T00-5PK	KNOB,RCLNG,R (BLACK)	1	Rp77.000
17	85213-62R20-5PK	LEVER,SEAT LIFTER,R (BLACK)	1	Rp46.500
18	85214-68P20-5PK	CAP,LIFTER LEVER (BLACK)	1	Rp8.500
19	85221-62R20-5PK	COVER,FR RCLNG OUT,R (BLACK)	1	-
20	85222-68P00-5PK	COVER,FR RCLNG INS LWR,R (BLACK)	1	Rp10.500
21	85222-73R00-5PK	COVER,RCLNG INS LWR,R (BLACK)	1	Rp8.000
22	85241-68P10-5PK	COVER,RCLNG INS,R (BLACK)	1	Rp11.500
23	85249-68P00-000	.CLIP	1	Rp10.500
24	85244-68P20-5PK	COVER,RISER OUTSIDE,R (BLACK)	1	Rp15.500
25	85280-73S00-000	COVER,FR HARNESS BRKT,R	1	Rp12.000
26	85295-58J01-000	BOLT,FR BACK FIX	1	Rp34.000
27	85305-74UA0-000	BACK S/ASSY,FR,R	1	Rp2.802.000
28	85341-73R00-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp53.000
29	85350-74U00-000	MODULE ASSY,SIDE AIR BAG	1	Rp1.134.000
30	85369-73R00-000	SILENCER,FR BACK	1	Rp42.000
31	85380-74UD0-FKU	TRIM,FR BACK,R	1	Rp1.836.500
32	85840-73R00-P4Z	GUIDE,HEADRESTRAINT (GRAY)	1	Rp53.000
33	09387-19001-000	RING (OD:22.6)	16	Rp9.000
34	08313-2006A-000	NUT	1	Rp14.000
35	08319-3106A-000	NUT	2	Rp6.500
36	86401-69T70-FKW	HEADRESTRAINT ASSY	1	Rp1.054.500
37	87286-81P00-000	BUSH,FR BACK FIX	1	Rp37.000
38	96619-59L00-000	CLAMP	1	Rp24.500
39	09132-04037-000	SCREW (4X10)	1	Rp15.000
40	09132-04037-000	SCREW (4X10)	1	Rp15.000
41	09132-05064-000	SCREW (5X11)	2	Rp17.500
42	36990-25G00-000	CLAMP (L:125)	1	Rp13.000
43	09407M14414-000	CLAMP (L:140)	1	Rp6.500
44	09407-17403-000	CLAMP (L:154)	1	Rp3.500
45	01550-1016A-000	BOLT (10X16)	2	Rp5.500
46	03541-0410A-000	SCREW	2	Rp11.000
47	09119-08107-000	BOLT (8X25)	4	Rp5.500
