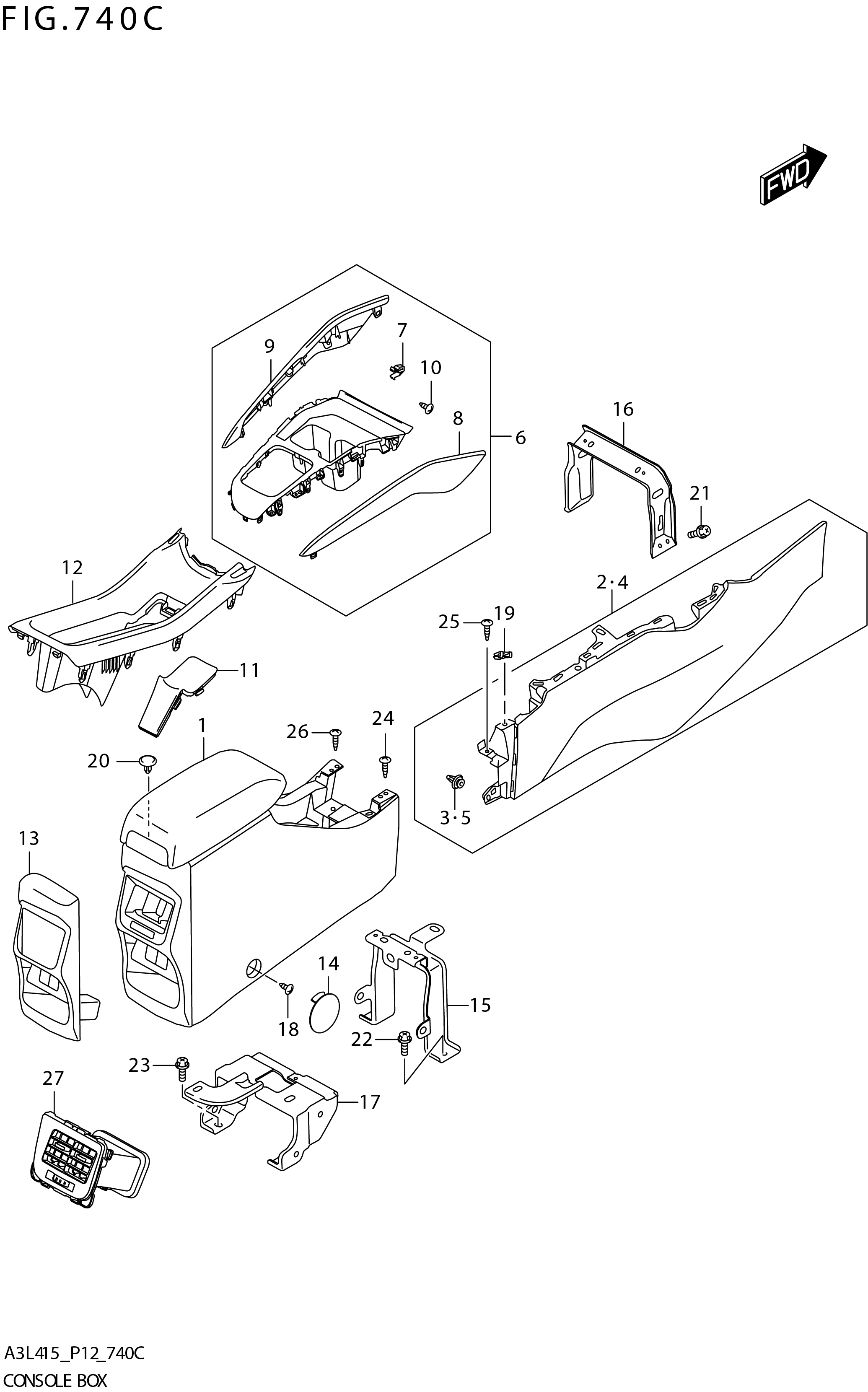

FIG. 740C CONSOLE BOX (GLX:W_AEBMCR)

No	No. Part	Description	Qty	Price Per Pcs
1	75850-74U00-5PK	BOX,FLOOR CONSOLE REAR (BLACK)	1	-
2	75810-74U00-5PK	COVER,FLOOR CSL FR,R (BLACK)	1	Rp165.500
3	09409-10312-000	.CLIP	2	Rp10.000
4	75820-74U00-5PK	COVER,FLOOR CSL FR,L (BLACK)	1	Rp161.500
5	09409-10312-000	.CLIP	2	Rp10.000
6	75830-74T10-E5B	GARNISH,FLOOR CONSOLE (BLACK/SILVER)	1	Rp446.500
7	09409-08351-000	.CLIP	2	Rp21.000
8	75832-55T10-QWP	.ORNAMENT,FL CONSOLE GARNISH (SILVER)	1	Rp142.000
9	75833-55T10-QWP	.ORNAMENT,FL CONSOLE GARNISH (SILVER)	1	Rp167.000
10	03541-0410A-000	.SCREW	8	Rp11.000
11	75835-55T00-5PK	CAP,FLOOR CONSOLE GARNISH (BLACK)	1	-
12	75836-55T10-5PK	GARNISH,FLOOR CONSOLE RR (BLACK)	1	Rp78.500
13	75851-74U00-5PK	COVER,FLOOR CONSOLE BOX RR (BLACK)	1	-
14	75854-72R00-5PK	CAP,FLOOR CONSOLE BOX SIDE (BLACK)	2	Rp14.500
15	75880-55T01-000	BRACKET,FL CSL BOX CTR	1	Rp52.500
16	75880-74T00-000	BRACKET,FL CSL COVER FR	1	Rp100.500
17	75890M55T10-000	BRACKET,FL CONSOLE BOX RR	1	Rp60.000
18	09125-05141-000	SCREW (5X16)	2	Rp19.000
19	09148-05045-000	NUT (M5)	2	Rp4.000
20	09409-06328-000	CLIP	1	Rp20.500
21	02162-0612A-000	SCREW (6X12)	2	Rp11.000
22	02162-0612A-000	SCREW (6X12)	2	Rp11.000
23	02162-0612A-000	SCREW (6X12)	2	Rp11.000
24	03141-0516B-000	SCREW	2	Rp3.500
25	03141-0516B-000	SCREW	4	Rp3.500
26	03541-0516A-000	SCREW	2	Rp3.500
27	73670-74U00-5PK	LOUVER,REAR VENT (BLACK)	1	Rp244.500
