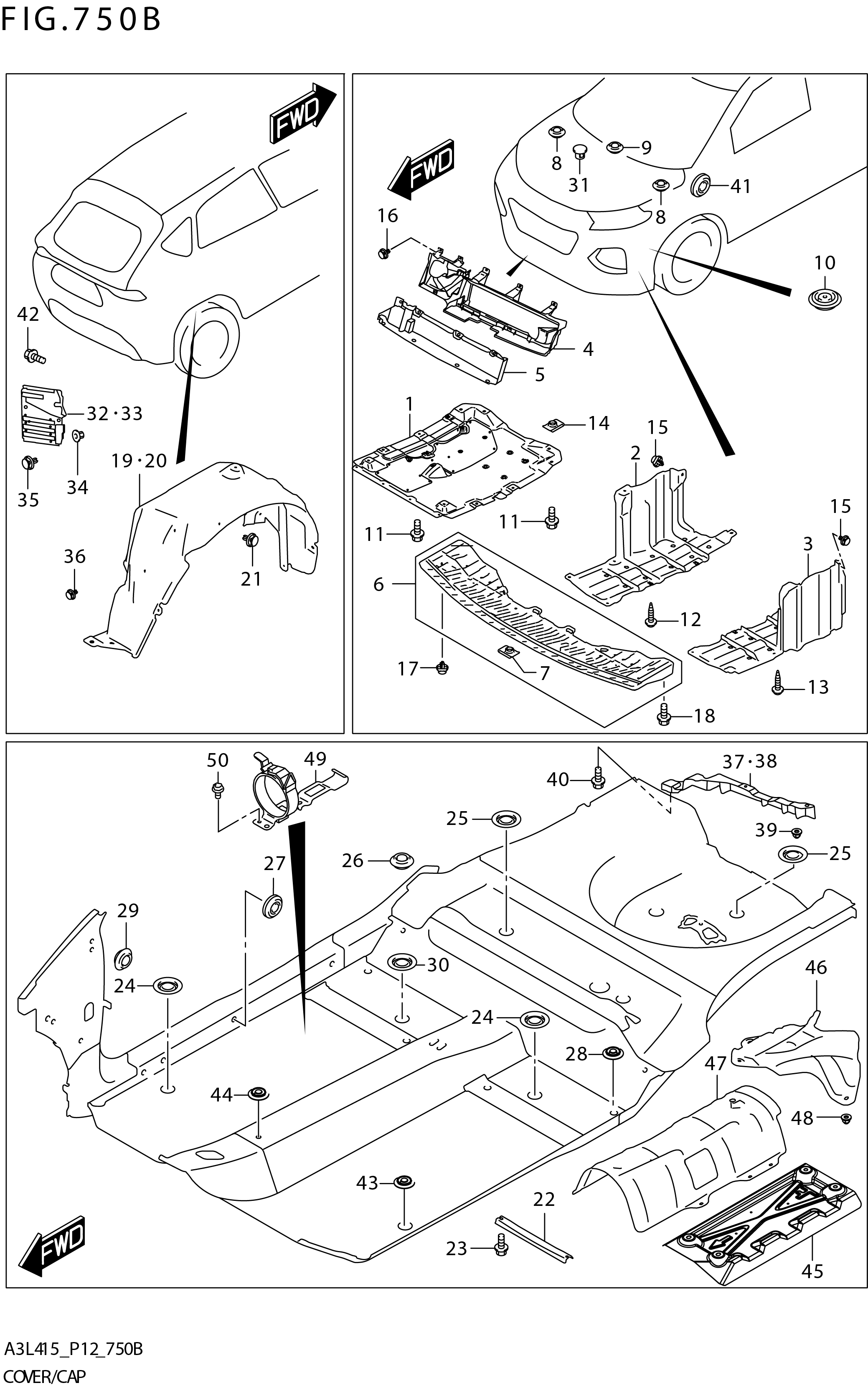

FIG. 750B COVER/CAP (GLX)

No	No. Part	Description	Qty	Price Per Pcs
1	72410-74U00-000	COVER,ENGINE UNDER	1	Rp1.925.000
2	72421-74T00-000	COVER,ENGINE UNDER SIDE,R	1	Rp105.000
3	72422M68P01-000	COVER,ENGINE UNDER SIDE,L	1	Rp99.000
4	72432-74U00-000	COVER,FRONT END UPPER	1	Rp151.000
5	72433-74T00-000	COVER,FRONT END LOWER	1	Rp126.000
6	72460-74U00-000	ABSORBER,FR BUMPER LOWER	1	Rp165.500
7	09148-05047-000	.NUT (M5)	4	Rp3.500
8	09250-10016-000	CAP (OD:18)	2	Rp14.000
9	09250-10016-000	CAP (OD:18)	1	Rp14.000
10	09250M25L02-000	CAP (OD:25.0)	2	Rp5.500
11	09122-76010-000	BOLT	6	Rp64.000
12	09136-05075-000	SCREW (5X16)	8	Rp35.500
13	09136-05075-000	SCREW (5X16)	2	Rp35.500
14	09148-05075-000	NUT	8	Rp14.000
15	09409-07340-000	CLIP (6.8X11.5)	10	Rp17.500
16	09409-08010-000	CLIP	16	Rp5.500
17	09409-08010-000	CLIP	2	Rp5.500
18	02162-0616A-000	SCREW (6X16)	9	Rp3.000
19	72811-74T00-000	LINING,REAR FENDER,R	1	Rp516.500
20	72821-74T00-000	LINING,REAR FENDER,L	1	Rp516.500
21	09409-07340-000	CLIP (6.8X11.5)	12	Rp17.500
22	75591M68P00-000	BRACE,FL TUNNEL	1	Rp49.000
23	01551-0812A-000	BOLT	2	Rp18.500
24	75431-64L00-000	CAP,MAIN FL DRAIN	4	Rp43.000
25	75431-64L00-000	CAP,MAIN FL DRAIN	5	Rp43.000
26	09250-15012-000	CAP (OD:23.5)	2	Rp5.000
27	09250M20036-000	CAP (OD:28.5)	8	Rp3.500
28	09250-25007-000	CAP (OD:25)	1	Rp10.500
29	09250-15012-000	CAP (OD:23.5)	2	Rp5.000
30	09250M25L02-000	CAP (OD:25.0)	2	Rp5.500
31	72341M55R00-000	CAP	2	Rp3.500
32	72812-74U00-000	COVER,MAIN FLOOR UNDER,R	1	Rp134.000
33	72822-74U00-000	COVER,MAIN FLOOR UNDER,L	1	Rp134.000
34	14357-72J00-000	NUT,HEAT INSULATOR	10	Rp14.500
35	09409-07340-000	CLIP (6.8X11.5)	4	Rp17.500
36	09148-05059-000	CLIP	4	Rp22.000
37	72813-74T00-000	STRAKE,MAIN FLOOR,R	1	Rp33.500
38	72814-74T00-000	STRAKE,MAIN FLOOR,L	1	Rp33.500
39	14357-72J00-000	NUT,HEAT INSULATOR	4	Rp14.500
40	01551-0616C-000	BOLT (6X16)	2	Rp14.500
41	09250M20036-000	CAP (OD:28.5)	2	Rp3.500
42	02162-0612A-000	SCREW (6X12)	3	Rp11.000
43	09250M15022-000	CAP,FL TUNNEL NO.2	1	Rp6.500
44	09250-15L03-000	CAP	1	Rp5.500
45	14231M74L00-000	INSULATOR,HEAT	1	Rp38.000
46	14232M68P00-000	INSULATOR,PARKING CABLE HEAT	1	Rp67.500
47	14233M68P01-000	INSULATOR,SUB CHMBR HEAT	1	Rp139.500
48	14357-72J00-000	NUT,HEAT INSULATOR	11	Rp14.500
49	75630-73R10-000	BAND,FIRE EXTINGUISHER	1	Rp91.000
50	02162-0612A-000	SCREW (6X12)	3	Rp11.000
