  3. ERTIGA TYPE 1, 2, 3
  4. Engine
  5. FIG.21 EMISSION CONTROL (TYPE 1,TYPE 2)

ERTIGA TYPE 1, 2, 3

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SET (TYPE 1,TYPE 2)FIG.1A ENGINE GASKET SET (TYPE 3)FIG.2 CYLINDER HEAD (TYPE 1,TYPE 2)FIG.2A CYLINDER HEAD (TYPE 3)FIG.3 CYLINDERFIG.4 OIL PAN (TYPE 1,TYPE 2)FIG.4A OIL PAN (TYPE 3)FIG.5 ENGINE MOUNTING (MT:TYPE 1,TYPE 2)FIG.5A ENGINE MOUNTING (MT:TYPE 3)FIG.6 ENGINE MOUNTING (AT:TYPE 1,TYPE 2)FIG.6A ENGINE MOUNTING (AT:TYPE 3)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPE (TYPE 1,TYPE 2)FIG.16A DELIVERY PIPE (TYPE 3)FIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROL (TYPE 1,TYPE 2)FIG.21A EMISSION CONTROL (TYPE 3)FIG.22 LABEL

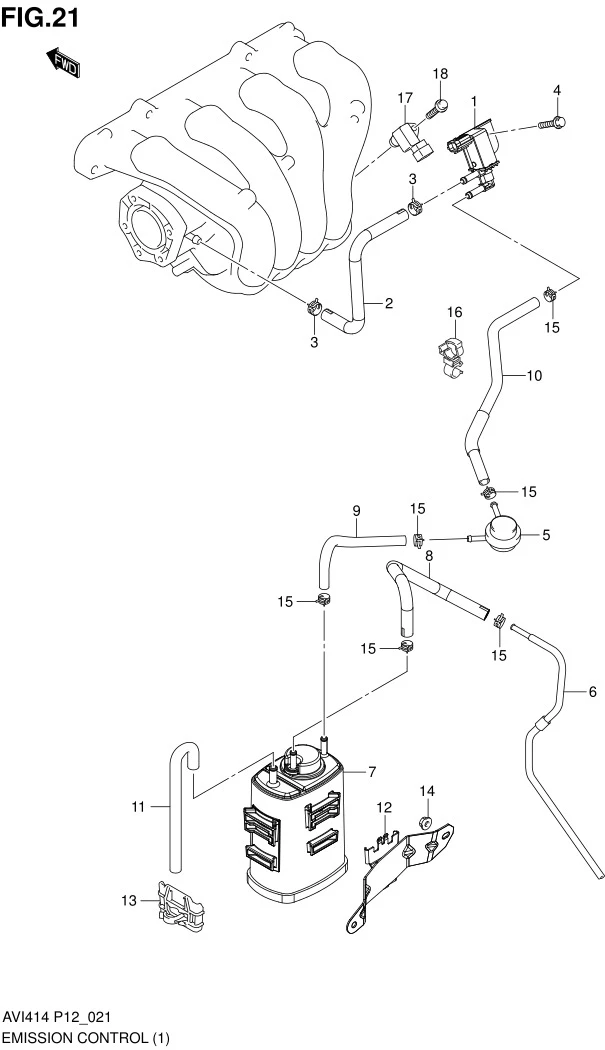

FIG.21 EMISSION CONTROL (TYPE 1,TYPE 2)

FIG.21 EMISSION CONTROL (TYPE 1,TYPE 2)
No No. Part Description Qty Price Per Pcs Remarks
1 18114-77M00-000
SUB: 18114B77M00N000		 VALVE ASSY, DUTY FOR PURGE 1 Rp253.500
2 18564-77M00-000
SUB: 18564B77M00N000		 HOSE, PURGE (VSV TO INMF) 1 Rp52.500
3 09401-10409-000
SUB: 09401-11419-000		 CLIP 2 Rp7.500
4 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
5 18145-83E00-000
SUB: 18145M83E00-000		 CHAMBER, PURGE VALVE 1 Rp71.000
6 18351-77M00-000
SUB: 18351B77M00N000		 PIPE, PURGE (RH) 1 Rp130.000
7 18560-58M00-000
SUB: 18560B58M00N000		 CANISTER 1 Rp342.000
8 18561-77M00-000
SUB: 18561B77M00N000		 HOSE, CANISTER INLET 1 Rp52.500
9 18562-77M00-000
SUB: 18562B77M00N000		 HOSE, PURGE (CSTR TO VSV) 1 Rp48.000
10 18563-77M00-000
SUB: 18563B77M00N000		 HOSE, PURGE (CHMB TO VSV) 1 Rp115.500
11 18567-77M00-000
SUB: 18567B77M00N000		 HOSE, PURGE AIR SUCTION 1 Rp46.500
12 18570-74L10-000
SUB: 18570B74L10N000		 BRACKET, CANISTER (RH) 1 Rp17.000
13-1 18581-72L00-000 CLAMP 1 Rp19.000 TYPE 1 (TO MHYKZE81SDJ120860)
13-2 18581-77M00-000
SUB: 18581B77M00N000		 CLAMP, CANISTER SUCTION 1 Rp6.500 TYPE 1 (FROM MHYKZE81SDJ120861)
13-3 18581-77M00-000
SUB: 18581B77M00N000		 CLAMP, CANISTER SUCTION 1 Rp6.500 TYPE 2
14 09159-06076-000 NUT (M6) 2 Rp19.500
15 09401-10409-000
SUB: 09401-11419-000		 CLIP 6 Rp7.500
16 09408-00251-000 CLAMP 1 Rp46.500
17 18590-67LA0-000
SUB: 18590B67LA0N000		 SENSOR, MAP 1 Rp244.000
18 01550-0620C-000 BOLT 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
