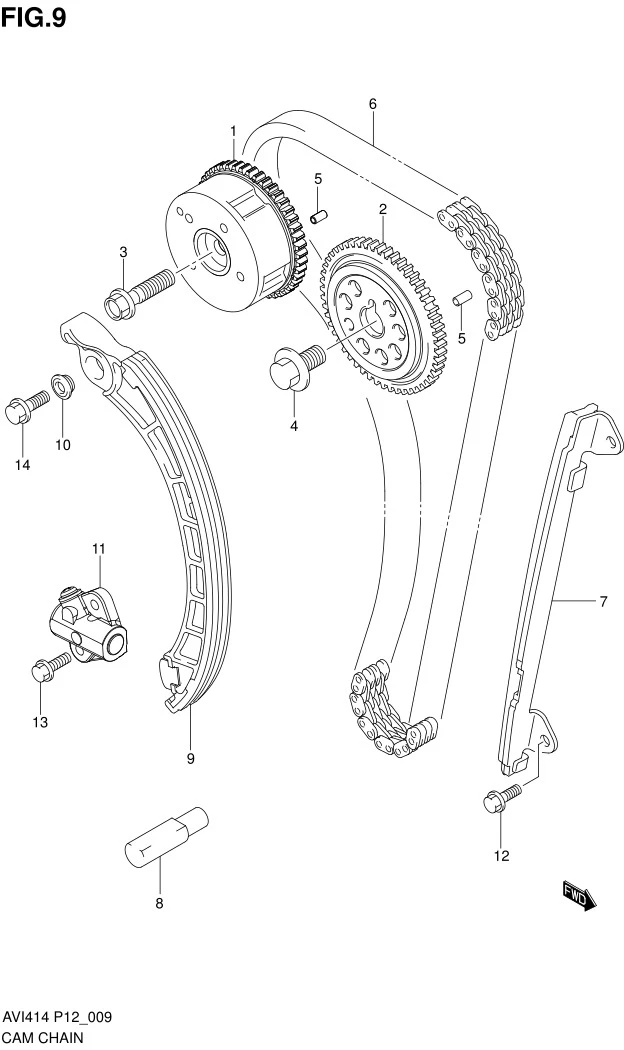

FIG.9 CAM CHAIN

FIG.9 CAM CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 12740-58MA0-000
SUB: 12740B58MA0N000		 SPROCKET ASSY, CAMSHAFT TIMING 1 Rp998.500
2 12742-51K00-000
SUB: 12742B51K00N000		 SPROCKET, CAMSHAFT TIMING EXH 1 Rp119.500
3 12753-69L00-000 BOLT (10X41) 1 Rp33.500
4 12722-67LA0-000
SUB: 12722B67LA0N000		 BOLT, CAMSHAFT SPROCKET 1 Rp9.500
5 09206-05001-000 PIN (3.4X5X10) 2 Rp11.500
6 12761-59R00-000 CHAIN, TIMING 1 Rp384.000
7 12771-59R00-000 GUIDE, TIMING CHAIN 1 Rp95.000
8 12781-69G00-000
SUB: 12781B69G00N000		 JET, TIMING CHAIN 1 Rp24.500
9 12811-59R00-000 TENSIONER, TIMING CHAIN 1 Rp127.500
10 12812M73G10-000 SPACER, TIMING CHAIN TENSIONER 1 Rp13.000
11 12831-67L00-000
SUB: 12831B67L00N000		 ADJUSTER ASSY, TENSIONER 1 Rp697.500
12 01550-0616A-000
SUB: 01550B0616AN000		 BOLT 2 Rp3.500
13 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 2 Rp3.500
14 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
