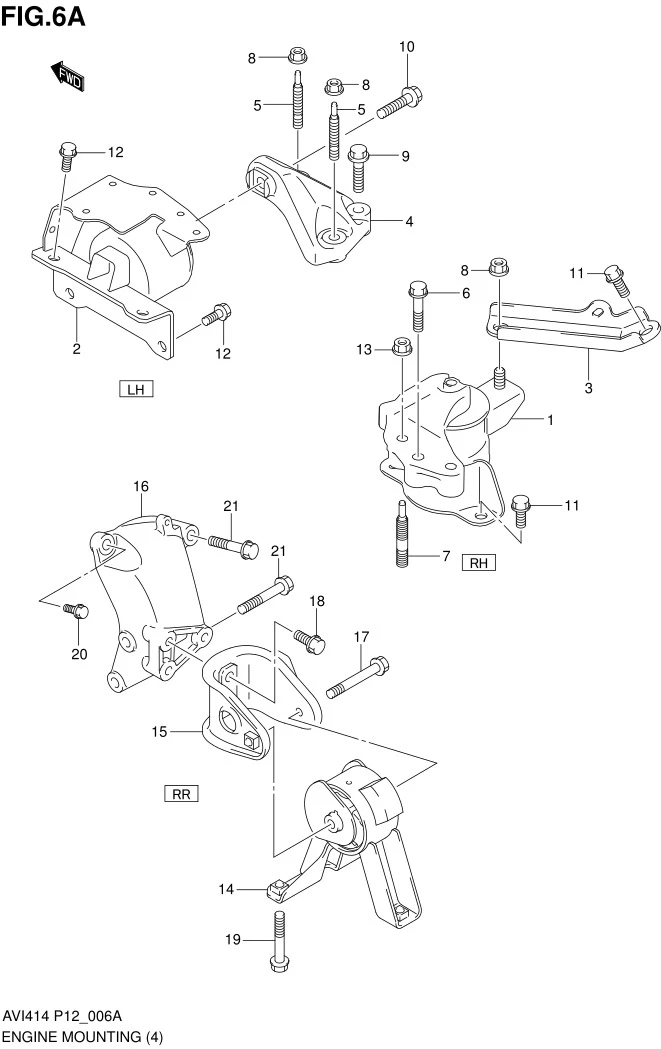

FIG.6A ENGINE MOUNTING (AT:TYPE 3)

FIG.6A ENGINE MOUNTING (AT:TYPE 3)
No No. Part Description Qty Price Per Pcs Remarks
1 11610-59R10-000 MOUNTING, ENG RH 1 Rp447.500
2 11620-59R00-000 MOUNTING, ENG LH 1 Rp247.000
3 11642-71LA0-000
SUB: 11642B71LA0N000		 STIFFENER, RH MTG BRKT 1 Rp21.500
4 11651-77MB0-000
SUB: 11651B77MB0N000		 BRACKET, ENG LH MTG NO.1 1 Rp164.000
5 11653-79J50-000 STUD BOLT 2 Rp40.000
6 09103-10235-000 BOLT (10X50) 1 Rp35.000
7 09108-10154-000 STUD BOLT 2 Rp35.000
8 08316-1010A-000
SUB: 08316B1010AN000		 NUT 3 Rp3.500
9 01550-1045A-000
SUB: 01550B1045AN000		 BOLT 1 Rp11.500
10 01550-1245A-000 BOLT 1 Rp7.000
11 01551-1025A-000 BOLT 3 Rp29.000
12 01551-1025A-000 BOLT 4 Rp29.000
13 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
14 11710-59R10-000 MOUNTING, ENG RR 1 Rp218.000
15 11740-74LA0-000
SUB: 11740B74LA0N000		 BRACKET, ENG RR MTG NO.1 1 Rp104.500
16 11751-77MB0-000
SUB: 11751B77MB0N000		 BRACKET, ENG RR MTG NO.2 1 Rp226.500
17 11719-58J00-000 BOLT, MTG RR (10X100) 1 Rp34.000
18 01550-1030B-000
SUB: 01550-1030A-000		 BOLT 3 Rp25.500
19 09113-10004-000 BOLT (10X85) 3 Rp29.000
20 01550-1035A-000
SUB: 01550B1035AN000		 BOLT 1 Rp5.500
21 01550-1070A-000 BOLT 3 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
