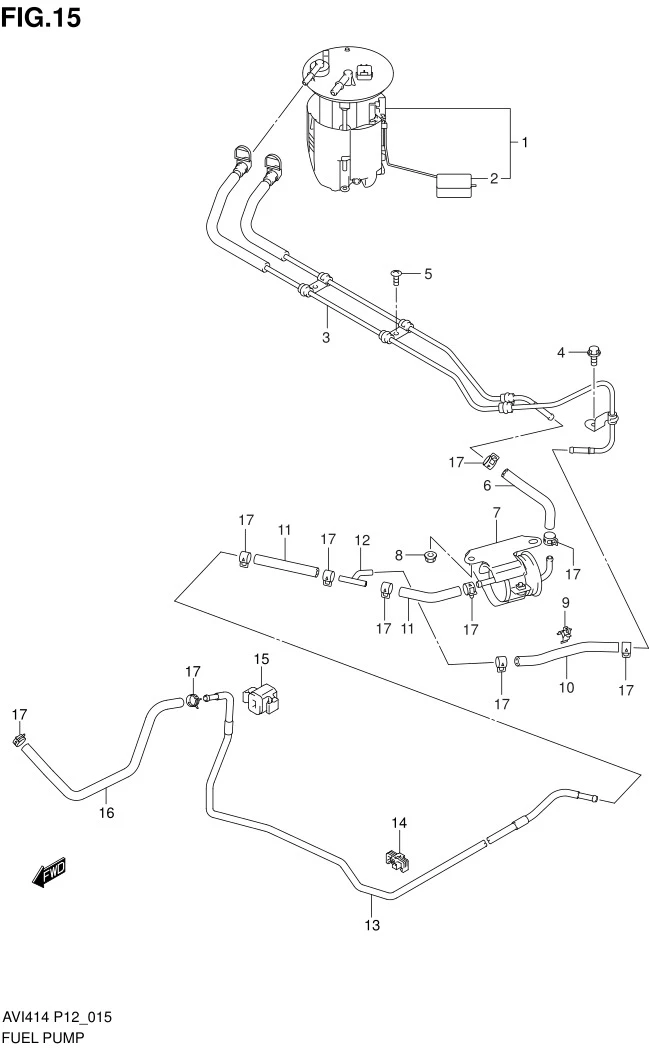

FIG.15 FUEL PUMP

FIG.15 FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1-2 15100-59R02-000
SUB: 15100B77M00N000		 PUMP ASSY, FUEL 1 Rp2.028.000 TYPE 2
1-3 15100-59R02-000
SUB: 15100-59R00-000		 PUMP ASSY, FUEL 1 Rp2.028.000 TYPE 3
1-1 15100M60M02-000
SUB: 15100M60M01-000		 PUMP ASSY, FUEL 1 Rp2.172.500 TYPE 1
2 34810-59R00-000
SUB: 34810-60M10-000		 •GAUGE ASSY, FUEL LEVEL 1 Rp245.000
3 15820-77M01-000
SUB: 15820B77M00N000		 PIPE, TANK SIDE 1 Rp253.500
4 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
5 02142-0508A-000
SUB: 02142B0508AN000		 SCREW 2 Rp3.500
6-1 15815M75J00-130 HOSE, FUEL (PIPE TO FILTER) 1 Rp80.500 TYPE 1 (TO MHYKZE81SDJ121340)
6-2 09356-75L01-130
SUB: 09356B75L01N130		 HOSE, FUEL (PIPE TO FILTER) 1 Rp59.000 TYPE 1 (FROM MHYKZE81SDJ121341)
6-3 09356-75L01-130
SUB: 09356B75L01N130		 HOSE, FUEL (PIPE TO FILTER) 1 Rp59.000 TYPE 2
6-4 09356-75143-130 HOSE, FUEL (PIPE TO FILTER) 1 Rp45.500 TYPE 3
7 15410M60M00-000 FILTER, FUEL 1 Rp273.500
8 09159-08083-000 NUT 2 Rp28.500
9 09403-13310-000 CLAMP 1 Rp20.000
10-3 09356-75143-160 HOSE, FUEL (3WAY TO PIPE) 1 Rp54.000 TYPE 3
10-1 15815M75J00-160 HOSE, FUEL (3WAY TO PIPE) 1 Rp121.000 TYPE 1
10-2 09356-75L01-160
SUB: 09356B75L01N160		 HOSE, FUEL (3WAY TO PIPE) 1 Rp86.500 TYPE 2
11-1 15815M75J00-095 HOSE, FUEL (3WAY TO PIPE) 2 Rp61.000 TYPE 1
11-2 09356-75L01-095
SUB: 09356B75L01N095		 HOSE, FUEL (3WAY TO PIPE) 2 Rp48.500 TYPE 2
11-3 09356-75143-095 HOSE, FUEL (3WAY TO PIPE) 2 Rp33.000 TYPE 3
12 15821-60M00-000
SUB: 15821B60M00N000		 PIPE, FUEL (3WAY) 1 Rp48.500
13 15811-77M00-000
SUB: 15811B77M00N000		 PIPE, FUEL FEED 1 Rp139.500
14-3 15893-67LA0-000
SUB: 15893B67LA0N000		 CLAMP, FUEL PIPE 4 Rp6.500 TYPE 2,TYPE 3
14-2 15893-67LA0-000
SUB: 15893B67LA0N000		 CLAMP, FUEL PIPE 4 Rp6.500 TYPE 1 (FROM MHYKZE81SDJ120861)
14-1 15893-83G01-000 CLAMP, FUEL PIPE 4 Rp23.000 TYPE 1 (TO MHYKZE81SDJ120860)
15-1 DISCONTINUE
SUB: 15882-77M00-000		 CLAMP, FUEL PIPE 1 - TYPE 1 (TO MHYKZE81SDJ120860)
15-2 15882-77M10-000
SUB: 15882B77M10N000		 CLAMP, FUEL PIPE 1 Rp25.000 TYPE 1 (FROM MHYKZE81SDJ120861)
15-3 15882-77M10-000
SUB: 15882B77M10N000		 CLAMP, FUEL PIPE 1 Rp25.000 TYPE 2,TYPE 3
16-1 15815-77M00-000 HOSE, FUEL (PIPE TO ENG) 1 Rp296.500 TYPE 1
16-2 15815-77M10-000
SUB: 15815B77M10N000		 HOSE, FUEL (PIPE TO ENG) 1 Rp191.500 TYPE 2
16-3 15815-59R00-000 HOSE, FUEL (PIPE TO ENG) 1 Rp167.000 TYPE 3
17-1 09401-13419-000 CLIP 10 Rp26.500 TYPE 1,TYPE 2
17-2 09401-11420-000 CLIP 10 Rp24.500 TYPE 3

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
