ERTIGA TYPE 1, 2, 3

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SET (TYPE 1,TYPE 2)FIG.1A ENGINE GASKET SET (TYPE 3)FIG.2 CYLINDER HEAD (TYPE 1,TYPE 2)FIG.2A CYLINDER HEAD (TYPE 3)FIG.3 CYLINDERFIG.4 OIL PAN (TYPE 1,TYPE 2)FIG.4A OIL PAN (TYPE 3)FIG.5 ENGINE MOUNTING (MT:TYPE 1,TYPE 2)FIG.5A ENGINE MOUNTING (MT:TYPE 3)FIG.6 ENGINE MOUNTING (AT:TYPE 1,TYPE 2)FIG.6A ENGINE MOUNTING (AT:TYPE 3)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPE (TYPE 1,TYPE 2)FIG.16A DELIVERY PIPE (TYPE 3)FIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROL (TYPE 1,TYPE 2)FIG.21A EMISSION CONTROL (TYPE 3)FIG.22 LABEL

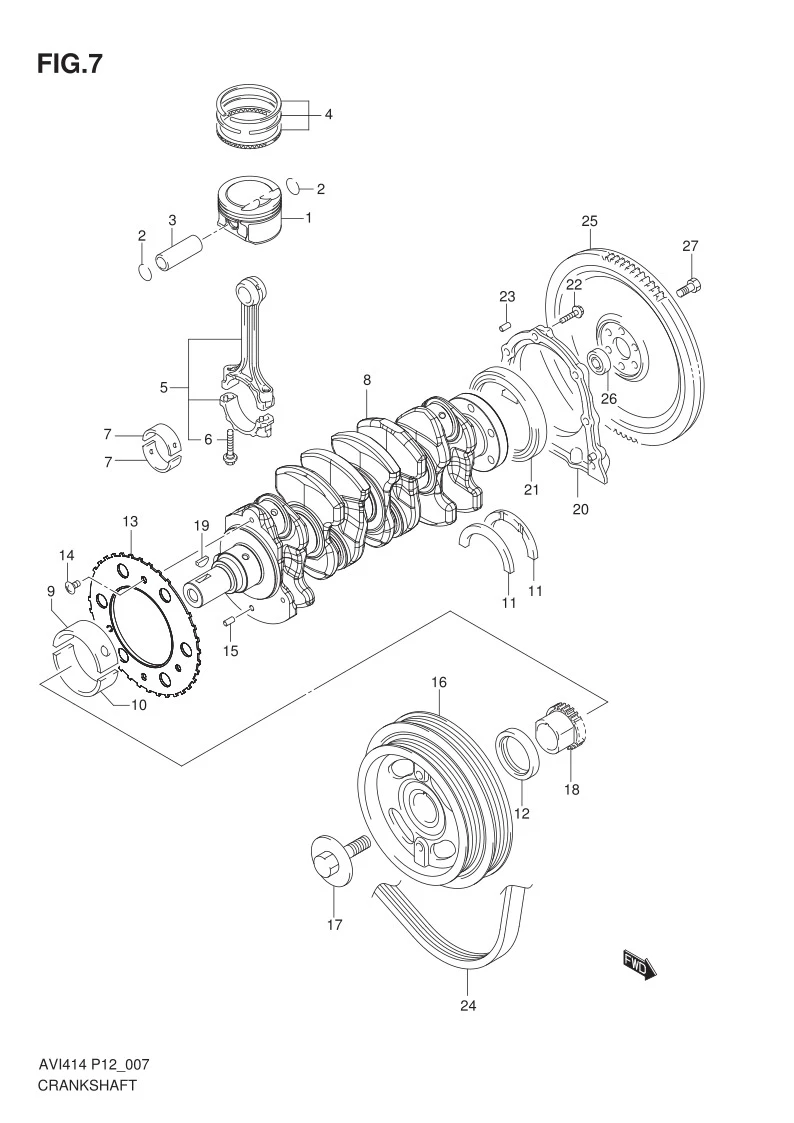

FIG.7 CRANKSHAFT

FIG.7 CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1-2 12111-71L50-0B0
SUB: 12111B71L50N0B0		 PISTON 4 Rp503.500 TYPE 1,TYPE 2
1-1 12111-71L50-0A0
SUB: 12111B71L50N0A0		 PISTON 4 Rp503.500 TYPE 1,TYPE 2
1-3 12111-79P00-000 PISTON 4 Rp116.000 TYPE 3
2 09381-18002-000
SUB: 09381B18002N000		 CIRCLIP 8 Rp2.500
3-1 12151-71L00-0A0
SUB: 12151B71L00N0A0		 PIN,PISTON 4 Rp47.000 TYPE 1,TYPE 2
3-2 12151-71L00-0B0
SUB: 12151B71L00N0B0		 PIN,PISTON 4 Rp51.500 TYPE 1,TYPE 2
3-3 12151-71L00-0C0 PIN,PISTON 4 Rp49.000 TYPE 3
4 12140-58M50-000
SUB: 12140B58M50N000		 RING SET, PISTON 4 Rp109.000
5 12160-51K10-000 CONNROD ASSY 4 Rp759.000
6 12163-69J00-000 •BOLT, CONNROD 8 Rp25.500
7-1 12181-77M00-0A0
SUB: 12181B77M00N0A0		 BEARING, CONNROD (GREEN) 8 Rp45.000 STD,T:1.5
7-2 12181-77M00-0B0
SUB: 12181B77M00N0B0		 BEARING, CONNROD (BLACK) 8 Rp45.000 STD,T:1.5
7-3 12181-77M00-0C0
SUB: 12181B77M00N0C0		 BEARING, CONNROD (NON) 8 Rp45.000 STD,T:1.5
7-4 12181-77M00-0D0
SUB: 12181B77M00N0D0		 BEARING, CONNROD (YELLOW) 8 Rp45.000 STD,T:1.5
7-5 12181-77M00-0E0
SUB: 12181B77M00N0E0		 BEARING, CONNROD (BLUE) 8 Rp46.000 STD,T:1.5
7-6 12181-77M00-025
SUB: 12181B77M00N025		 BEARING, CONNROD (RED) 8 Rp45.000 US:0.25,T:1.625
8 12221-71L00-000 CRANKSHAFT 1 Rp8.190.500
9-1 12341-77M00-0A0
SUB: 12341B77M00N0A0		 BEARING, CRANKSHAFT UPR (PINK) 0 Rp26.500 STD,T:2
9-2 12341-77M00-0B0
SUB: 12341B77M00N0B0		 BEARING, CRANKSHAFT UPR (PURPLE) 0 Rp26.500 STD,T:2
9-3 12341-77M00-0C0
SUB: 12341B77M00N0C0		 BEARING, CRANKSHAFT UPR (BROWN) 0 Rp26.500 STD,T:2
9-4 12341-77M00-0D0
SUB: 12341B77M00N0D0		 BEARING, CRANKSHAFT UPR (GREEN) 0 Rp26.500 STD,T:2
9-5 12341-77M00-0E0
SUB: 12341B77M00N0E0		 BEARING, CRANKSHAFT UPR (BLACK) 0 Rp26.500 STD,T:2
9-6 12341-77M00-0AA
SUB: 12341B77M00N0AA		 BEARING, CRANKSHAFT UPR (RED/PINK) 0 Rp26.500 US:0.25,T:2.125
9-7 12341-77M00-0BA
SUB: 12341B77M00N0BA		 BEARING, CRANKSHAFT UPR (RED/PURPLE) 0 Rp26.500 US:0.25,T:2.125
9-8 12341-77M00-0CA
SUB: 12341B77M00N0CA		 BEARING, CRANKSHAFT UPR (RED/BROWN) 0 Rp26.500 US:0.25,T:2.125
9-9 12341-77M00-0DA
SUB: 12341B77M00N0DA		 BEARING, CRANKSHAFT UPR (RED/GREEN) 0 Rp27.000 US:0.25,T:2.125
9-10 12341-77M00-0EA
SUB: 12341B77M00N0EA		 BEARING, CRANKSHAFT UPR (RED/BLACK) 0 Rp26.500 US:0.25,T:2.125
10-10 12345-77M00-0EA
SUB: 12345B77M00N0EA		 BEARING, CRANKSHAFT LWR (RED/BLACK) 0 Rp26.500 US:0.25,T:2.125
10-2 12345-77M00-0B0
SUB: 12345B77M00N0B0		 BEARING, CRANKSHAFT LWR (PURPLE) 0 Rp26.500 STD,T:2
10-9 12345-77M00-0DA
SUB: 12345B77M00N0DA		 BEARING, CRANKSHAFT LWR (RED/GREEN) 0 Rp27.000 US:0.25,T:2.125
10-8 12345-77M00-0CA
SUB: 12345B77M00N0CA		 BEARING, CRANKSHAFT LWR (RED/BROWN) 0 Rp26.500 US:0.25,T:2.125
10-7 12345-77M00-0BA
SUB: 12345B77M00N0BA		 BEARING, CRANKSHAFT LWR (RED/PURPLE) 0 Rp26.500 US:0.25,T:2.125
10-5 12345-77M00-0E0
SUB: 12345B77M00N0E0		 BEARING, CRANKSHAFT LWR (BLACK) 0 Rp26.500 STD,T:2
10-4 12345-77M00-0D0
SUB: 12345B77M00N0D0		 BEARING, CRANKSHAFT LWR (GREEN) 0 Rp26.500 STD,T:2
10-3 12345-77M00-0C0
SUB: 12345B77M00N0C0		 BEARING, CRANKSHAFT LWR (BROWN) 0 Rp26.500 STD,T:2
10-1 12345-77M00-0A0
SUB: 12345B77M00N0A0		 BEARING, CRANKSHAFT LWR (PINK) 0 Rp26.500 STD,T:2
10-6 12345-77M00-0AA
SUB: 12345B77M00N0AA		 BEARING, CRANKSHAFT LWR (RED/PINK) 0 Rp26.500 US:0.25,T:2.125
11-1 12351-77M00-000
SUB: 12351B77M00N000		 BEARING, CRANK THRUST 2 Rp17.500 STD,T:2.5
11-2 12351-77M00-012
SUB: 12351B77M00N012		 BEARING, CRANK THRUST 2 Rp43.500 OS:0.125,T:2.563
12-1 16141-58M00-000
SUB: 16141B58M00N000		 SEAL, CRANKSHAFT FRONT OIL 1 Rp97.500 TYPE 1,TYPE 2
12-2 16141-77M00-000 SEAL, CRANKSHAFT FRONT OIL 1 Rp33.500 TYPE 3
13 12222-71L00-000 PLATE, SENSOR 1 Rp91.500
14 12223-69G00-000 SCREW, SENSOR PLATE 3 Rp13.500
15 09205-05006-000 PIN 1 Rp11.500
16 12610-77M00-000
SUB: 12610B77M00N000		 PULLEY, CRANKSHAFT 1 Rp459.000
17 12619-67LA0-000
SUB: 12619B67LA0N000		 BOLT, CRANK PULLEY 1 Rp54.000
18 12631-54GA1-000 SPROCKET, CRANKSHAFT TIMING 1 Rp171.500
19 08341M31059-000 KEY 1 Rp4.500
20 11341M51K00-000 HOUSING, OIL SEAL 1 Rp73.000
21 11342-67LD0-000 SEAL, CRANKSHAFT REAR OIL 1 Rp70.000
22 09103-06282-000 BOLT (6X25) 6 Rp16.500
23 04221-06129-000 PIN 2 Rp12.500
24 17521-77M00-000
SUB: 17521B77M00N000		 BELT, WATER PUMP (5PK897) 1 Rp62.000
25 12620-77M01-000
SUB: 12620B77M00N000		 FLYWHEEL 1 Rp766.000
26 12623-61J00-000 BEARING, INPUT SHAFT 1 Rp39.500
27 09100-10275-000
SUB: 09103-10305-000		 BOLT (10X18.5) 6 Rp30.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
