ERTIGA TYPE 1, 2, 3

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SET (TYPE 1,TYPE 2)FIG.1A ENGINE GASKET SET (TYPE 3)FIG.2 CYLINDER HEAD (TYPE 1,TYPE 2)FIG.2A CYLINDER HEAD (TYPE 3)FIG.3 CYLINDERFIG.4 OIL PAN (TYPE 1,TYPE 2)FIG.4A OIL PAN (TYPE 3)FIG.5 ENGINE MOUNTING (MT:TYPE 1,TYPE 2)FIG.5A ENGINE MOUNTING (MT:TYPE 3)FIG.6 ENGINE MOUNTING (AT:TYPE 1,TYPE 2)FIG.6A ENGINE MOUNTING (AT:TYPE 3)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPE (TYPE 1,TYPE 2)FIG.16A DELIVERY PIPE (TYPE 3)FIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROL (TYPE 1,TYPE 2)FIG.21A EMISSION CONTROL (TYPE 3)FIG.22 LABEL

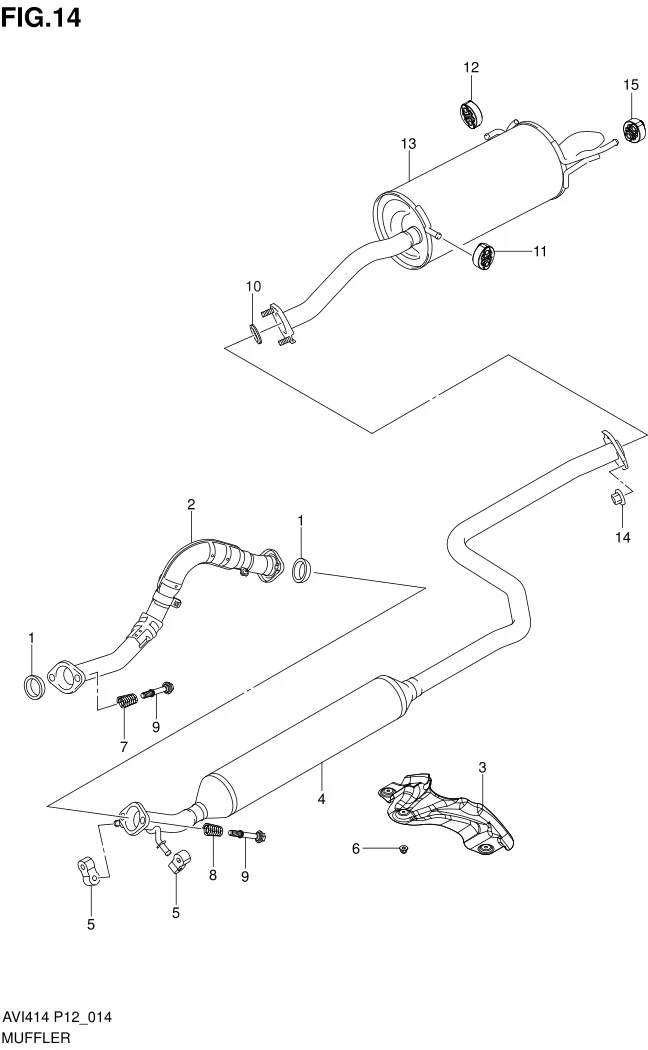

FIG.14 MUFFLER

FIG.14 MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1-2 14183-77M00-000
SUB: 14183B77M00N000		 RING, SEAL EXH PIPE 2 Rp145.500 TYPE 2,TYPE 3
1-1 14183-71L00-000 RING, SEAL EXH PIPE 2 Rp138.000 TYPE 1
2 14190-77M00-000
SUB: 14190B77M00N000		 PIPE, EXH NO.1 1 Rp502.000
3-1 14232-71L00-000 INSULATOR, PARKING CABLE HEAT 1 Rp359.000 TYPE 1
3-2 14232-77M00-000
SUB: 14232B77M00N000		 INSULATOR, PARKING CABLE HEAT 1 Rp239.500 TYPE 2,TYPE 3
4 14250-77M00-000
SUB: 14250B77M00N000		 PIPE, EXH CENTER 1 Rp1.670.000
5-1 14281-71C01-000
SUB: 14281B77M00N000		 MOUNTING, MUFFLER 2 Rp87.500 TYPE 1
5-2 14281-77M20-000
SUB: 14281B77M20N000		 MOUNTING, MUFFLER 2 Rp23.000 TYPE 2,TYPE 3
6 14357-72J00-000 NUT, HEAT INSULATOR 3 Rp14.500
7 14492-77M00-000
SUB: 14492B77M00N000		 SPRING, EXH PIPE 2 Rp19.500
8 14492-77M00-000
SUB: 14492B77M00N000		 SPRING, EXH PIPE 2 Rp19.500
9 09119-10073-000 BOLT (10X65) 4 Rp75.000
10-1 14182-60B01-000
SUB: 14182-60B00-000		 GASKET, EXH PIPE 1 Rp61.000 TYPE 1
10-2 14182-77M00-000
SUB: 14182B77M00N000		 GASKET, EXH PIPE 1 Rp20.500 TYPE 2,TYPE 3
11-1 14281-77M10-000
SUB: 14281B77M10N000		 MOUNTING, MUFFLER 1 Rp35.000 TYPE 1
11-2 14281-77M30-000
SUB: 14281B77M30N000		 MOUNTING, MUFFLER 1 Rp23.000 TYPE 2,TYPE 3
12-1 14281-77M10-000
SUB: 14281B77M10N000		 MOUNTING, MUFFLER 1 Rp35.000 TYPE 1
12-2 14281-77M30-000
SUB: 14281B77M30N000		 MOUNTING, MUFFLER 1 Rp23.000 TYPE 2,TYPE 3
13 14300-77M00-000
SUB: 14300B77M00N000		 MUFFLER 1 Rp1.483.500
14 09159M10049-000
SUB: 09159-10102-000		 NUT 2 Rp10.500
15-1 14281-80J00-000 MOUNTING, MUFFLER 1 Rp185.000 TYPE 1
15-2 14281-77M40-000
SUB: 14281B77M40N000		 MOUNTING, MUFFLER 1 Rp99.000 TYPE 2,TYPE 3

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
