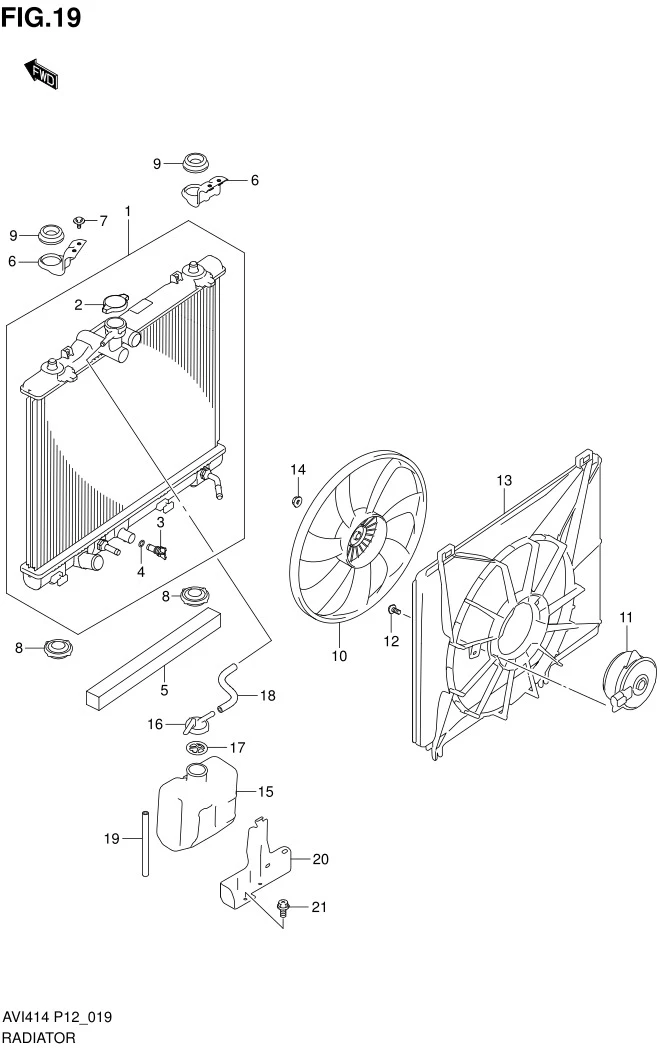

FIG.19 RADIATOR

FIG.19 RADIATOR
No No. Part Description Qty Price Per Pcs Remarks
1-2 17700-59R00-000 RADIATOR ASSY 1 Rp2.383.000 MT TYPE 3
1-2 17700-77M10-000
SUB: 17700B77M10N000		 RADIATOR ASSY 1 Rp2.496.500 AT
1-1 17700-77M00-000
SUB: 17700B77M00N000		 RADIATOR ASSY 1 Rp2.383.000 MT TYPE 1,TYPE 2
2 DISCONTINUE
SUB: 17920B75F00N000		 •CAP, RADIATOR 1 -
3 17751-61A00-000
SUB: 17751B61A00N000		 •PLUG, DRAIN 1 Rp13.000
4 17759-82K00-000
SUB: 17759B82K00N000		 •O RING 1 Rp7.500
5 17793-75JA0-000
SUB: 17793B75JA0N000		 SEAL, RADIATOR NO.3 1 Rp17.000
6 17861-74L00-000
SUB: 17861B74L00N000		 BRACKET, RADIATOR SUP UPPER 2 Rp13.000
7 09122-76003-000 BOLT (6X16) 4 Rp15.000
8-1 17878-77MA0-000
SUB: 17878B77M00N000		 MOUNT, RADIATOR SUPPORT LOWER 2 Rp12.500 MT
8-2 17878-77MA0-000
SUB: 17878B77MA0N000		 MOUNT, RADIATOR SUPPORT LOWER 2 Rp12.500 AT
9 17879-77M00-000
SUB: 17879B77M00N000		 MOUNT, RADIATOR SUPPORT UPPER 2 Rp12.500
10 17111-77M00-000
SUB: 17111B77M00N000		 FAN, COLLING 1 Rp289.500
11 17120-77M01-000
SUB: 17120B77M00N000		 MOTOR ASSY, COOLING FAN 1 Rp554.500
12 17129-56F00-000
SUB: 17129M56F00-000		 SCREW, FAN MOTOR (5X11) 3 Rp24.000
13 17760-77M00-000
SUB: 17760B77M00N000		 SHROUD 1 Rp184.000
14 08316-2005A-000 NUT 1 Rp13.000
15 17931-69L00-000
SUB: 17931B69L00N000		 TANK, WATER RESERVE 1 Rp32.000
16 17932-76G00-000
SUB: 17932B76G00N000		 CAP, WATER RESERVER TANK 1 Rp5.500
17 17933-60B00-000
SUB: 17933B60B00N000		 SEAL, WATER RESERVER TANK CAP 1 Rp5.500
18 09352-70111-600 HOSE, WTR RSVR TANK CAP 1 Rp82.500 L:600->140
19 09352-70L04-190
SUB: 09352B70L04N190		 HOSE, RADIATOR TO RSV TANK 1 Rp5.500
20 17935-74L00-000
SUB: 17935B74L00N000		 BRACKET, RSV TANK 1 Rp27.000
21 02162-0612A-000 SCREW 2 Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
