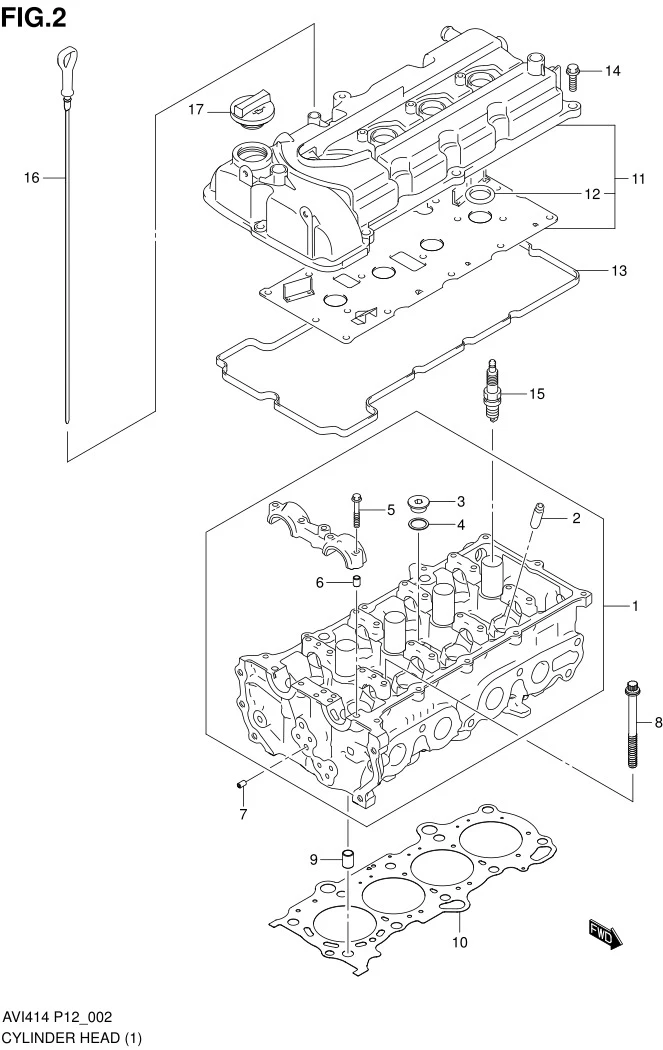

FIG.2 CYLINDER HEAD (TYPE 1,TYPE 2)

FIG.2 CYLINDER HEAD (TYPE 1,TYPE 2)
No No. Part Description Qty Price Per Pcs Remarks
1-2 11100-69L40-000 HEAD ASSY, CYLINDER 1 Rp13.904.000
1-1 11100-69LB0-000 HEAD ASSY, CYLINDER 1 Rp16.558.500
2 11115-69L00-001 •GUIDE, VALVE 16 Rp232.500
3 09248-18011-000 •PLUG 3 Rp38.000
4 11216-77E00-000 •GASKET, M18 PLUG 3 Rp21.000
5 11128-69G01-000 •BOLT, CAMSHAFT HOUSING 21 Rp24.000
6 09206-08001-000
SUB: 09206B08001N000		 •PIN (6.2X8X11) 16 Rp5.500
7 11112-53A00-000 PLUG, OIL VENTURI 1 Rp31.500
8 11117-69J00-000 BOLT, CYLINDER HEAD 10 Rp64.500
9 04211M13189-000 PIN 2 Rp9.000
10 11141-73K01-000 GASKET, CYLINDER HEAD 1 Rp484.000
11 11170-77M00-000
SUB: 11170B77M00N000		 COVER, CYLINDER HEAD 1 Rp730.500
12 11179M68K00-000
SUB: 11179M79F01-000		 •O RING 4 Rp13.000
13 11189-74L00-000
SUB: 11189B74L00N000		 GASKET, CYLINDER HEAD COVER 1 Rp87.500
14 01550-0625A-000
SUB: 01550B0625AN000		 BOLT 7 Rp5.500
15 09482-00L10-000
SUB: 09482B00L10N000		 SPARK PLUG (NGK,KR6A-10) 4 Rp41.500
16 16910-51K01-000
SUB: 16910-51K00-000		 GAUGE, OIL LEVEL 1 Rp134.500
17 16920-83G02-000
SUB: 16920-83G00-000		 CAP, OIL FILTER 1 Rp149.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
