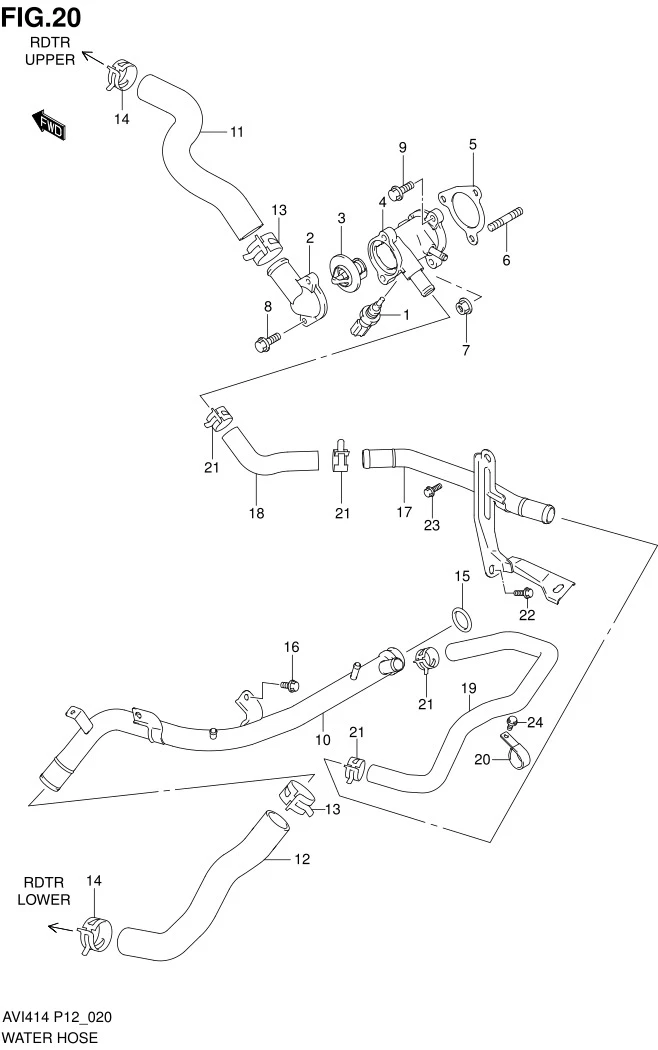

FIG.20 WATER HOSE

FIG.20 WATER HOSE
No No. Part Description Qty Price Per Pcs Remarks
1 13650-73H00-000 SENSOR, WTR TEMP 1 Rp368.000
2 17561-68K00-000
SUB: 17561B68K00N000		 CAP, WTR THERMO 1 Rp27.500
3 17670-50G10-000 THERMOSTAT, WTR 1 Rp205.000
4-1 17690-74L00-000
SUB: 17690B74L00N000		 CASE, THERMO 1 Rp135.000
4-2 17690-74L10-000
SUB: 17690B74L10N000		 CASE, THERMO 1 Rp123.500 FROM 2013-4
5 17699-67LA0-000
SUB: 17699B67LA0N000		 GASKET, THERMO CASE 1 Rp13.500
6 01421-0825A-000 STUD BOLT 2 Rp13.000
7 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
8 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 2 Rp3.500
9 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 1 Rp4.000
10-1 17830-83K00-000
SUB: 17830B83K00N000		 PIPE, WATER INLET 1 Rp112.500
10-2 17830-83K30-000 PIPE, WATER INLET 1 Rp113.000 FROM 2013-4
11 17852-77M00-000
SUB: 17852B77M00N000		 HOSE, RADIATOR INLET 1 Rp48.000
12 17854-77M00-000
SUB: 17854B77M00N000		 HOSE, RADIATOR OUTLET 1 Rp51.500
13 09401-30405-000 CLIP 2 Rp35.000
14 09401-33403-000 CLIP 2 Rp53.500
15 09280-28008-000
SUB: 09280B28008N000		 O RING 1 Rp2.500
16 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
17-1 17840-74L00-000
SUB: 17840M74L20-000		 PIPE, HTR INLET 1 Rp105.000 TYPE 1
17-2 17840-74L00-000
SUB: 17840B74L00N000		 PIPE, HTR INLET 1 Rp105.000 TYPE 2,TYPE 3
18 17871-77M00-000
SUB: 17871B77M00N000		 HOSE, HTR INLET NO.1 1 Rp19.000
19 17874-77M00-000
SUB: 17874B77M00N000		 HOSE, HTR CIRCULATION 1 Rp51.000
20 17881-58M00-000
SUB: 17881B58M00N000		 CLAMP, HTR HOSE 1 Rp9.500
21 09401-21405-000 CLIP 4 Rp25.000
22 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
23 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 1 Rp6.000
24 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
