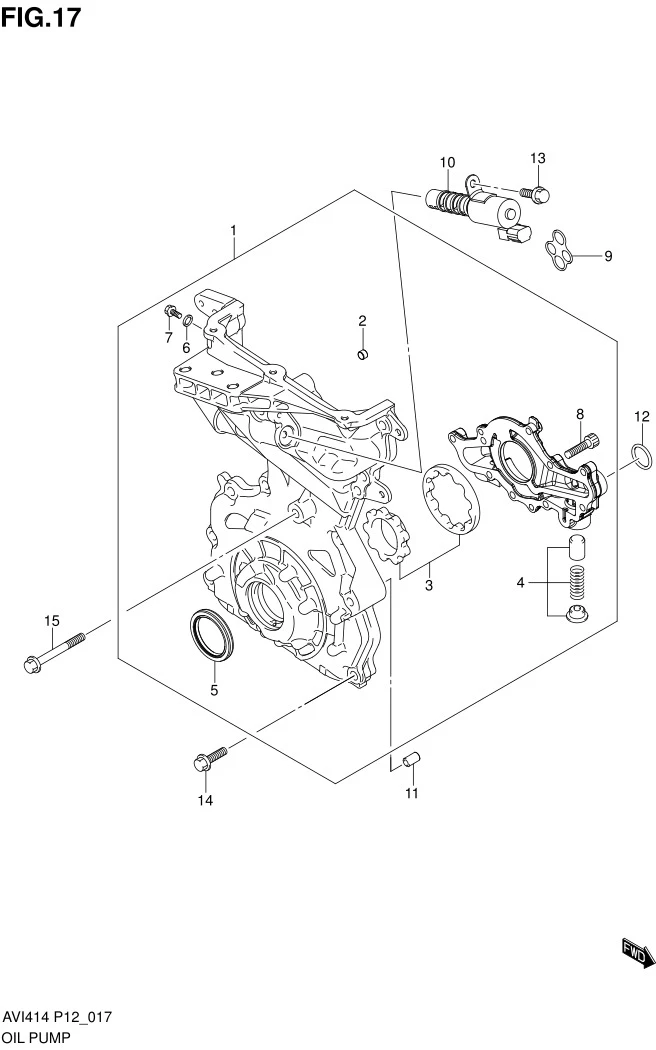

FIG.17 OIL PUMP

FIG.17 OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1-2 16100-77MB0-000 PUMP ASSY, OIL 1 Rp1.400.500 TYPE 3
1-1 16100-58MB1-000
SUB: 16100B58MB1N000		 PUMP ASSY, OIL 1 Rp1.379.500 TYPE 1,TYPE 2
2 16116-69GE0-000
SUB: 16116B69GE0N000		 •FILTER, OIL GALLERY 1 Rp66.000
3-1 16130-68K00-000
SUB: 16130B68K00N000		 •ROTOR SET, OIL PUMP 1 Rp190.500 TYPE 1,TYPE 2
3-2 16130-77MB0-000 •ROTOR SET, OIL PUMP 1 Rp166.500 TYPE 3
4 16151-51K00-000
SUB: 16150B51K01N000		 •VALVE SET, OIL PUMP RELIEF 1 Rp22.000
5 16141-58M00-000
SUB: 16141B58M00N000		 •SEAL, CRANKSHAFT FRONT OIL 1 Rp97.500
6 09168-08016-000
SUB: 09168B08016N000		 •GASKET 1 Rp25.000
7 01550-0816A-000
SUB: 01550B0816AN000		 •BOLT 1 Rp6.000
8 07130-0625A-000
SUB: 07130B0625AN000		 •BOLT 9 Rp3.500
9 16118-77M00-000 O RING, OIL CONTROL VALVE 1 Rp9.500
10 16550-58MA0-000
SUB: 16550B58MA0N000		 VALVE, OIL CONTROL 1 Rp695.500
11 09206-06005-000
SUB: 09206B06005N000		 PIN (4X6X11) 2 Rp14.500
12-1 51181-37B00-000
SUB: 09280B17002N000		 O RING (D:2.4,ID:16.8) 1 Rp5.000 TYPE 1,TYPE 2
12-2 16119-67LA0-000
SUB: 16119B67LA0N000		 O RING 1 Rp5.500 TYPE 3
13 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
14 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 13 Rp4.000
15 01550-0885A-000 BOLT 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
