ERTIGA TYPE 1, 2, 3

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SET (TYPE 1,TYPE 2)FIG.1A ENGINE GASKET SET (TYPE 3)FIG.2 CYLINDER HEAD (TYPE 1,TYPE 2)FIG.2A CYLINDER HEAD (TYPE 3)FIG.3 CYLINDERFIG.4 OIL PAN (TYPE 1,TYPE 2)FIG.4A OIL PAN (TYPE 3)FIG.5 ENGINE MOUNTING (MT:TYPE 1,TYPE 2)FIG.5A ENGINE MOUNTING (MT:TYPE 3)FIG.6 ENGINE MOUNTING (AT:TYPE 1,TYPE 2)FIG.6A ENGINE MOUNTING (AT:TYPE 3)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPE (TYPE 1,TYPE 2)FIG.16A DELIVERY PIPE (TYPE 3)FIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROL (TYPE 1,TYPE 2)FIG.21A EMISSION CONTROL (TYPE 3)FIG.22 LABEL

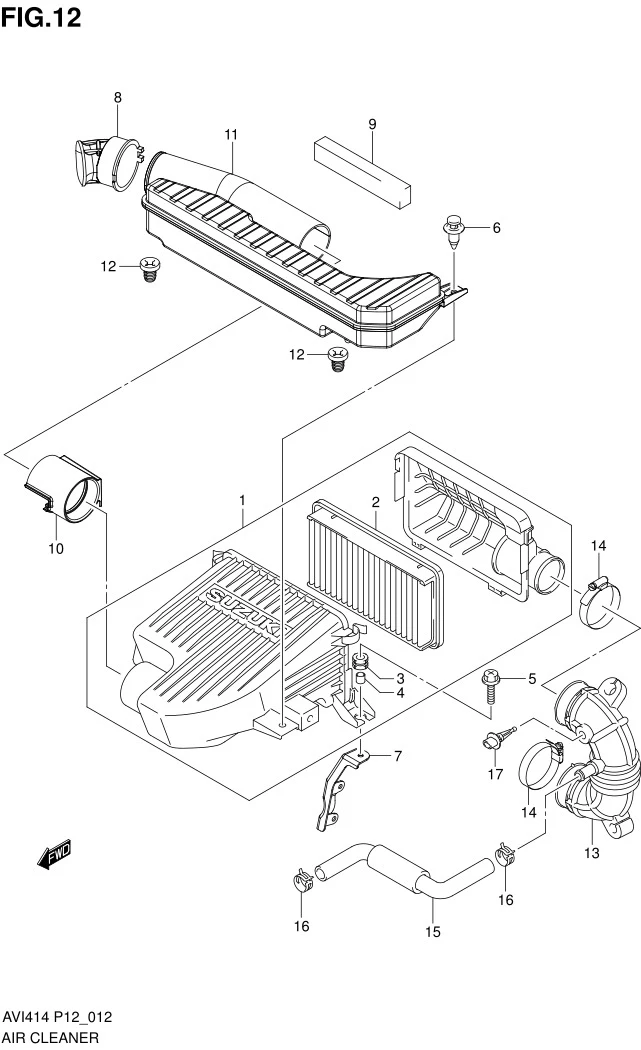

FIG.12 AIR CLEANER

FIG.12 AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-77M00-000
SUB: 13700B77M00N000		 CLEANER ASSY, AIR 1 Rp298.000
2 13780-77M00-000
SUB: 13780B77M00N000		 •ELEMENT 1 Rp128.000
3 13813-83000-000 •CUSHION 2 Rp31.500
4 13812-79J01-000
SUB: 13812M79J00-000		 •COLLAR 2 Rp18.500
5 09136-06141-000 BOLT (6X25) 2 Rp17.000
6 09409-08327-000 CLIP 1 Rp15.000
7-1 13733-71L00-000
SUB: 13733B71L00N000		 BRACKET, AIR CLEANER 1 Rp9.500 TYPE 1,TYPE 2
7-2 13733-83P00-000 BRACKET, AIR CLEANER 1 Rp24.000 TYPE 3
8 13765-71L00-000
SUB: 13765B71L00N000		 HOSE, AIR CLNR SUCT 1 Rp26.500 TYPE 1,TYPE 2
9 13799-77M00-000
SUB: 13799B77M00N000		 SEAL, RESONATOR 1 Rp8.000
10-2 13825-74L00-000 JOINT, AIR INLET PIPE 1 Rp19.000 TYPE 3
10-1 13825-71L00-000
SUB: 13825B71L00N000		 JOINT, AIR INLET PIPE 1 Rp23.000 TYPE 1,TYPE 2
11-1 13870-71L00-000
SUB: 13870B71L00N000		 PIPE, AIR CLNR SUCT 1 Rp184.000 TYPE 1,TYPE 2
11-2 13870-74L00-000 PIPE, AIR CLNR SUCT 1 Rp209.500 TYPE 3
12 13871-73K00-000 GROMMET, AIR INTK 2 Rp22.500
13-1 13881-74L00-000
SUB: 13881B74L00N000		 HOSE, AIR CLNR OUT 1 Rp90.000 TYPE 1,TYPE 2
13-2 13881-74L20-000 HOSE, AIR CLNR OUT 1 Rp64.000 TYPE 3
14-1 09402-70503-000 CLAMP 2 Rp91.500 TYPE 1,TYPE 2
14-2 09402-70503-000 CLAMP 2 Rp91.500 TYPE 3
15 11191-77M00-000
SUB: 11191B77M00N000		 HOSE, BREATHER 1 Rp34.000
16 11199M68K00-000
SUB: 09401M18404-000		 CLIP 2 Rp11.000
17 13650-77M00-000 SENSOR, INLET AIR TEMP 1 Rp80.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
