ERTIGA TYPE 1, 2, 3

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SET (TYPE 1,TYPE 2)FIG.1A ENGINE GASKET SET (TYPE 3)FIG.2 CYLINDER HEAD (TYPE 1,TYPE 2)FIG.2A CYLINDER HEAD (TYPE 3)FIG.3 CYLINDERFIG.4 OIL PAN (TYPE 1,TYPE 2)FIG.4A OIL PAN (TYPE 3)FIG.5 ENGINE MOUNTING (MT:TYPE 1,TYPE 2)FIG.5A ENGINE MOUNTING (MT:TYPE 3)FIG.6 ENGINE MOUNTING (AT:TYPE 1,TYPE 2)FIG.6A ENGINE MOUNTING (AT:TYPE 3)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPE (TYPE 1,TYPE 2)FIG.16A DELIVERY PIPE (TYPE 3)FIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROL (TYPE 1,TYPE 2)FIG.21A EMISSION CONTROL (TYPE 3)FIG.22 LABEL

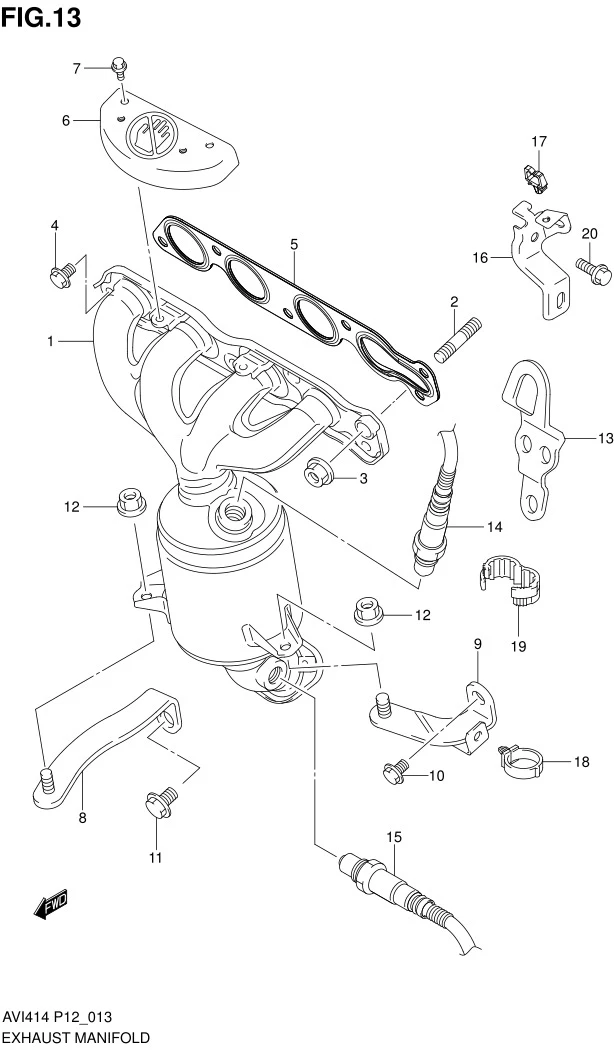

FIG.13 EXHAUST MANIFOLD

FIG.13 EXHAUST MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1-2 14110-59R00-000 MANIFOLD, EXH 1 Rp5.187.500 TYPE 3
1-1 14110-77M10-000
SUB: 14110B77M10N000		 MANIFOLD, EXH 1 Rp5.089.000 TYPE 1,TYPE 2
2 14118-63J00-000 STUD BOLT 3 Rp21.500
3 08316-1010A-000
SUB: 08316B1010AN000		 NUT 3 Rp3.500
4 01550-1020A-000 BOLT 3 Rp21.000
5 14140-71L00-000 GASKET, EXH MANF 1 Rp151.500
6 14121-73KB0-000
SUB: 14121B73KB0N000		 PLATE, CAUTION 1 Rp20.500
7 09103-06265-000
SUB: 09103-06168-000		 BOLT (6X10) 2 Rp21.500
8 14271-73K00-000
SUB: 14271B73K00N000		 STIFFENER, EXH MANF 1 Rp20.500
9 14272-73KA0-000
SUB: 14272B73KA0N000		 STIFFENER, EXH MANF 1 Rp23.500
10 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 1 Rp5.500
11 01550-1020A-000 BOLT 1 Rp21.000
12 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
13 11851-73K00-000
SUB: 11851B73K00N000		 HOOK, ENGINE 1 Rp12.000
14 18213-77M00-000
SUB: 18213B77M00N000		 SENSOR, OXYGEN 1 Rp632.000
15 18213-77M10-000
SUB: 18213B77M10N000		 SENSOR, OXYGEN RR 1 Rp638.500
16 18214-74L00-000
SUB: 18214B74L00N000		 BRACKET, OXYGEN SENSOR 1 Rp11.000
17 09403-11322-000 CLAMP 1 Rp25.500
18 09403M12404-000 CLAMP 2 Rp5.500
19 09408-00258-000 CLAMP 1 Rp14.500
20 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
