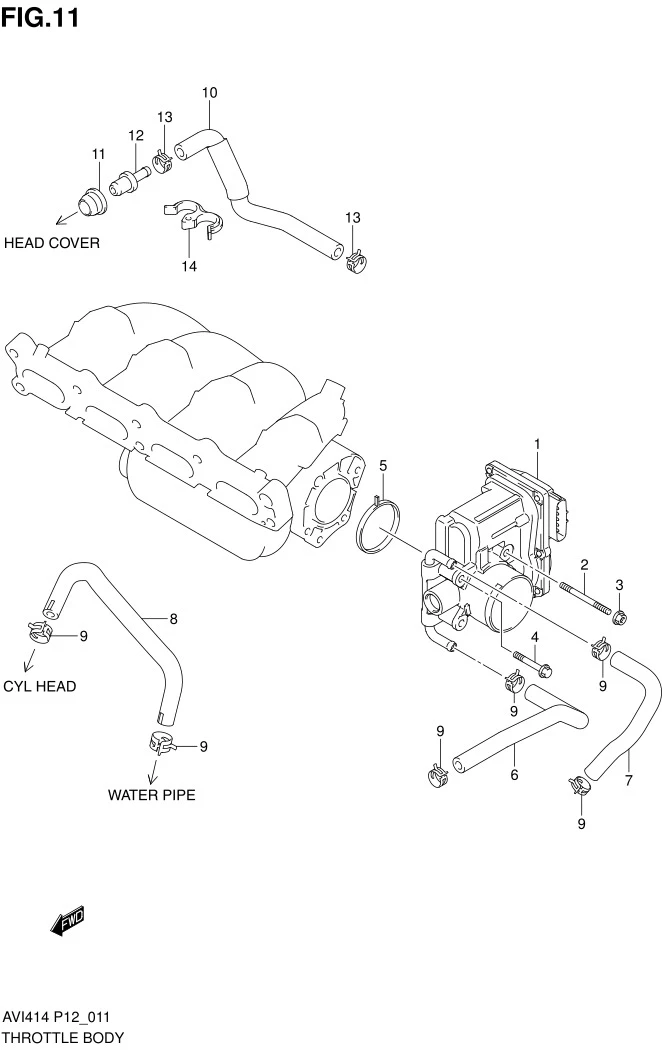

FIG.11 THROTTLE BODY

FIG.11 THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1-2 13400-77M10-000
SUB: 13400B77M10N000		 BODY ASSY, THROTTLE 1 Rp1.306.000 TYPE 1,TYPE 2 (FROM 2013-8 )
1-3 13400-59R10-000 BODY ASSY, THROTTLE 1 Rp1.186.500 TYPE 3
1-1 13400-77M00-000
SUB: 13400B77M00N000		 BODY ASSY, THROTTLE 1 Rp1.227.000
2 01421-0650A-000 STUD BOLT 3 Rp14.000
3 08316-1006A-000
SUB: 08316B1006AN000		 NUT 3 Rp2.000
4 01550-0650A-000 BOLT 1 Rp5.500
5 13421-58M00-000
SUB: 13421B58M00N000		 GASKET, THROTTLE BODY 1 Rp19.500
6 13491-77M00-000
SUB: 13491B77M00N000		 HOSE, WTR THROT BODY INLET 1 Rp19.000 TO 2013-3
7 13492-77M00-000
SUB: 13492B77M00N000		 HOSE, WTR THROT BODY OUT 1 Rp15.000 TO 2013-3
8 17698-77M00-000
SUB: 17698B77M00N000		 HOSE, WATER BYPASS 1 Rp21.500 TO 2013-3
9 09401-12410-000 CLIP 6 Rp15.000 TO 2013-3
10 11193-59R00-000 HOSE, PCV 1 Rp26.500
11 11198M79F00-000
SUB: 11198M58B00-000		 SEAL, PCV VALVE 1 Rp16.500 TYPE 1,TYPE 2
12-1 18118-60M00-000 VALVE, PCV 1 Rp177.000 TYPE 1,TYPE 2
12-2 18118-71L01-000 VALVE, PCV 1 Rp189.000 TYPE 3
13 09401-13414-000 CLIP 2 Rp18.000
14 09408-00155-000 CLAMP 1 Rp23.000 TO 2013-3

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
