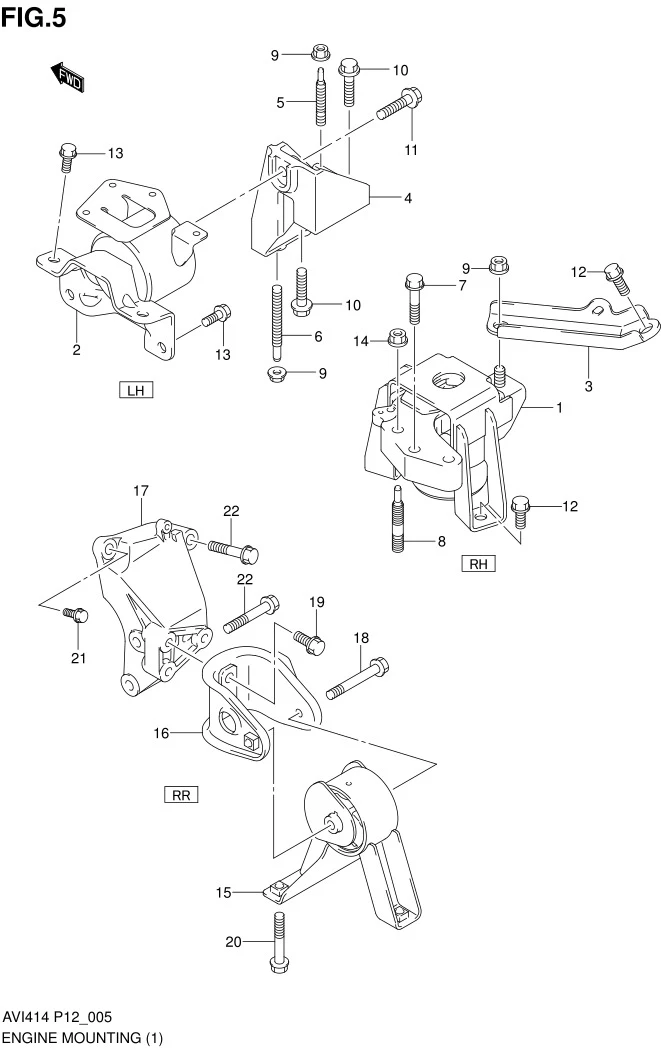

FIG.5 ENGINE MOUNTING (MT:TYPE 1,TYPE 2)

FIG.5 ENGINE MOUNTING (MT:TYPE 1,TYPE 2)
No No. Part Description Qty Price Per Pcs Remarks
1 11610-58MA0-000
SUB: 11610B58MA0N000		 MOUNTING, ENG RH 1 Rp942.000
2 11620-77MA0-000
SUB: 11620B77MA0N000		 MOUNTING, ENG LH 1 Rp536.000
3 11642-71LA0-000
SUB: 11642B71LA0N000		 STIFFENER, RH MTG BRKT 1 Rp21.500
4 11651-71LG0-000
SUB: 11651B71LG0N000		 BRACKET, ENG LH MTG NO.1 1 Rp162.000
5 11653-79J50-000 STUD BOLT 1 Rp40.000
6 11653-80JA0-000 STUD BOLT, ENG LH MTG BRACKET 1 Rp53.000
7 09103-10235-000 BOLT (10X50) 1 Rp35.000
8 09108-10154-000 STUD BOLT 2 Rp35.000
9 08316-1010A-000
SUB: 08316B1010AN000		 NUT 3 Rp3.500
10 01550-1045A-000
SUB: 01550B1045AN000		 BOLT 2 Rp11.500
11 01550-1245A-000 BOLT 1 Rp7.000
12 01551-1025A-000 BOLT 3 Rp29.000
13 01551-1025A-000 BOLT 4 Rp29.000
14 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
15 11710-77MA0-000
SUB: 11710B77MA0N000		 MOUNTING, ENG RR 1 Rp507.000
16 11740-74LA0-000
SUB: 11740B74LA0N000		 BRACKET, ENG RR MTG NO.1 1 Rp104.500
17 11751-74LA0-000
SUB: 11751B74LA0N000		 BRACKET, ENG RR MTG NO.2 1 Rp222.000
18 11719-58J00-000 BOLT, MTG RR (10X100) 1 Rp34.000
19 01550-1030B-000
SUB: 01550-1030A-000		 BOLT 3 Rp25.500
20 09113-10004-000 BOLT (10X85) 3 Rp29.000
21 01550-1035A-000
SUB: 01550B1035AN000		 BOLT 1 Rp5.500
22 01550-1070A-000 BOLT 3 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
