ERTIGA TYPE 1, 2, 3

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.1 ENGINE GASKET SET (TYPE 1,TYPE 2)FIG.1A ENGINE GASKET SET (TYPE 3)FIG.2 CYLINDER HEAD (TYPE 1,TYPE 2)FIG.2A CYLINDER HEAD (TYPE 3)FIG.3 CYLINDERFIG.4 OIL PAN (TYPE 1,TYPE 2)FIG.4A OIL PAN (TYPE 3)FIG.5 ENGINE MOUNTING (MT:TYPE 1,TYPE 2)FIG.5A ENGINE MOUNTING (MT:TYPE 3)FIG.6 ENGINE MOUNTING (AT:TYPE 1,TYPE 2)FIG.6A ENGINE MOUNTING (AT:TYPE 3)FIG.7 CRANKSHAFTFIG.8 CAM SHAFT/VALVEFIG.9 CAM CHAINFIG.10 INTAKE MANIFOLDFIG.11 THROTTLE BODYFIG.12 AIR CLEANERFIG.13 EXHAUST MANIFOLDFIG.14 MUFFLERFIG.15 FUEL PUMPFIG.16 DELIVERY PIPE (TYPE 1,TYPE 2)FIG.16A DELIVERY PIPE (TYPE 3)FIG.17 OIL PUMPFIG.18 WATER PUMPFIG.19 RADIATORFIG.20 WATER HOSEFIG.21 EMISSION CONTROL (TYPE 1,TYPE 2)FIG.21A EMISSION CONTROL (TYPE 3)FIG.22 LABEL

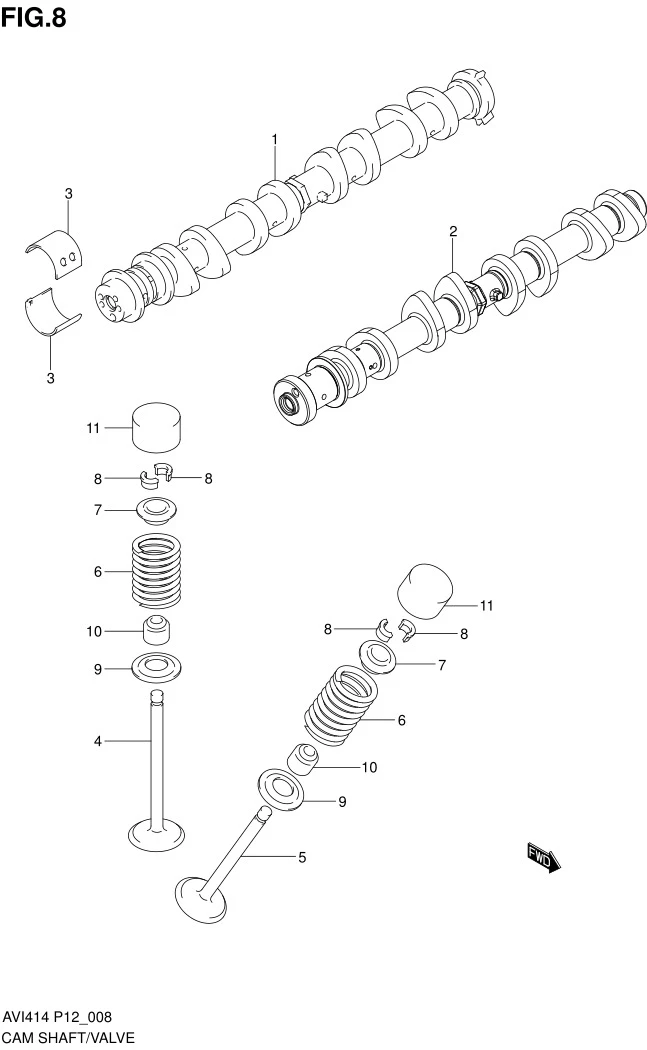

FIG.8 CAM SHAFT/VALVE

FIG.8 CAM SHAFT/VALVE
No No. Part Description Qty Price Per Pcs Remarks
1 12710-69LB0-000 CAMSHAFT, INTK 1 Rp3.514.000
2 12721-79PB0-000 CAMSHAFT, EXH 1 Rp3.222.500
3 12737-77M00-000
SUB: 12737B77M00N000		 BEARING, CAMSHAFT 2 Rp42.000
4-1 12911B77M0N000 VALVE, INTAKE 8 - TYPE 1,TYPE 2
4-2 12911-77MB0-000 VALVE, INTAKE 8 Rp37.000 TYPE 3
5-1 12915-77M00-000
SUB: 12915B77M00N000		 VALVE, EXH 8 Rp60.000 TYPE 1,TYPE 2
5-2 12915-77MB0-000 VALVE, EXH 8 Rp37.000 TYPE 3
6 12921-77M00-000 SPRING, VALVE 16 Rp13.000
7 12931-69L00-000 RETAINER, VALVE SPRING 16 Rp42.000
8 12932-24F00-000 COTTER, VALVE 32 Rp15.000
9 12933M51E00-000 SEAT, VALVE SPRING 16 Rp3.500
10 12934-77M00-000 SEAL, VALVE STEM 16 Rp9.500
11-21 12891-51K00-350 TAPPET (T:3.50) 0 Rp232.500
11-40 12891-51K00-388 TAPPET (T:3.88) 0 Rp226.000
11-22 12891-51K00-352 TAPPET (T:3.52) 0 Rp232.500
11-23 12891-51K00-354 TAPPET (T:3.54) 0 Rp232.500
11-24 12891-51K00-356 TAPPET (T:3.56) 0 Rp226.000
11-25 12891-51K00-358 TAPPET (T:3.58) 0 Rp232.500
11-26 12891-51K00-360 TAPPET (T:3.60) 0 Rp234.500
11-27 12891-51K00-362 TAPPET (T:3.62) 0 Rp232.500
11-28 12891-51K00-364 TAPPET (T:3.64) 0 Rp232.500
11-29 12891-51K00-366 TAPPET (T:3.66) 0 Rp226.000
11-30 12891-51K00-368 TAPPET (T:3.68) 0 Rp234.500
11-31 12891-51K00-370 TAPPET (T:3.70) 0 Rp239.500
11-32 12891-51K00-372 TAPPET (T:3.72) 0 Rp239.500
11-33 12891-51K00-374 TAPPET (T:3.74) 0 Rp237.500
11-34 12891-51K00-376 TAPPET (T:3.76) 0 Rp232.500
11-35 12891-51K00-378 TAPPET (T:3.78) 0 Rp234.500
11-36 12891-51K00-380 TAPPET (T:3.80) 0 Rp232.500
11-37 12891-51K00-382 TAPPET (T:3.82) 0 Rp234.500
11-38 12891-51K00-384 TAPPET (T:3.84) 0 Rp234.500
11-39 12891-51K00-386 TAPPET (T:3.86) 0 Rp234.500
11-10 12891-51K00-328 TAPPET (T:3.28) 0 Rp232.500
11-1 12891-51K00-310 TAPPET (T:3.10) 0 Rp227.500
11-2 12891-51K00-312 TAPPET (T:3.12) 0 Rp234.500
11-3 12891-51K00-314 TAPPET (T:3.14) 0 Rp234.500
11-4 12891-51K00-316 TAPPET (T:3.16) 0 Rp232.500
11-5 12891-51K00-318 TAPPET (T:3.18) 0 Rp232.500
11-6 12891-51K00-320 TAPPET (T:3.20) 0 Rp232.500
11-7 12891-51K00-322 TAPPET (T:3.22) 0 Rp232.500
11-8 12891-51K00-324 TAPPET (T:3.24) 0 Rp232.500
11-9 12891-51K00-326 TAPPET (T:3.26) 0 Rp234.500
11-20 12891-51K00-348 TAPPET (T:3.48) 0 Rp226.000
11-11 12891-51K00-330 TAPPET (T:3.30) 0 Rp232.500
11-12 12891-51K00-332 TAPPET (T:3.32) 0 Rp232.500
11-13 12891-51K00-334 TAPPET (T:3.34) 0 Rp232.500
11-14 12891-51K00-336 TAPPET (T:3.36) 0 Rp226.000
11-15 12891-51K00-338 TAPPET (T:3.38) 0 Rp226.000
11-16 12891-51K00-340 TAPPET (T:3.40) 0 Rp227.000
11-17 12891-51K00-342 TAPPET (T:3.42) 0 Rp220.000
11-18 12891-51K00-344 TAPPET (T:3.44) 0 Rp232.500
11-19 12891-51K00-346 TAPPET (T:3.46) 0 Rp226.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
