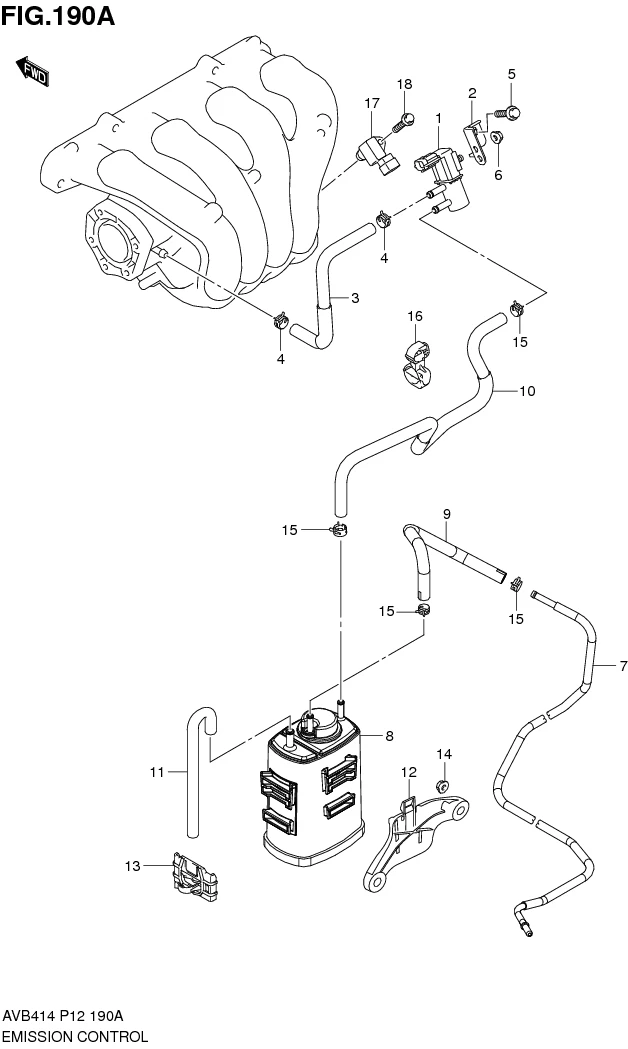

FIG.190A EMISSION CONTROL

FIG.190A EMISSION CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 18114-58M00-000 VALVE ASSY, DUTY FOR PURGE 1 Rp887.500
2 18417-58M00-000 BRACKET, VSV 1 Rp466.000
3 18564-79P00-000 HOSE, PURGE 1 Rp372.500
4 09401-11L04-000 CLIP 2 Rp33.000
5 01550-0616A-000
SUB: 01550M0616A-000		 BOLT 1 Rp3.500
6 08316-1006A-000 NUT 1 Rp2.000
7 18351-79P00-000 PIPE, EVAP 1 Rp301.500
8 18560-58M00-000 CANISTER 1 Rp342.000
9 18561-79P00-000 HOSE, CANISTER INLET 1 Rp372.500
10 18562-79P00-000 HOSE, PURGE 1 Rp477.000
11 18567-79P00-000 HOSE, CANISTER SUCTION 1 Rp54.500
12 18570M79M00-000 BRACKET, CANISTER 1 Rp41.000
13 18581-58M00-000 CLAMP, CANISTER SUCTION 1 Rp10.000
14 09159-06076-000 NUT 2 Rp19.500
15 09401-11L04-000 CLIP 4 Rp33.000
16 09408-00317-000 CLAMP 1 Rp26.500
17 18590-58M00-000 SENSOR, MAP 1 Rp1.313.000
18 01550-0620C-000 BOLT 1 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
