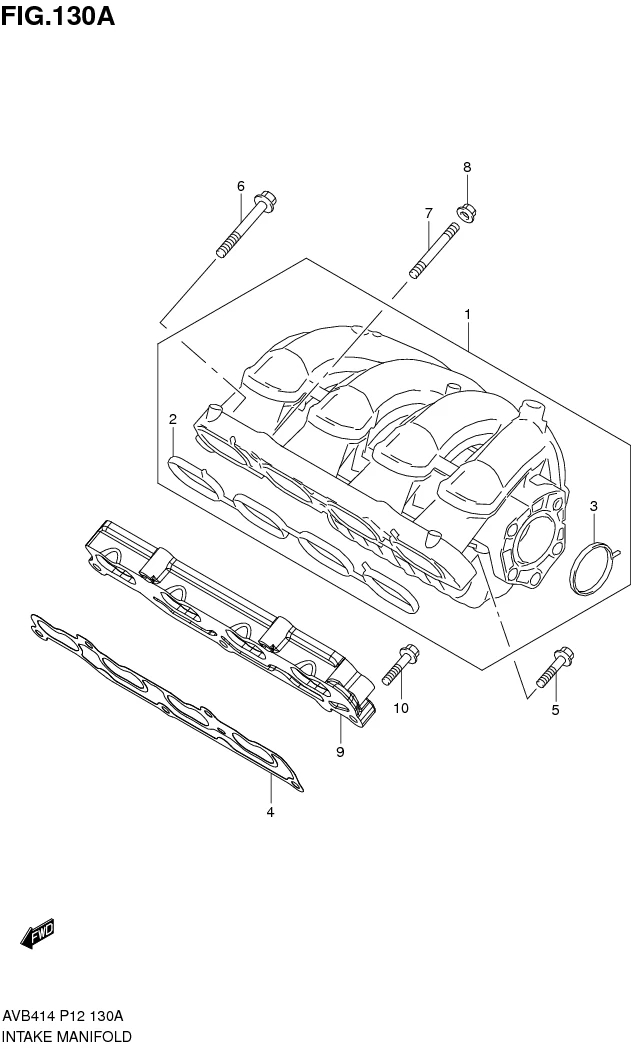

FIG.130A INTAKE MANIFOLD

FIG.130A INTAKE MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 13110-58M00-000 MANIFOLD, INTK 1 Rp3.651.500
2 13118-58M00-000 •GASKET, INTK MANF 1 Rp64.000
3 13421-58M00-000 •GASKET, THROTTLE BODY 1 Rp19.500
4 13119M83K10-000 GASKET, INTK MANF 1 Rp58.500
5 01550-0835A-000 BOLT 2 Rp3.500
6 01550-0865B-000
SUB: 01550-0865A-000		 BOLT 1 Rp8.500
7 09108-08295-000 STUD BOLT 2 Rp30.500
8 08316-1008A-000 NUT 2 Rp3.500
9 13151-71L00-000 PLATE, INTK MANF 1 Rp224.500
10 01550-0835A-000 BOLT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
