CIAZ

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTING (5MT)FIG.128B ENGINE MOUNTING (4AT)FIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.160A FUEL PUMPFIG.172A DELIVERY PIPE/FUEL INJECTORFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

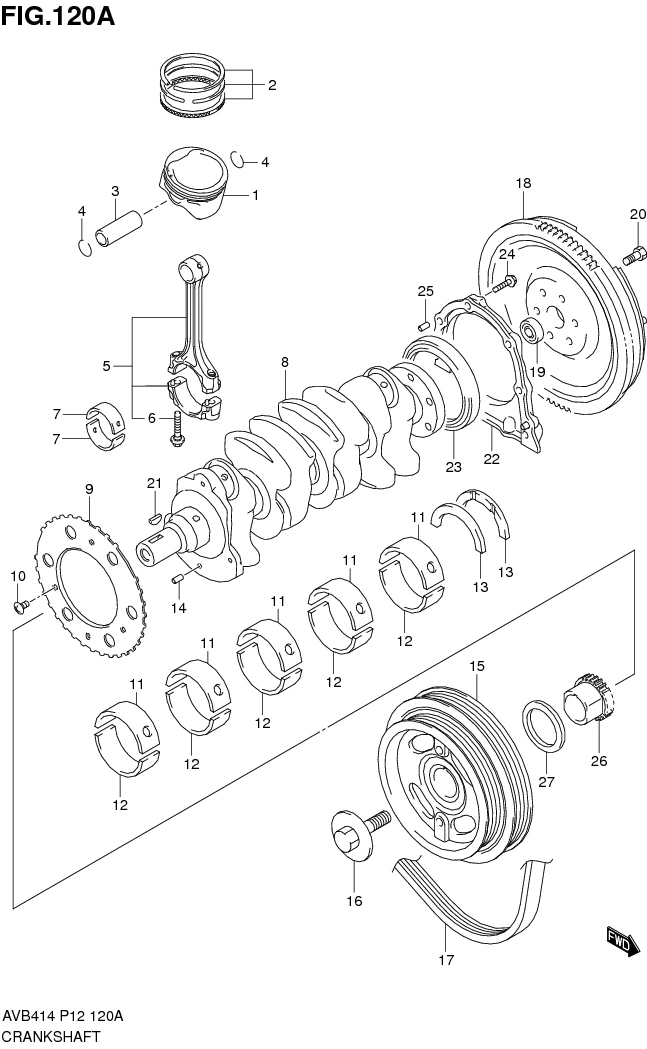

FIG.120A CRANKSHAFT

FIG.120A CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12111-79P00-000 PISTON 4 Rp116.000
2 12140-58M50-000
SUB: 12140B58M50N000		 RING SET, PISTON 4 Rp109.000
3 12151-71L00-0C0 PIN, PISTON 4 Rp49.000
4 09381-18002-000
SUB: 09381B18002N000		 CIRCLIP 8 Rp2.500
5 12160-58M50-000 CONNROD ASSY 4 Rp427.500
6 12163-58M00-000 •BOLT, CONNROD 8 Rp17.000
7-5 12181M68K00-0E0 BEARING, CONNROD (STD,T:1.5) 8 Rp22.000 COLOR:BLUE
7-6 12181M68K10-025
SUB: 12181M68K00-025		 BEARING, CONNROD (US:0.25,T:1.625) 8 Rp14.500 COLOR:RED
7-4 12181M68K00-0D0 BEARING, CONNROD (STD,T:1.5) 8 Rp20.500 COLOR:YELLOW
7-3 12181M68K00-0C0 BEARING, CONNROD (STD,T:1.5) 8 Rp20.500 COLOR:NON
7-2 12181M68K00-0B0 BEARING, CONNROD (STD,T:1.5) 8 Rp20.500 COLOR:BLACK
7-1 12181M68K00-0A0 BEARING, CONNROD (STD,T:1.5) 8 Rp20.500 COLOR:GREEN
8 12221-71L00-000 CRANKSHAFT 1 Rp8.190.500
9 12222-71L00-000 PLATE, SENSOR 1 Rp116.000
10 12223-69G00-000 SCREW, SENSOR PLATE (6X10) 3 Rp14.500
11-1 12341M74L00-0A0 BEARING, CRANKSHAFT UPPER (STD,T:2) 5 Rp30.500 COLOR:PINK
11-10 12341-74L00-0EA
SUB: 12341M74L00-0EA		 BRG, CSHAFT UPPER (US:0.25,T:2.125) 5 Rp61.500 COLOR:RED/BRACK
11-9 12341-74L00-0DA
SUB: 12341M74L00-0DA		 BRG, CSHAFT UPPER (US:0.25,T:2.125) 5 Rp61.500 COLOR:RED/GREEN
11-8 12341-74L00-0CA
SUB: 12341M74L00-0CA		 BRG, CSHAFT UPPER (US:0.25,T:2.125) 5 Rp61.500 COLOR:RED/BROWN
11-7 12341-74L00-0BA
SUB: 12341M74L00-0BA		 BRG, CSHAFT UPPER (US:0.25,T:2.125) 5 Rp61.500 COLOR:RED/PURPLE
11-6 12341-74L00-0AA
SUB: 12341M74L00-0AA		 BRG, CSHAFT UPPER (US:0.25,T:2.125) 5 Rp59.500 COLOR:RED/PINK
11-5 12341M74L00-0E0 BEARING, CRANKSHAFT UPPER (STD,T:2) 5 Rp30.500 COLOR:BLACK
11-4 12341M74L00-0D0 BEARING, CRANKSHAFT UPPER (STD,T:2) 5 Rp30.500 COLOR:GREEN
11-3 12341M74L00-0C0 BEARING, CRANKSHAFT UPPER (STD,T:2) 5 Rp30.500 COLOR:BROWN
11-2 12341M74L00-0B0 BEARING, CRANKSHAFT UPPER (STD,T:2) 5 Rp30.500 COLOR:PURPLE
12-1 12345M74L00-0A0 BEARING, CRANKSHAFT LOWER (STD,T:2) 5 Rp29.000 COLOR:PINK
12-10 12345-74L00-0EA
SUB: 12345M74L00-0EA		 BRG, CRK SHAFT LOWER (US:0.25,T:2.125) 5 Rp61.000 COLOR:RED/BRACK
12-9 12345-74L00-0DA
SUB: 12345M74L00-0DA		 BRG, CRK SHAFT LOWER (US:0.25,T:2.125) 5 Rp61.000 COLOR:RED/GREEN
12-8 12345-74L00-0CA
SUB: 12345M74L00-0CA		 BRG, CRK SHAFT LOWER (US:0.25,T:2.125) 5 Rp61.000 COLOR:RED/BROWN
12-7 12345-74L00-0BA
SUB: 12345M74L00-0BA		 BRG, CRK SHAFT LOWER (US:0.25,T:2.125) 5 Rp61.000 COLOR:RED/PURPLE
12-5 12345M74L00-0E0 BEARING, CRANKSHAFT LOWER (STD,T:2) 5 Rp30.000 COLOR:BLACK
12-4 12345M74L00-0D0 BEARING, CRANKSHAFT LOWER (STD,T:2) 5 Rp29.000 COLOR:GREEN
12-3 12345M74L00-0C0 BEARING, CRANKSHAFT LOWER (STD,T:2) 5 Rp29.000 COLOR:BROWN
12-2 12345M74L00-0B0 BEARING, CRANKSHAFT LOWER (STD,T:2) 5 Rp29.000 COLOR:PURPLE
12-6 12345-74L00-0AA
SUB: 12345M74L00-0AA		 BRG, CRK SHAFT LOWER (US:0.25,T:2.125) 5 Rp59.000 COLOR:RED/PINK
13-1 12351-58M00-000 BEARING, CRANK THRUST (STD,T:2.5) 2 Rp41.000
13-2 12351-58M00-012 BRG, CRANK THRUST (OS:0.125,T:2.563) 2 Rp62.000
14 09205-05006-000 SPRING PIN (5X12) 1 Rp13.500
15 12610-58M00-000 PULLEY, CRANKSHAFT 1 Rp1.249.500
16 12619-69G10-000 BOLT, CRANK PULLEY (12X37) 1 Rp102.500
17 17521-58M00-000 BELT, WATER PUMP 1 Rp195.500
18 12620-77M01-000
SUB: 12620M68K00-000		 FLYWHEEL 1 Rp766.000 5MT
19 12623-61J00-000
SUB: 12623-71C01-000		 BEARING, INPUT SHAFT 1 Rp39.500 5MT
20 09103-10719-000 BOLT (10X18.5) 6 Rp60.500 5MT
21 08341M31059-000 KEY 1 Rp4.500
22 11341M51K00-000 HOUSING, OIL SEAL 1 Rp73.000
23 11342-58M10-000 SEAL, CRANKSHAFT REAR OIL 1 Rp203.000
24 09103-06282-000 BOLT (6X25) 6 Rp16.500
25 04221-06129-000 PIN 2 Rp13.500
26 12631-54G11-000 SPROCKET, CRANKSHAFT TIMING 1 Rp439.500
27 16141-58M00-000 SEAL, CRANKSHAFT FRONT OIL 1 Rp97.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
