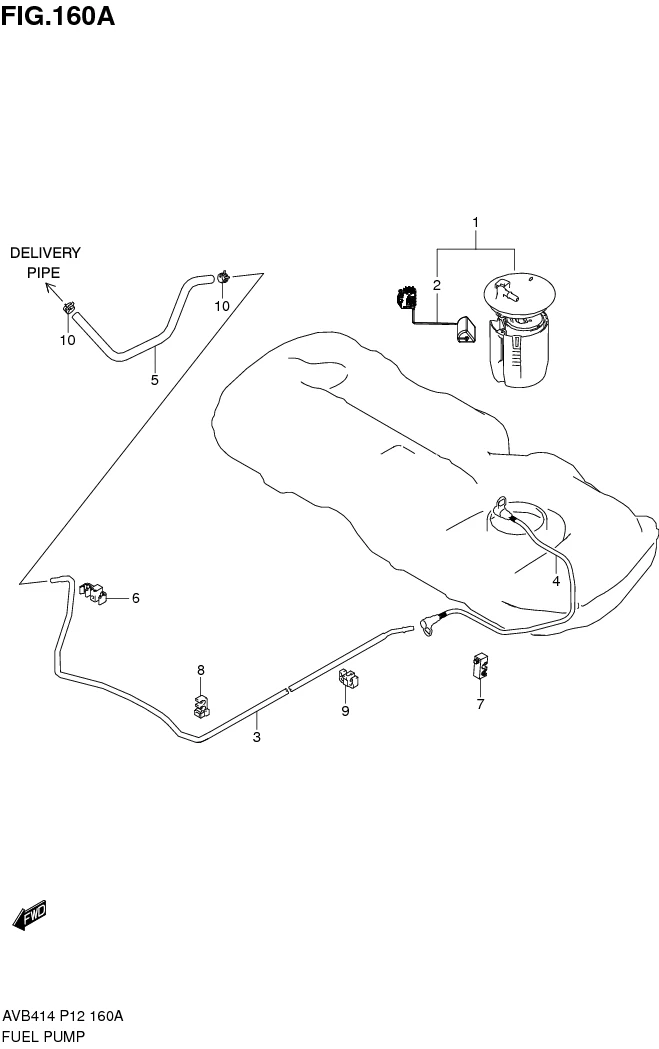

FIG.160A FUEL PUMP

FIG.160A FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-79P00-000 PUMP ASSY, FUEL 1 Rp3.398.500
2 34810-79P00-000 •GAUGE ASSY, FUEL SENDER 1 Rp445.500
3 15811-79P00-000 PIPE, FUEL FEED 1 Rp350.500
4 15812-79P00-000 PIPE, FUEL 1 Rp301.500
5 15815-79P00-000 HOSE, FUEL 1 Rp338.500
6 15882-71LA0-000 CLAMP, FUEL PIPE 1 Rp69.000
7 15883-58M00-000 CLAMP, FUEL PIPE 1 Rp28.500
8 15892-79P00-000 CLAMP, FUEL PIPE 1 Rp39.000
9 15893-79P00-000 CLAMP, FUEL PIPE 3 Rp36.000
10 09401-11431-000 CLIP 2 Rp10.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
