CIAZ

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTING (5MT)FIG.128B ENGINE MOUNTING (4AT)FIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.160A FUEL PUMPFIG.172A DELIVERY PIPE/FUEL INJECTORFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

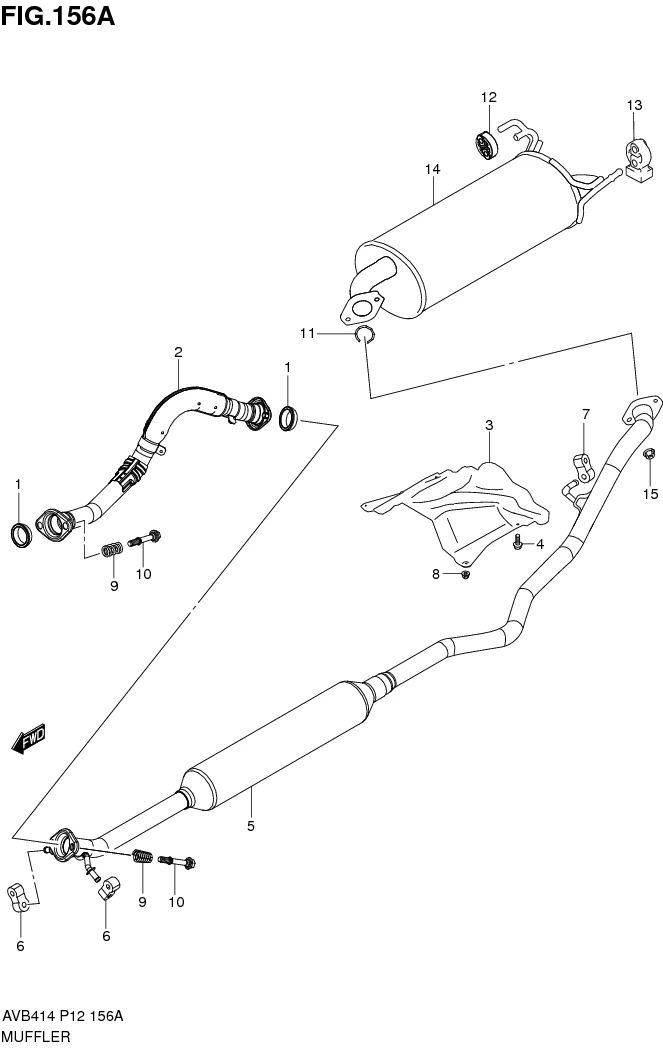

FIG.156A MUFFLER

FIG.156A MUFFLER
No No. Part Description Qty Price Per Pcs Remarks
1 14183-58M00-000 RING, SEAL EXH PIPE 2 Rp370.500
2 14190-58M00-000 PIPE, EXH 1 Rp1.671.000
3 14232M79M00-000 INSULATOR, PARKING CABLE HEAT 1 Rp172.500
4 14233-78M01-000 BOLT, HEAT INSULATOR 2 Rp32.500
5 14250-79P00-000 PIPE, EXH CENTER 1 Rp4.592.500
6 14281-58M00-000 MOUNTING, MUFFLER 2 Rp190.500
7 14281-78M00-000 MOUNTING, MUF 1 Rp138.000
8 14357-72J00-000 NUT, HEAT INSULATOR 2 Rp14.500
9 14492-58M00-000 SPRING, EXH PIPE 4 Rp118.500
10 09119-10095-000 BOLT (10X65) 4 Rp88.000
11 14182M79F11-000 GASKET, MUFFLER 1 Rp14.000
12 14281-58M10-000 MOUNTING, MUFFLER 1 Rp115.000
13 14281-78M10-000 MOUNTING, MUFFLER 1 Rp247.500
14 14300-79P00-000 MUFFLER 1 Rp4.486.500
15 09159M10049-000
SUB: 09159-10102-000		 NUT 2 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
