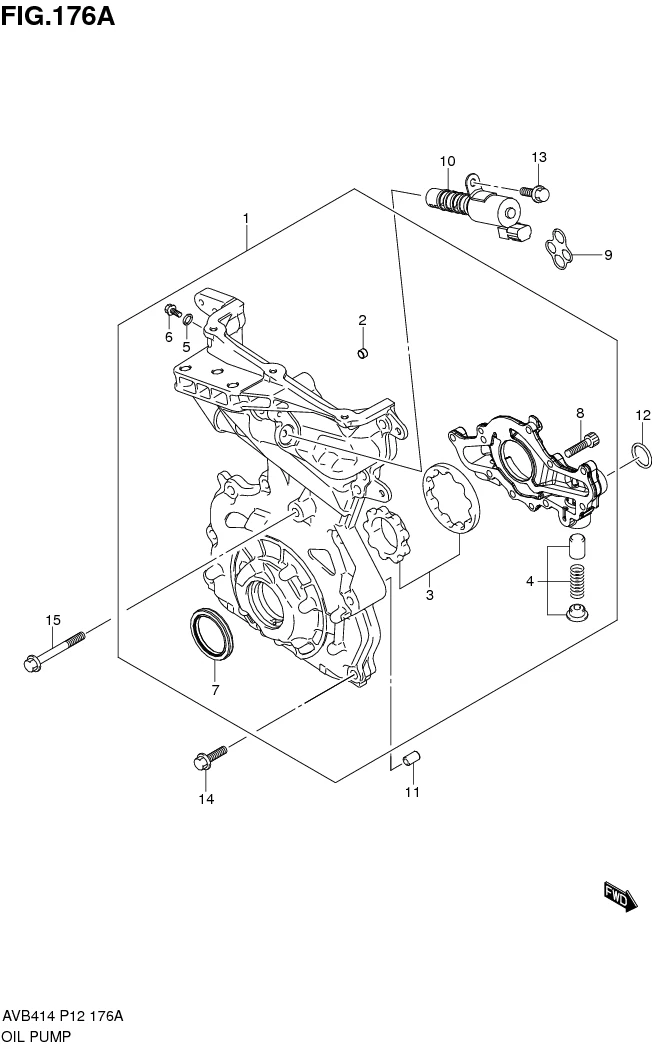

FIG.176A OIL PUMP

FIG.176A OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16100-79PB0-000 PUMP ASSY, OIL 1 Rp4.380.500
2 16116-69GE0-000 •FILTER, OIL GALLERY 1 Rp66.000
3 16130-79PB0-000 •ROTOR SET, OIL PUMP 1 Rp635.500
4 16151-51K00-000
SUB: 16150-51K01-000		 •VALVE SET, OIL PUMP RELIEF 1 Rp22.000
5 09168-08016-000
SUB: 09168M08016-000		 •GASKET (8.2X14X1) 1 Rp25.000
6 01550-0816A-000 •BOLT 1 Rp6.000
7 16141-58M00-000 •SEAL, CRANKSHAFT FRONT OIL 1 Rp97.500
8 07130-0625A-000 •BOLT 9 Rp3.500
9 16118-58MB0-000 O RING, OCV 1 Rp126.500
10 16550-58MA0-000 VALVE, OIL CONTROL 1 Rp695.500
11 09206-06005-000 PIN (4X6X11) 2 Rp14.500
12 16119-58M00-000 O RING, OIL GALLERY 1 Rp5.500
13 01550M0612A-000 BOLT 1 Rp5.000
14 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 13 Rp4.000
15 01550-0885A-000 BOLT 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
