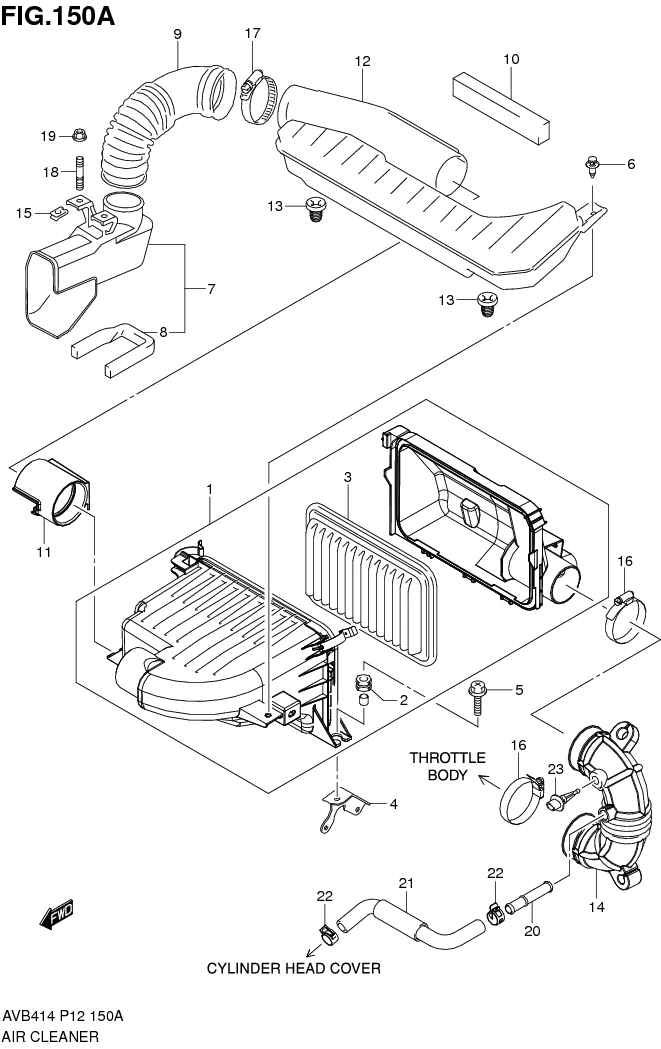

FIG.150A AIR CLEANER

FIG.150A AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700-58M10-000 CLEANER ASSY, AIR 1 Rp735.000
2 13723-58M00-000 •CUSHION, AIR CLEANER 2 Rp21.000
3 13780-58M00-000 •ELEMENT, AIR CLEANER 1 Rp177.500
4 13733-83P00-000 BRACKET, AIR CLNR 1 Rp24.000
5 09136-06141-000 SCREW (6X25) 2 Rp17.000
6 09409M08006-000
SUB: 09409M08L01-000		 CLIP 1 Rp5.000
7 13765-79M00-000 PIPE, AIR SUCTION 1 Rp158.500
8 13799-79M00-000 •SEAL, AIR SUCT PIPE 1 Rp60.000
9 13766-79M00-000 HOSE, AIR SUCTION 1 Rp210.000
10 13799-71L00-000 SEAL, RESONATOR 1 Rp48.500
11 13825-71L00-000
SUB: 13825M71L00-000		 JOINT, AIR INLET PIPE 1 Rp23.000
12 13870-79P00-000 PIPE, AIR CLNR SUCT 1 Rp347.500
13 13871-73K00-000 GROMMET, AIR INTK 2 Rp22.500
14 13881-58M10-000 HOSE, AIR CLNR OUT 1 Rp483.000
15 08315-11069-000
SUB: 09148M06022-000		 NUT 2 Rp2.500
16 09402-70503-000
SUB: 09402-69511-000		 CLAMP 2 Rp91.500
17 09402-70503-000
SUB: 09402-69511-000		 CLAMP 1 Rp91.500
18 01421-0616A-000 STUD BOLT 2 Rp3.500
19 08316-1006A-000 NUT 2 Rp2.000
20 11190-58M10-000 UNION, BREATHER 1 Rp247.500
21 11191-58M00-000 HOSE, BREATHER 1 Rp190.000
22 09401-18L06-000 CLIP 2 Rp20.500
23 13650-84M00-000 SENSOR, INLET AIR TEMP 1 Rp575.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
