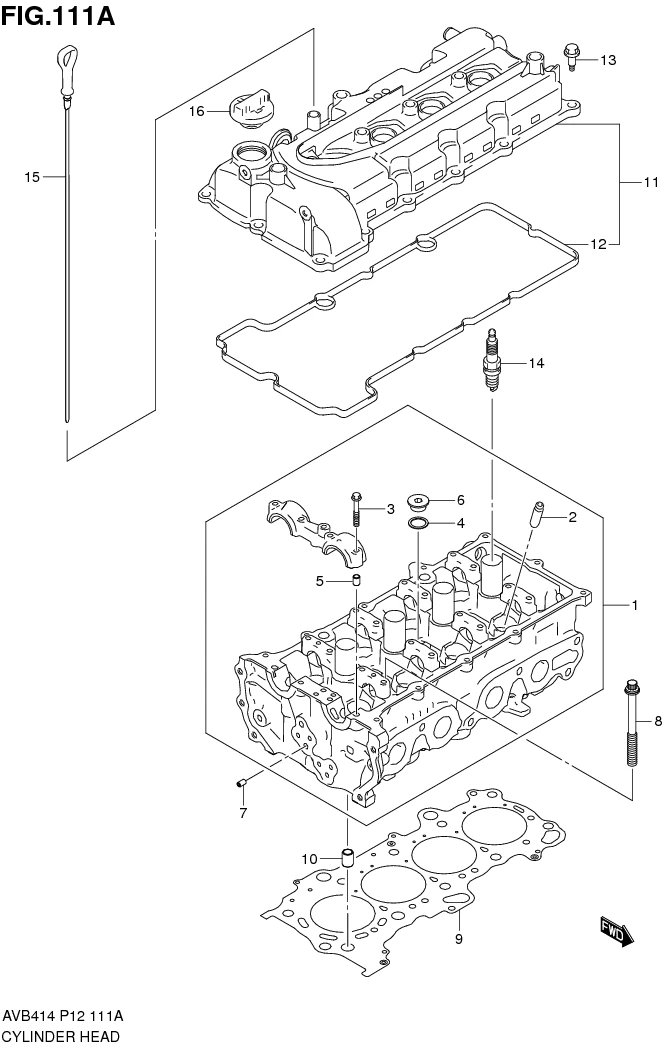

FIG.111A CYLINDER HEAD

FIG.111A CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11100-79PB0-000 HEAD ASSY, CYLINDER 1 Rp40.975.000
2 11115-58M00-001 •GUIDE, VALVE 16 Rp265.500
3 11128-58M00-000 •BOLT, CAMSHAFT HOUSING 21 Rp26.500
4 11216-77E00-000 •GASKET (18X22X2) 3 Rp21.000
5 09206-08010-000 •PIN 16 Rp19.000
6 09248-18011-000 •PLUG (18X8) 3 Rp38.000
7 11112-53A00-000 PLUG, OIL VENTURI 1 Rp31.500
8 11117-69J00-000 BOLT, CYLINDER HEAD 10 Rp64.500
9 11141-79P00-000 GASKET, CYLINDER HEAD 1 Rp791.500
10 09206-13020-000 PIN (10.4X13X18) 2 Rp13.500
11 11170-79PB0-000 COVER ASSY, CYLINDER HEAD 1 Rp572.500
12 11189-79PB0-000 •GASKET, CYLINDER HEAD COVER 1 Rp123.500
13 11178-69L00-000 BOLT, CYLINDER HEAD COVER 14 Rp23.000
14 09482-00653-000 SPARK PLUG (NGK,LKR6F-10) 4 Rp41.000
15 16910M68K02-000
SUB: 16910M68K01-000		 GAUGE, OIL LEVEL 1 Rp29.000
16 16920-50M01-000 CAP, OIL FILLER 1 Rp114.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
