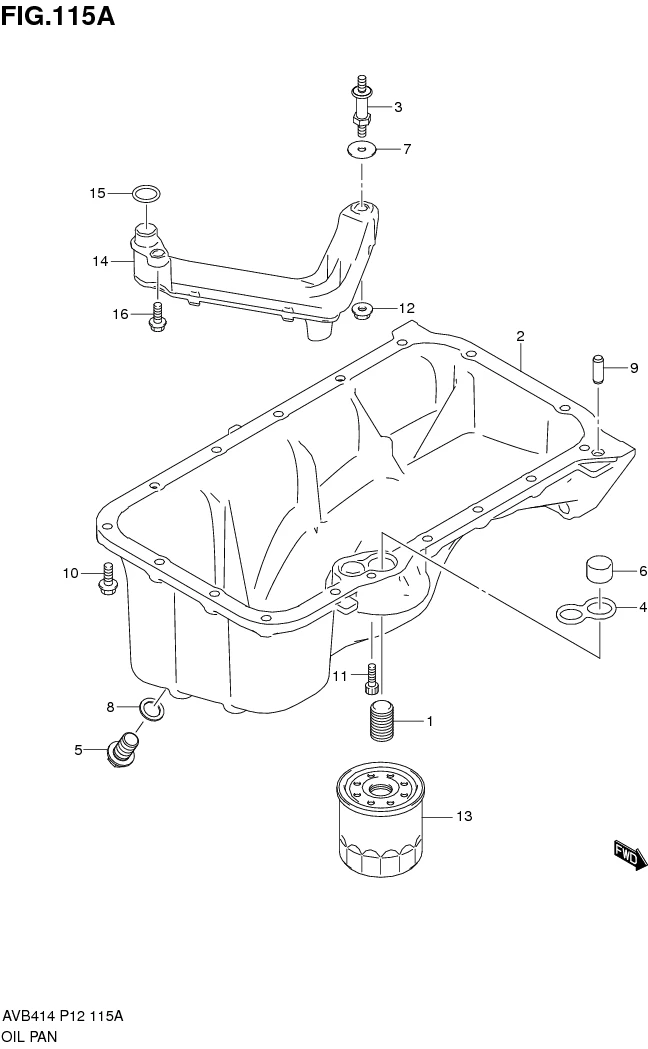

FIG.115A OIL PAN

FIG.115A OIL PAN
No No. Part Description Qty Price Per Pcs Remarks
1 11241-68K00-000
SUB: 11241B68K00N000		 STAND, OIL FILTER 1 Rp15.000
2 11511-69L00-000 PAN, OIL 1 Rp2.176.500
3 11515-51K03-000 BOLT, OIL PAN BAFFLE STUD 1 Rp54.000
4 11518-58M00-000 O RING, OIL PAN 1 Rp23.000
5 11518-63J10-000
SUB: 11518B63J10N000		 PLUG, OIL DRAIN 1 Rp9.500
6 16114M69J00-000
SUB: 16114B69J00N000		 PIN, OIL PAN DOWEL 1 Rp14.500
7 DISCONTINUE
SUB: 09160-06114-000		 WASHER (6.5X24X1.2) 1 -
8 09168-14015-000
SUB: 09168M14015-000		 GASKET (14X20X1.5) 1 Rp7.500
9 09202-08004-000 PIN (8X23) 1 Rp6.500
10 DISCONTINUE
SUB: 01550-0625A-000		 BOLT 16 -
11 07130-0625A-000 BOLT 1 Rp3.500
12 08316-1006A-000 NUT 1 Rp2.000
13 16510-61J00-000
SUB: 16510-58M00-000		 FILTER ASSY, OIL 1 Rp37.000
14 16520-69L00-000 STRAINER, OIL PUMP 1 Rp316.000
15 51181-37B00-000
SUB: 09280B17002N000		 O RING (D:2.4,ID:16.8) 1 Rp5.000
16 07120-0620A-000 BOLT 1 Rp22.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
